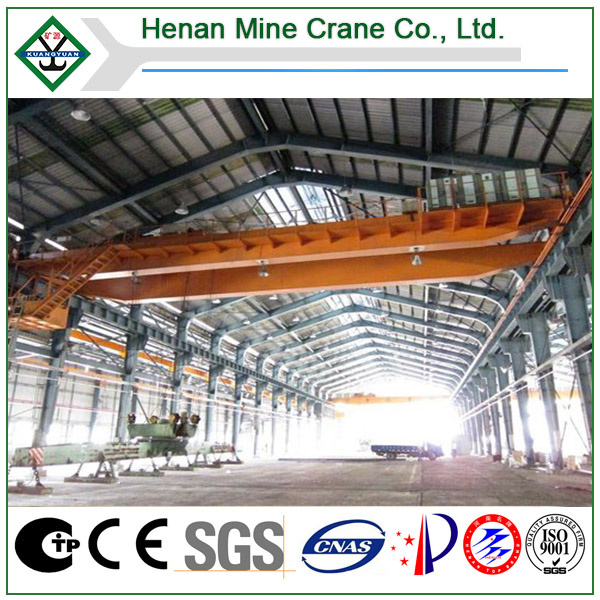

10ton China Made Double Beam Bridge Crane for Workshop
| Price: |
US $ 10000-100000/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
10ton China Made Double Beam Bridge Crane For Workshop
Double girder bridge crane is used for handling and transferring heavy loads from one position to another, thus it is used in many areas of industry such as in automobile plants, shipyards, and warehouses in stations, ports and mining enterprises. The lifting capacity is from 5t to 550t, span is 10.5~31.5m. According to users' requirements, it can be: Overhead crane with hook, overhead crane with grab, overhead crane with magnet, overhead crane with magnet and carrier-beam.
The crane is composed of bridge frame, trolley, cart operating mechanism and electric equipment. Trolley is equipped with two hoisting mechanisms. Both of the main and aux. Hoisting mechanisms adopt internationally renowned brand. The gearbox is mounted inside of the drum which has the advantages of less occupying space, impact structure, easy maintenance, less weight, high reliability, stable transmission, big outlet torque, lower noise, free of maintenance etc.
It is operated in driver's cabin. There are open and closed styles for driver's cabin, the cabin is divided into open-style and closed style. It can be installed on the left or right according to actual conditions. The operator can enter the cabin from one side, rear or top, which depends on user's different requirements.
Safety
Overload protection,
Main lifting motor with thermal protection,
Hooks with latch,
Rubber buffers
Protective earthing,
Crane switch and travel end switch,
Emergency switch can stop all movement when any dangerous happened,
Sub-assemblies characteristic are tested before assemly.
All cranes must be pre-assmebled and tested before leaving factory and offer the certification of test.
Design and construction rules:
All the standards which is required for the crane is the Chinese standard.
Painting:
Primer and finishing paint
Color: According to your demand.
Average thickness: About 100 microns.
Provide us with accurate measurement requirements upon ordering and we can offer the design and manufacture of non-standard products of various hoisting capacities and for various spans according to your special requirements.
| QD double beam overhead crane |
| Lifting Capacity T | 5 | 10 | 16/3.2 | 20/5 | 25/5 | 32/5 | 50/10 | 400/80 |
| Span M | 10.5-31.5 | 28 |
| Lifting height M | Main Hook | 16 | 16 | 16 | 12 | 12/11.0 | 16 | 12 | 22 |
| Aux Hook |
|
| 18 | 11 | 14/13 | 18 | 16 | 24 |
| Speed M/min | hoist | Main hook | A5 | 12.5 | 8.5 | 7.9 | 7.2 | 7.3 | 7.8 | 5.9 | 2.92 |
| A6 | 15.5 | 13.3 | 13 | 9.7 | 9.8 | 9.5 | 7.8 |
|
| Aux hook |
|
|
| 14.5 | 12.7 | 12.7 | 19.5 | 13.2 | 9.24 |
| Trolley travelling | 37.2 | 43.8 | 44.6 | 44.6 | 37 | 42.4 | 38.5 | 37.2 |
| Bridge travelling | A5 | 89.8 /92.3 | 89.8-91.9 | 84.7-87.6 | 84.7/ 87.6 | 85.5/88 | 74.2-87.6 | 74.6 | 25.9 |
| A6 | 116.2/ 117.4 | 112.5-116.8 | 112.5 | 112.5/ 101.4 | 112/ 101.4 | 86.8-101.4 | 87.3 |
|
| Weight Kg | Trolley | A5 | 2126 | 3424 | 6227 | 6856 | 7185 | 10877 | 15425 | 142.3 |
| A6 | 2224 | 3562 | 6427 | 7180 | 7856 | 11652 | 15765 |
|
| Total Weight | A5 | 12715-31405 | 14270-34405 | 19128-39428 | 19947-41497 | 20795-42796 | 26901-52748 | 35317-64880 | 359000 |
| A6 | 12991-31596 | 14719-34699 | 20045-41315 | 20984-44225 | 22632-16324 | 28061-55272 | 36075-67242 |
|
| Max Wheel Load KN | A5 | 74-125 | 102-160 | 141-205 | 163-231 | 185-255 | 237-327 | 333-450 | 7500 |
| A6 | 75-126 | 104-162 | 145-211 | 167-239 | 189-263 | 242-335 | 336-457 |
|
| Rail recommended | Trolley | 15kg/m | 43kg/m |
| Bridge | 43kg/m | QU70 | QU80 | QU120 |
| Power Source | According to your demand |
| Prod Model: |
QD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
5~400/80t |
| Span: |
10.5~31.5m |
| Lifting Height: |
6~30m |
| GB/T 24001-2004 Idt ISO140012004: |
Pass |
| GB/T 19001-2000 Idt ISO 9001: 2000: |
Pass |
| Weight Overload Limiter: |
Include |
| Crane Traveling Limited Switch: |
Include |
| Color: |
According to Your Requirements |
| Working Duty: |
A5 |
| Voltage: |
220V / 380V / 415V |
| Type: |
Double Beam Crane |
| Application: |
Widely |
| Power Source: |
Electric |
| Sling Type: |
Wire Rope |
| Certification: |
SGS GOST |
| Condition: |
New |
We are a shareholding industry enterprise, engaged in the manufacture and sale of "Kuangyuan" brand electric hoists, single or double beam overhead cranes, gantry cranes, grab cranes, foundry cranes, anti-explosion cranes and related spare parts. We have gotten production, installation, modification and maintenance licenses issued by the General Administration of Quality Supervision, Inspection and Quarantine, and is a director-lever member of China Association of hoisting Industry and China Association of Heavy Equipment Industry.
We have more than 2700 employees, cover 680, 000 square meters and hold RMB380 million capital and over 380 branches around the world. The 1200-plus sets of equipment enable us to finish independently over 20 technological flows, including lathing, milling, planning and grinding. More than 180 medium and senior technical staff members are responsible for the design and production guidance of whole products. We have passed ISO9001: 2000 international quality control standard, ISO14001: 1996 environment and ISO9001: 2001 health and safety standard. We have a perfect quality-control system, a strict management system, strong production capabilities and advanced testing measures to ensure the high production and high quality.
Our company does continually investment, and all kinds of economic targets are increased by 30% annually. Our products are very popular in the market, and have been sold well in more than 30 provinces and cities in China, for instance, our single beam overhead crane has scored No. 1 on quantity for continuous 3 years in Chinese market. Meanwhile, we have exported our cranes to Australia, Vietnam, India, Thailand, the United States, Pakistan, Egypt, Bangladesh, the Philippines, Malaysia, Singapore, Malta, Turkmenistan, Saudi Arabia, Peru, Ethiopia and other countries and regions.
Every year, we manufacture and sell more than 3500 sets of double beam and gantry cranes, more than 19000 sets of single beam cranes, more than 23000 sets of the single and double-beam electric hoists and related accessories. Our output and economic benefits per capital are at the first head in the same industry. Our company has won more than 120 honors, such as "Advanced Science and Technology Enterprise", "Top Trademark in China", "Top-10 Brand of Crane in China", "Henan Famous Goods", "Henan Famous Trademark", "Quality Management Qualified Enterprise", "High Credit Enterprise", "Enterprise without Counterfeit, Fraud or Unjust Competition", "Quality Reliable Company", "Advanced Science and Technology company" and "Famous Brand on CCTV Recommended List".
Our company is a high & new technology enterprise in Henan Province, through continuous technology innovation, developing new products, improving the technological content of products to meet the market demands for higher quality hoisting equipments. On the basis of the digestion and absorption of advanced crane design and manufacturing technology in China and abroad, we make the great effort to redesign of the electric hoists and single and double beam cranes, keep pace with the other international similar products company and have occupied the commanding location of the market.
We are in the Central Plains of China, with advantageous geography and humanities, having the scientific management system, automatic office system, huge production capacity, advanced inspection ways and stronger sales nets, then producing the "Kuangyuan" brand series products which have high quality and reasonable prices to serve the markets at home and abroad. The "Kuangyuan" people have a decision to make our company be first class in the crane industry in China, making the great effort to use our wisdom and ability to write out the most brilliant Chinese nation' S industry flying chapter!
Quality makes the brand, integrity weaves bright future and your ideal is our pursuit. We hope cooperate with all kinds of trade friends and create large brilliance together!
