Product Specifications
| Prod Model: |
PEDB-400 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Carving Material: |
Stainless Steel |
| Standard Marking Area: |
110mm * 110mm |
| Weight: |
60kg |
| Laser Power: |
10W, 20W |
| Working Table: |
Manuel up and Down Aluminium Alloy Working Table |
| Size: |
0.05cbm |
| Fiber Laser Device Lifetime: |
100, 000 |
| Optional: |
175X175mm |
| Laser Device: |
Fiber Laser Device |
Product Description

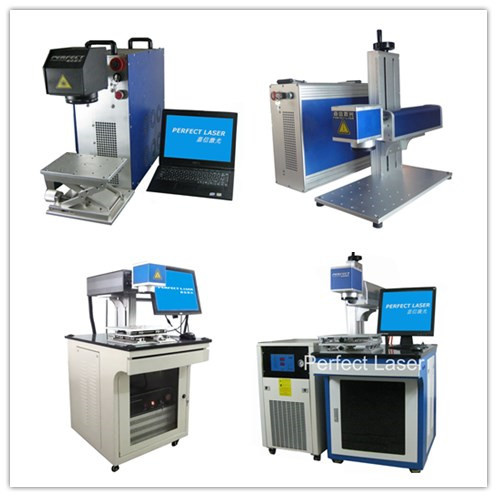

10W 20W Fiber Laser Marking Machine for Metal and Nonmetal (PEDB-400)
Product description
1. Perfect laser's fiber laser from Germany ipg company with 100, 000 hours working time.
2. This laser marker widely used for plastic key-press "night and day" mark, online electric parts and chips mark, also colorful paper, food package print.
3. Laser wavelength: 1064nm ~ 1150nm.
4. Power: 10W/12W/20W.
5. Frequency: < = 50kHz.
6. Pulse width: < = 60ns.
7. Mode: Single mode.
8. Cool style: Air cooling, so fiber laser marker's volume is much smaller
Fiber laser marking machine application filed:
1. Electronic and communication products, IC products, electric lines, cable, computer components and the electric appliance.
2. Every kind of accurate parts, hardware tools, instrument appliance aviation and spaceflight appliance.
3. Jewelry, garments, instruments, gifts, office usage things, brand scutcheon, sanitation clean appliance.
4. Dishware, food, drinking, smocking and alcohol, etc.
5. Laser engraving machine, laser cutting machine, laser welding machine and other laser equipment also fall within our business scope.
Fiber laser marking machine performance features:
1. Without water cooling device, the volume is small & precise, easy to install.
2. Exempt-maintenance, with reliable working stability.
3. No cost-material, low-power, more economized and environmental.
4. The marking effect is more excellent, this type of laser marking machine has the advantages that no any other type can instead, which engaged in the field by demanding the more excellent marking depth, sleekly and the accuracy.
Do you need help understanding or using the system?
Do you have problems manufacturing your product?
Feel free to tell us your ideas, needs, suggestions, complaints, questions or anything at all you want to talk to us about.
We are only too happy to help in any way we can.
|
Machine Type |
Fiber Laser Marking Machine |
|
Laser Sourse |
PEDB-400 10W |
PEDB-400 20W |
|
IPG Series |
Pulsed, High Energy Ytterbium Fiber Lasers |
|
Mode of operation |
Pulsed |
|
Polarization |
random |
|
Q-switched operation |
|
Output power adjustment range |
10%-100% |
|
Nominal average output power W |
10W |
20W |
|
Central emission wavelength |
1060-1070 nm |
|
Emission Bandwidth (FWHM) |
< 10 nm |
|
Long-term average power instability |
< 5% |
|
Pulse width, (FWHM) |
100 ns |
|
Laser switching ON time |
180 μ sec |
|
Laser switching OFF time |
180 μ sec |
|
Pulse Repetition Rate* kHz |
20-80 kHz |
|
Energy per pulse (PRR = 20 kHz) |
0.95 mJ |
|
Typical beam quality, M2 |
< 1.8 |
|
Output fiber delivery length |
3m |
|
Operating voltage |
220V |
|
Max. Power consumption |
600W |
