Product Specifications
| Prod Model: |
S3000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Hyper LED Light Source |
| Power Consumption: |
15W Max |
| Brand: |
Hecho |
| OEM & ODM: |
Yes |
| Light Source: |
LED |
| Material: |
Alloy |
| Certification: |
ISO9001 |
| Type: |
Fiber Illuminator |
Product Description

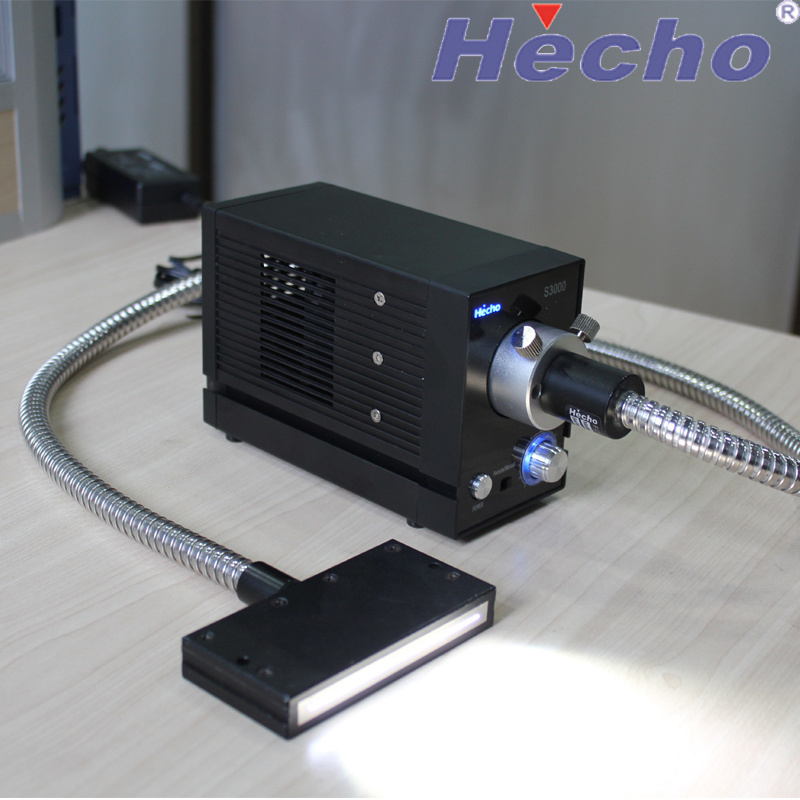

High Power Output LED Cold Light Source S3000 (With OEM & ODM service)
Function of Cold light source:
1) higher power output, body cooling design, longer life
2) higher brightness LED chip, specail focus system
3) power save, less than 15W power consumption
4) AC/DC power supply
5) smaller body, side fix slot design
Technical specification of Hyper LED Light Source S3000:
| Model | S3000 | S3000W |
| Item | Hyper LED Light Source |
| Drive way | Constant-current system |
| Power supply | AC96-240V power adaptor, 50/60Hz / DC 24V 1.5A |
| Power consumption | 15W max |
| Dimming control | Continuous dimming/ 0-5V Analog control / PWM 20Hz 5V |
| *Av. Illuminance (lx) | Approx. 143,000 Lx | Approx. 114,000 Lx |
| Color temperature | 5000K-8300K | 2600K-3700K |
| Av. LED life | Approx. 30,000 hours |
| Cooling system | Boday + high spped fan |
| Operating condition | 0ºC ~ +45ºC/20%~80%RH |
| Installation | Horizontal installation on the rubber supports at the bottom of the unit or side T slot |
| Net weight | 840g |
| Size | 186 (L) x 72(w) x 104(h) mm |
* The average luminance is at 50mm from the fiber output at maximum volume when a Hecho standard light guide
(GOFC-S8H-1000-F1) is attached. |
|
We can make your Logo on our Cold light source.
If you have interesting, please feel free to contact us.
Nanjing Hecho Technology Co., Ltd is a dedicated OEM manufacturer of high quality fiber optic products and subassemblies for industrial, medical and scientific applications since 2005.
Advantages Hecho products:
Professional production of various specifications to meet different design requirements;
Professional technical services to provide system solutions motion;
High quality products, reduce customer operating costs;
Adhering to the spirit of continuous pursuit of perfect quality, dedication and your sincere cooperation.
Hecho products includes:
1. Optical fiber cold light source: High power LED cold light source, halogen lamp cold light source.
2. Optical fiber bundle: Single tube light guide, dual tube light guide, multi tube light guide, ring light guide, line light guide, etc...
3. Machine vision, remote work lighting point source, and obtained the patent of utility model short tail fiber cold light source, high brightness, high stability, convenient installation.
4. Optical fiber sensor series, including the thread connection of optical fiber sensor, cylinder connected optical fiber sensor, integrated support fiber optic sensor, flat thin optical fiber sensor, heat-resistant optical fiber sensor, liquid level detection optical fiber sensor and so on which can prefect match with the Japan's MITSUBISHI, Toray, Asahi Kasei and Schott of Germany and other international brands of optical fiber, optical fiber cable.
5. Spectral detection of optical fiber and medical laser fiber etc...
