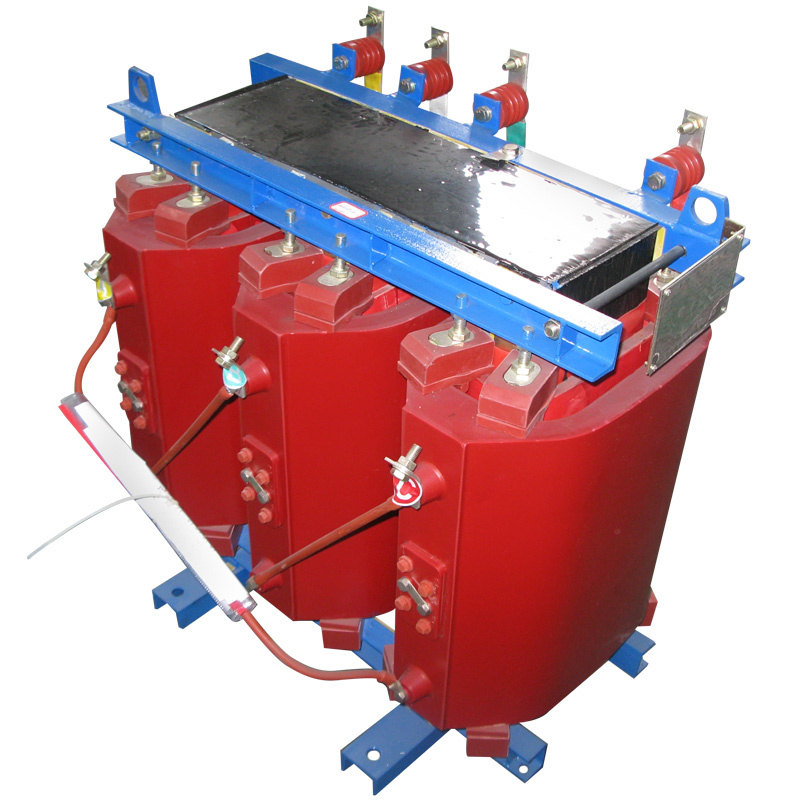

Product Specifications
| Prod Model: |
SCB11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Application: |
Instrument |
Product Description
1.？Rated？voltage:？？？6.3kV,10kV,11kV,13.2kV,13.8kV,15kV,？20KV,？22KV,？33KV,35KV
？
2.？Rated？power:？？5kva？~？25000kva
？
3.？Stardard:？？？？？？？IEC60076,GB1094-1996？
？
4.？Frequency:？？？？？？50HZ？/60HZ
？
5.？Vector？group:？？？？Dyn11,？Yyn0,？Ynd11,？or？others
？
6.？Cooling:？？？？？？？？ONAN/？ONAF/？OFAF
？
7.？Tap？changer:？？？？3？levels;？5？levels;？7？levels;？13？levels;？17？levels
？
8.？Rating？plate::？？Yes？(JSM？brand？or？Customer？brand)
？
9.？Corrugated？refrigeration？panels:？Yes？(？Four？sides？of？the？transformer？shell)
？
10.？Parts:？？？？？？？？？1)Oil？draining？valve？2)Oil？level？indicator？3)Thermometer？
？
？
？About？Our？Company:
？
？1.？？26 years'？manufacturing？experience？with？three？subsidiaries
？
2.？？Won？tenders？aboard
？
3.？？IEC？60076？&？ISO？certificate
？
4.？？OEM？/？ODM
？
5.？？Competitive？price？with？100%？Cu？winding
？
6.？？Production？capacity:？10,000,000？kVA？per？year
？
？？
REFERENCES？ISO？1461:？Hot？dip？galvanized？coatings？on？fabricated？iron？and？steel？articles？？Specifications？and？test？methods.IEC？60076:？Power？transformers.IEC？60044:？Instrument？transformers.IEC？60296:？Specification？for？unused？mineral？insulating？oil？for？transformers？and？switchgear.IEC？60354:？Loading？guide？for？oil？？immersed？power？transformers.IEC？60214:？Tap-changers？-？Part？1:？Performance？requirements？and？test？methods,？Part？2:？Application？guide.IEC？60512:？Connectors？for？electronic？equipment.？ROUTINE？TEST？to？IEC？60076？(to？be？done？during？acceptance？testing？at？factory)？？Measurement？of？winding？resistance？Ratio？test？Vector？group？Separate？source？voltage？withstand？test？Induced？over-voltage？Insulation？resistance？Oil？leakage？test？on？fully？assembled？transformer？for？12？hours？Measurement？of？impedance？voltage？Magnetic？balance？Measurement？of？no-load？loss？and？current？Measurement？of？load？loss？(at？normal？&？extreme？taps)？Tests？on？on-load？tap-changer？Tests？on？on-load？tap-changer？remote？control？panel？Efficiency？at？50%,？75%,？100%？loading？at？unity？p.f？and？rated？terminal？voltage？(Corrected？to？75C)？Lightning？impulse？withstand？test
？
Type？Tests？to？IEC？60076？(to？be？done？during？acceptance？testing？at？factory)？？Temperature？rise？test？？To？be？performed？on？one？unit？during？acceptance？testing.Lightning？Impulse？Withstand？Test？is？already？listed？under？Routine？Tests？as？per？IEC？60076.
？
|
Rated Capacity/kVA |
Combination of Various Rated voltages |
Connection No. |
No-load loss/W |
Load loss/W |
No-load current/% |
Short circuit impedance/% |
|
HV/kV |
Taping range/% |
LV/kV |
|
10 |
11
10.5
10
6.3
6
|
±5
±2×2.5
|
0.4
|
yyno
Dyn11
|
121 |
290 |
3.8 |
4
|
|
20 |
153 |
565 |
3.3 |
|
30 |
176 |
670 |
2.5 |
|
50 |
243 |
896 |
2.0 |
|
63 |
314 |
1150 |
2.0 |
|
80 |
333 |
1311 |
2.0 |
|
100 |
360 |
1492 |
1.9 |
|
125 |
423 |
1758 |
1.7 |
|
160 |
491 |
2023 |
1.7 |
|
200 |
563 |
2403 |
1.5 |
|
250 |
648 |
2622 |
1.5 |
|
315 |
792 |
3297 |
1.3 |
|
400 |
878 |
3791 |
1.3 |
|
500 |
1044 |
4636 |
1.3 |
|
630 |
1211 |
5577 |
1.1 |
|
800 |
1444 |
6607 |
1.1 |
6 |
|
1000 |
1593 |
7724 |
1.0 |
|
1250 |
1881 |
9206 |
1.0 |
|
1600 |
2205 |
11140 |
1.0 |
|
2000 |
2988 |
13730 |
0.9 |
|
2500 |
3600 |
16310 |
0.8 |
