Product Specifications
| Prod Model: |
HS110-B |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engine Type: |
4-Stroke |
| Displacement: |
51-125CC |
| Type: |

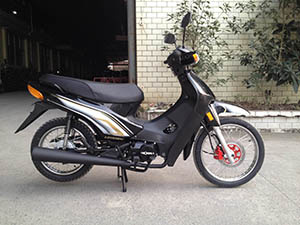

Cub Motorcycle |
| Condition: |
New |
| Fuel: |
Gas / Diesel |
Product Description
Technical
Engine
Engine Type: Single cylinder, wind-cooled, four stroke,
Displacement (ml): 107
Bore X Stroke (mm): 52.4 x49.5
Compression Ratio: 9.1: 1
Max. Power (kw/r/min) 5.0/8000
Max. Torque (N. M/r/min): 6.7/5500-6000
Max. Speed (Km/h): 75
Lubrication: Pressure, splash
Clutch Type: Multiplate wet clutch, manual
Ignition: CDI
Starting System: Electric&Kick start
Transmission System: Chain drive
CHASSIS
Front Brake: Drum brake
Rear Brake: Drum brake
Front Tire: 2.50-17
Rear Tire: 2.75-17
Wheels Spoke
Battery: 12V/5Ah
DIMENSIONS
L X W X H (mm): 1900*670*1070
Seat Height (mm): 750
Wheelbase (mm): 1210
Min. Ground Clearance (mm): 120
Max. Permissionable Weight (kg): 150
Rider Capacity: 2 Person
Dry. Weigth (kg): 90
Engine Oil (L): 0.9
Fuel Tank Capacity (L): 4.2
Others
Packing Weight (kg): 105
Units Per 40ft HC 120
Chongqing Hensim Group Co., Ltd. is the leading manufacturer of motorcycles, engines and generators in China. A fully privately-owned enterprise and with 50 years of combined experience in motorcycle industry, the company is passionate for designing and manufacturing advanced technology products with unsurpassed quality and high performance to the world.
The company was found in September 1998 with the core values have been the value every individual, value every second, value every product, and value every detail. We always believe that good business and ethics go hand-in-hand and the name of Hensim means persist in a goal to achieve success. In May 2003, the company had been awarded for keeping all the promise made in their contracts by the Chongqing Industrial and Commercial Administration Bureau.
Hensim is determined to be the leader in the motorcycle industry in China and committed the best quality of our products. The company has eight main factories with complete production assembly lines, employed more than 1, 500 highly qualified professional staff members and well trained workers. The Hensim brand ATVs, off-road bikes, go carts, generators etc. Cover six series, sixty models and five hundreds of different types. All of them are well known and received high reputation all over the world. Our products bring the value to peoples lives through their performances, characters and rugged reliabilities. The customers needs become a priority for the company to develop our products at all levels.
The company manufactures and distributes a wide array of products to cater for the diverse needs of the world communities and a multitude of applications. We have exported 80% of our products to USA, Canada, South Africa and many Asian countries and our overseas market are still growing. We are always looking at the ways in which we can make our wide range of products as much better as possible. Within the next five years, Hensim plans to reach their goal of entering the top ten motorcycle manufacturers in the world. Hensim still has a long road ahead, yet we are full of confidence---we will do it, we can do it!
