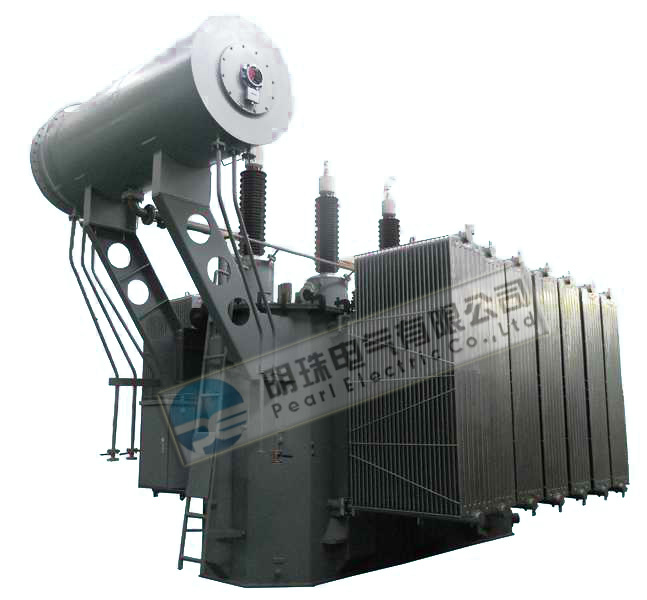

110KV Class Oil-Immersed Power Transformer

Name: 110KV Class Oil-Immersed Power Transformer
Brand: china-manufacturer-directory.com
SKU: 665186942
Availability: InStock
Rating: 4.6 (30 reviews)

Supplier:	Pearl Electric Co., Ltd.
Price:	US $ 1000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	10kv~220kv, SZ11, S11, SZ9, SZ11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	6300~63000kVA or Customized
Rated H. V.:	110/121kv or Customized
Rated L. V.:	6.6/10.5kv or Customized
Impedance:	10.5% or Customized
Reference Standards:	Iec60076 Power Transformer
Model:	110kv Oil-Immsersed Power Transformer
Application:	Audio
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Oil-immersed Type Transformer
Winding Type:	Two-winding Transformer
Certification:	Kema CE
Brand:	PE

Product Description

Pearl Electric offers four types of 110kV class oil-immersed power transformer. The product are designed and manufactured according to customer's specifications. To know more about the product, please contact us. Product catalogs are available upon requirements.

Categories:
By winding number	110kV class 3-phase two-winding power transformer
	110kV class 3-phase three-winding power transformer
By tap-changing	110kV class on-load tap-changing power transformer
	110kV class off-load tap-changing power transformer
Notes: Pearl Electric boasts an experienced R&D team of 65 talented engineers, whose main duties are to design the contracted and customized products upon customer's special requirements. With this team of engineers, Pearl Electric is capable of respond to customer's inquiry at first time and also ensures the accurate product quotation. Due to different power grid system in local countries, most oversea transformers must be designed and calculated before final accurate quotation. With this team of professional engineers, Pearl Electric could give a quick and accurate quotation, thus to meet end-user's application requirements. Also due to the above reasons and during your inquiry, please try to give product specifications as detailed as possible, thus to ensure the actual product design suit to your practical requirements.
Features & Advantages Core: The core is manufactured with high quality cold rolled grain-oriented silicon steel of high magnetic conductivity, and 45° mitring and steps overlapping structure is used for core production, thus to effectively reduce no-load loss and no-load current. HV winding: HV winding is manufactured with high quality copper conductor, adopting optimized structure to improve electric distribution. Lightning impulse wave process is carried out for calculation and analysis, thus to improve transformer's anti-lightning impulse capability. LVwinding: LV winding is manufactured with high quality foil conductor, so the ampere-turn balance is excellent and the transverse magnetic flux leakage is low. The anti-short circuit capability is thus greatly improved. Oil conduit is rationally designed in the windings to increase winding's heat dispersion surface, effectively reduce temperature and improve transformer's overload capability. Insulation Structure: The transformer adopts class-A insulation. The HV and LV windings are arranged in concentric way. Between the windings are oil-clapboard insulation structure built with paper cylinder and small oil conduit. Tank: The tank is jointed with high-quality steel. Rust-removing and phosphorization processes are carried out for the tank surface, then the surface is coated with FVC anti- erosion paint, thus to effectively prevent grease pollution and chemical erosion. The appearance is nice and harmonic with the environment. The whole structure is easy for installation and maintenance. It can be widely applied in outdoor environment and under harsh conditions. Accessories: The transformer is equipped with HV & LV bushings, oil drain valve, earthing bolt, lifting board, rating plate, pressure relief valve and other accessories. Transformers of over 800kVA power are equipped with signaling thermometer and gas relay. Main measures for preventing oil leakage: 1. Superior large-width steel plate is selected as material and no vertical joins on the tank wall. 2. All sealing flanges are products of finish machining, thus to ensure components' flatness and cleanness. Therefore, the sealing parts have very long service lifetime. 3. Dual-sealing structure is adopted for large and medium size tank, thus to further ensure tank rim from oil leakage. 4. Advanced technology is adopted during protective welding, thus fully ensuring the welding quality. X-ray leakage detection is carried out for each welding seam. 5. All main components and parts (for example, bushing, radiator, sealing parts, butterfly valve and flap door) are purchased from the famous manufacturers recognized and certified by authority. 6. Superior sealing part and nitrile rubber are adopted for sealing process. The nitrile rubber is a type of oil-resistant high-elasticity product that has a reputation as "sealing expert". Executed Standards: IEC60076

Pearl Electric's history may date back to the year of 1958 when it is founded as the Panyu Electrical Motor Factory. With more than fifty years development and company restructuring/reorganization in recent years, Pearl Electric is now ready to realize its ambition of becoming a global power transformer manufacturer and supplier.

Pearl Electric Co., Ltd. is a professional and high-tech manufacturing enterprise engaged in the R&D, manufacturing and sales of various power transformation and transmission equipment. The main product coverage is 110kV (and below 110kV) oil-immersed power transformer, 35kV (and below 35kV) dry-type power transformer, reactors, pad-mounted transformer and prefabricated substation. Pearl occupies a factory area of 9 hectares, with more than 6 hectares of modern factory buildings. Having more than 600 employees and possessing more than 260 sets of specialized manufacturing equipment, Pearl boasts an annual output capability of 6 million kVA transformers, 1.50 million kvar reactors and more than 2000 sets of pad-mounted transformer/prefabricated substation.

Pearl Electric boasts a professional R&D team with more than 50 engineers for the development of new products, design of customized model and guarantee of factory manufacturing. Pearl Electric has also established a complete Quality Management System, with the following certifications passed: ISO9001: 2008 Quality Management Certification, ISO14001 Environmental Management System certification and OHSAS18000 Occupation Health and Safety Management System certification.

Since the inception in 1958, Pearl Electric has always been winning customer's trust and support with the advanced technology, superior quality, considerate service and sincere cooperation. Pear Electricl is highly recognized by authority and enjoys a high reputation in the industry. Such titles are granted to Pearl Electric as "Guangzhou Top 100 Private Enterprises", "Valuing Contract and Keeping Credit Company for 17 Continuous Years", "Guangzhou High & New Technology Enterprise", " Guangdong Top Brand", "Guangdong Top 50 Key Equipment Manufacturing Enterprises" and etc...Pearl products have won various Scientific and Technological Progress Awards at national, provincial and municipal level. The marketing network spreads across the whole China and products are sold also abroad, for example Southeast Asia and Middle East.
