Product Specifications
| Prod Model: |
CYECT-110D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 110kv: |
Ect |
| Type: |
Current Transformer |
| Phase: |
Single |
| Application: |
Switchgear |
Product Description
Description:

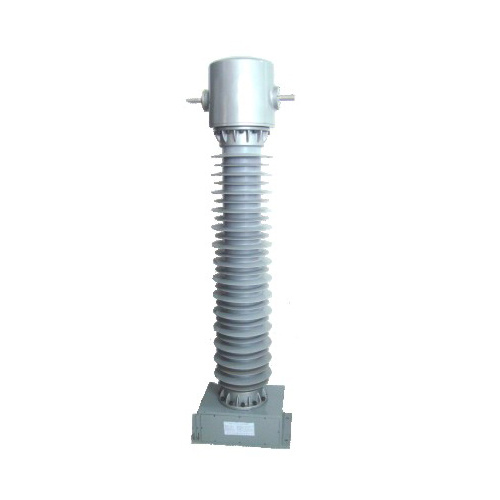

110kv electronic current transformers the products accord with standard IEC60044-8, I EC61850-9 IEC61689-1&2, digital output can expediently match with electric instrument, digital measure and protective equipment, and can meet customer's other special requirement.
Main Technical Parameter:
1.Rated primary voltage:110 kV
2.Rated primary current:50-3150A
3.Rated digital output:0x2D41(measure)
0x01 CF(protection)
4.Accuracy for measuring winding:0.2
5.Accuracy for protection winding:5TPE/5P20-50
6.Rated insulation level:126/200/450kV
7.Rated short time thermal current:50-200:1501pr,300-2000A :31.5kA/1 S
8.Rated dynamic current:50-200A:3751pr,300-2000A:8OkA
9.Ambient temperature:-25ºC-50ºC
10.Ambient humidity:≤RH95%(25t)
11.Altitude:≤2000m(Can devise according customer's requirement)
12.Installation site:outdoor
