Product Specifications
| Prod Model: |
SZ11 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Two-winding Transformer |
| Application: |
Audio |
Product Description

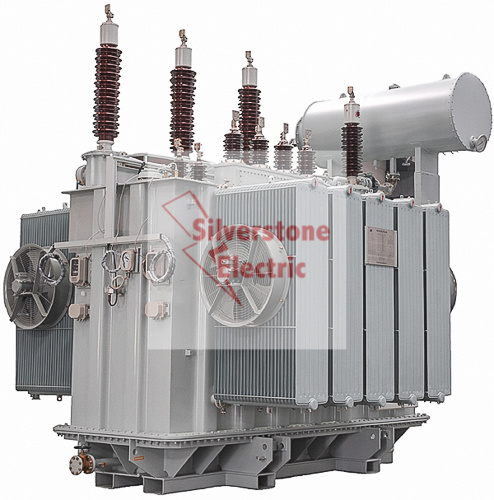

110KV (SZ11 Series) 3-phase 2 -winding power transformer with OLTC
Low loss: No-load losses is about 40% lower than that required in current national standard GB6451-1999; load losses is about 15% lower than that required in current national standard GB6451-1999;
Low Noise level: <60dB, about 20dB lower than that in the national standard.
Low particle discharge: the full range process of 110kV product is dust-free operation; metal parts and insulation parts inside the transformer are all rounded; the partial discharge is controlled to be lower than 100pc
High Short-circuit capacity: the independently designed and manufactured SZ10-40000/110 transformer of the Company has passed the Short-circuit test of the National Transformer Quality Test & Inspection Center (CTQC).
Beautiful appearance: oil tank bending corrugated structure, shot blasting de-dusting, powder EFI paint, wide fin radiator, never fade in color;
No leakage: all seal with limit position and upper & lower tank edges are sealed along two channels; sealing gasket is imported. We solemnly commit no leakage of oil.
Type | Comnection
symbol | Voltage
combination | No-load
Loss(kW) | Load loss(kW) | No-load
Current(%) | Impedance | Gross
weight(kg) |
| SZ10-6300/110 | YNd11 | HV:
110±8×1.25% or121±8×1.25%
LV:
6.3 6.6 10.5 11 | 7.8 | 3.5 | 0.6 | 10.5 | 25000 |
| SZ10-6300/110 | 9.3 | 43 | 0.6 | 26000 |
| SZ10-6300/110 | 11 | 50 | 0.55 | 26400 |
| SZ10-6300/110 | 13 | 60 | 0.55 | 34000 |
| SZ10-6300/110 | 15.7 | 73 | 0.5 | 36500 |
| SZ10-6300/110 | 18.6 | 89 | 0.5 | 40000 |
| SZ10-6300/110 | 22 | 105 | 0.45 | 49000 |
| SZ10-6300/110 | 26.2 | 126 | 0.45 | 52500 |
| SZ10-6300/110 | 31.3 | 148 | 0.4 | 65500 |
| SZ10-6300/110 | 37 | 184 | 0.4 | 70000 |
| SZ10-6300/110 | 44 | 221 | 0.35 | 79000 |
| SZ10-6300/110 | 50.2 | 252 | 0.35 | 86000 |
| SZ10-6300/110 | 57.5 | 289 | 0.3 | 101000 |
