11kv Cast Resin Dry-Type Power Transformer (SCB11)

Name: 11kv Cast Resin Dry-Type Power Transformer (SCB11)
Brand: China-Manufacturer-Directory.com
SKU: 698038862
Availability: InStock
Rating: 4.5 (111 reviews)

Supplier:	Shengguang Wire and Cable Factory
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,FCA

Product Specifications

Prod Model:	SCB11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Cast Resin Dry-Type Powertransformer
Model:	Scb11
High Voltage:	11-35kv
Winding:	Copper
Rated Frequency:	50Hz/60Hz
Istallation:	Indoor or Ourdoor
Application:	Audio
Phase:	Three
Cooling Method:	Dry-type Transformer
Winding Type:	Auto-transformer
Coil:	Toroidal
Brand:	Yuete

Product Description

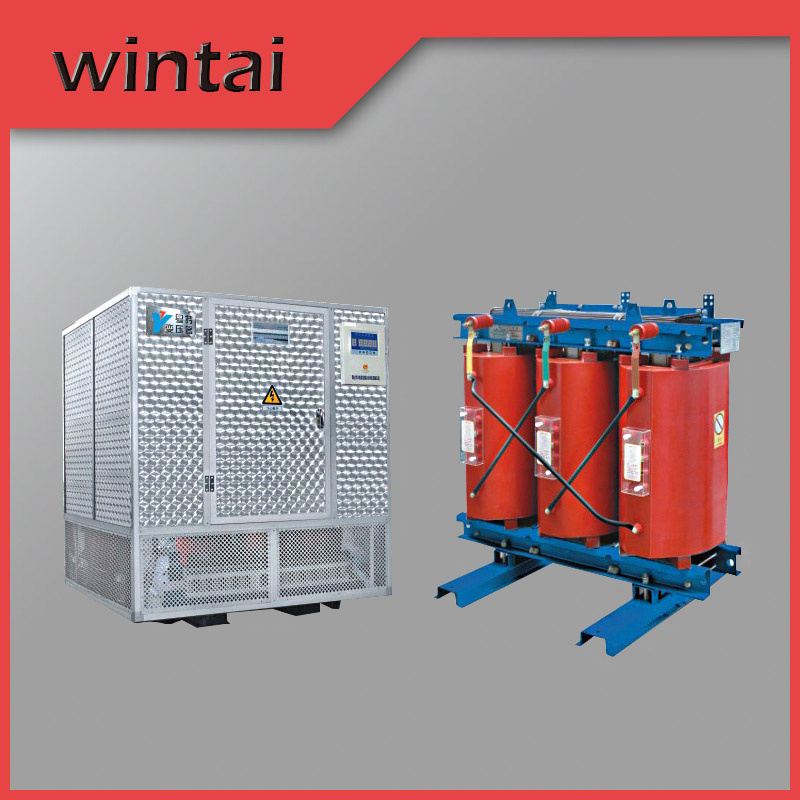

11KV Cast Resin Dry-type PowerTransformer

1.Voltage available:6kv,11kv,15kv,22kv,33kv,35kv
2.Second Voktage:0.4kv
3.Tapping:± 5%, ± 2× 2.5%
4.Frequency:50Hz; 60Hz
5.Connection:Yyn0, Dyn11

Certificate
1)CE,ISO9001
2)Apply for IEC,GB

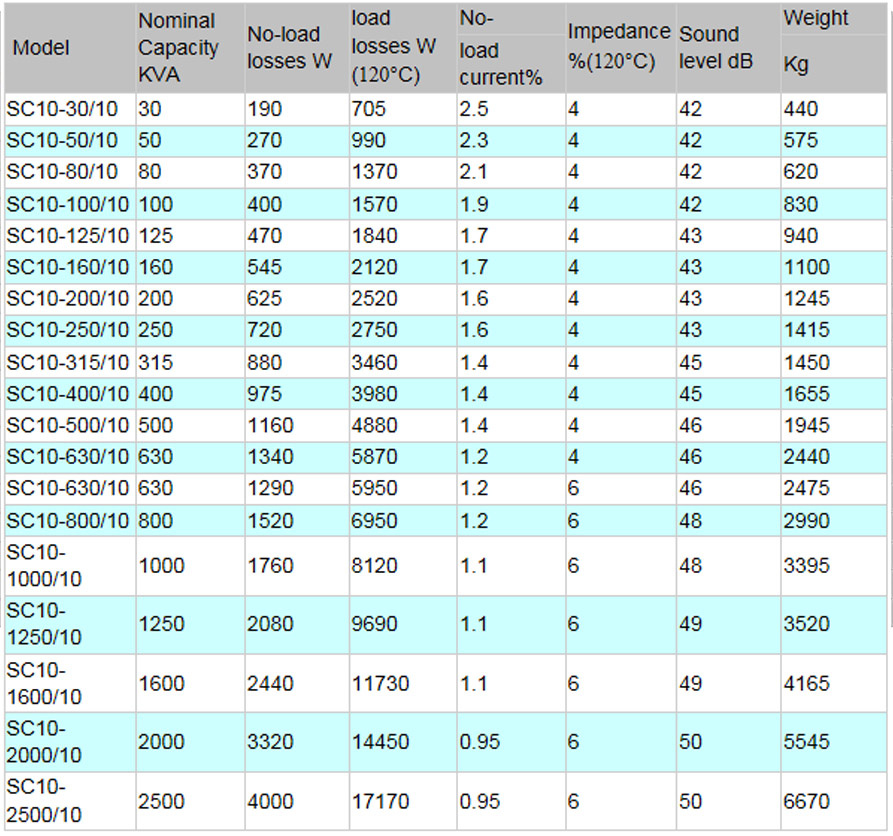

General Technical Parameters
Rated Primary Voltage: 6kV up to 35kV
Rated Secondary Voltage: 0.4kV
Rated Capacity: 3kVA up to 2500kVA
Rated Short-time P. F. Withstand Voltage (r.m.s.) (kV): 20, 25, 35, 50, 70
Rated Lightning Impulse Withstand Voltage (Peak) (kV): 60, 75, 125, 170
Phase No.: single phase or three phases
The Highest Temperature Rise of Windings: 100K
Insulation Class: F
Cooling Mode: AN or FN
Enclosure Protection: IP00, IP20 or custom specified
Connection Symbol: Yyn0, Dyn11or I_I0 or custom specified
HV Tapping Range (%): ±5 or ±2×2.5

Main Features
Low loss, low noise, high operation efficiency
High ability of protection against short circuit

High mechanical strength
Pre-galvanized steel frame, flame-resistant, against corrosion

With outstanding fire-proof capability: the epoxy resin is difficult to flame and self-extinguished. So it won't lead to the second disasters, such as an explosion.

Cast epoxy resin with high dielectric strength 18~22kV/mm in vacuum process

Superior in environmental performance: the epoxy resin is very stable, moisture-proof and dust-proof. It enables dry-type power transformers to run with high reliability under abominable environment.

With theimpeccable temperature control and indicating system, dry-type power transformers can be maintenance free. And this offers a great reduction of operation cost.

With small volume, light and convenient for installation and alignment.

No need of a separated room.

Materials
Insulation Material: epoxy resin

Winding Material: Aluminum wire or high quality enameled copper wire (foil winding is available for power transformer)

Core: core lamination, low loss, cold rolled grain oriented silicon steel

Packing details:
International export standard wooden case or customerization

Delivery details:
15-20days received advance payment

Technical Specification:

Shengguang Wire and Cable Factory is a professional company engaged in the research, development, manufacture and sales of various prodcuts such as power distribution transformer, power cables, sockets, and adapters, with two base factories. Our wire and cable factory, located in YUNAN TOWN, covers over 22, 000 square meters and has more than 200 staff members. Our socket and plug factory, located in JIANGMEN City, covers over 32, 000 square meters and has more than 300 staff members.

SHENGGUANG passed ISO9001: 2000 Quality System Certification and most products are certified by CCC, UL/cUL, CSA, SAA, ASTA, VDE, KS, PSE-Mark, BSMI and RoHS systems.

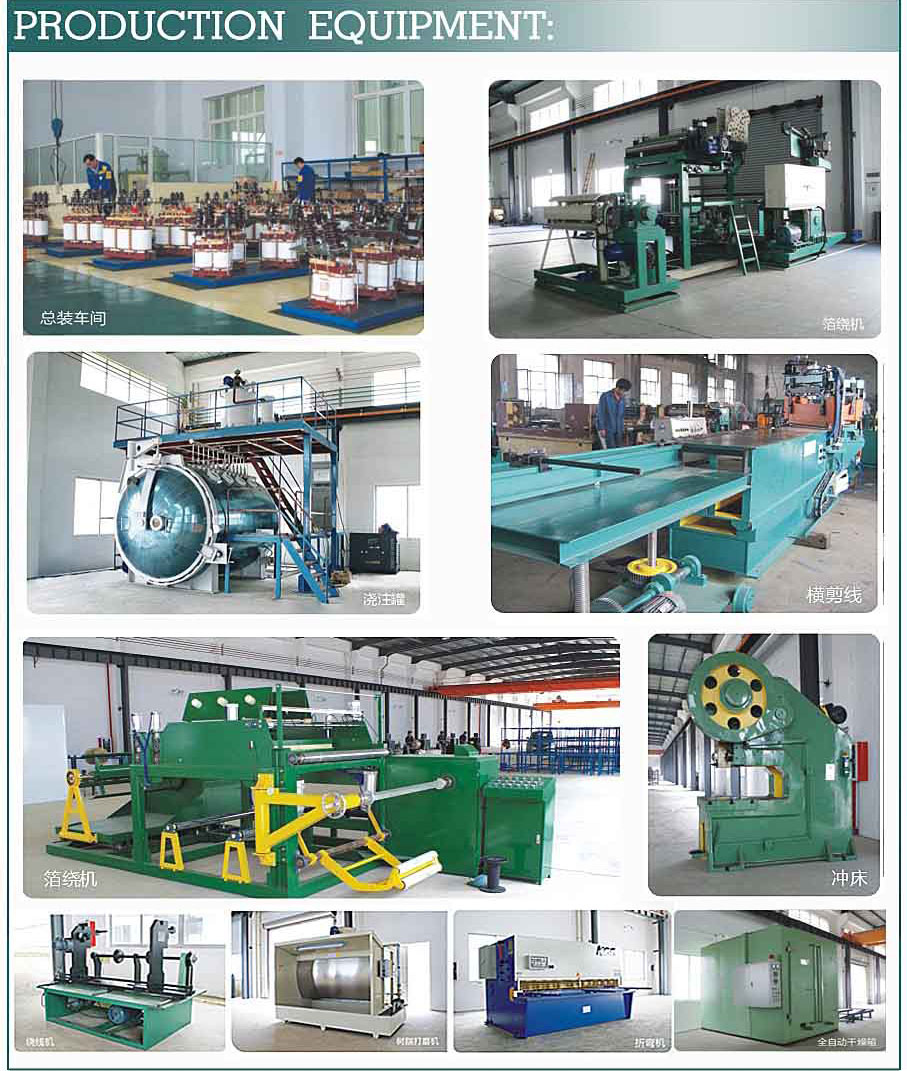

Our production bases are equipped with advanced facilities, sate-of-the-art technology and powerful capacity, catering to all the requirements of our clients.
