11kv Indoor Block Type CT /Current Transformer

Name: 11kv Indoor Block Type CT /Current Transformer
Brand: China-Manufacturer-Directory.com
SKU: 757256025
Availability: InStock
Rating: 4.9 (46 reviews)

Supplier:	Shenzhen Chuangyin Technology Co., Ltd.
Price:	US $ 150-160/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LZZBJ9-11C1/C2; LZZBJ9-11C2Q4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
11kv:	Epoxy Resin
Application:	Switchgear
Type:	Current Transformer
Phase:	Single

Product Description

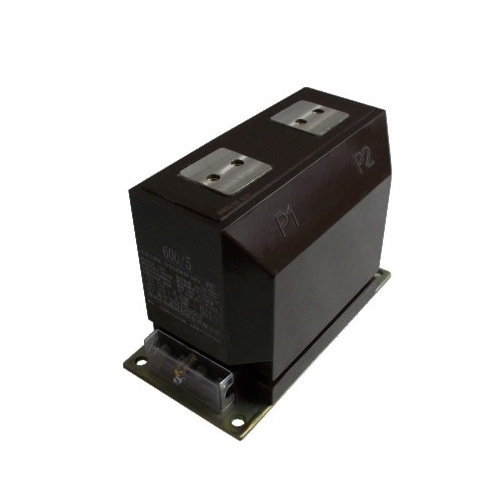

LZZBJ9-11C1,LZZBJ9-11C2,LZZBJ9-11C2Q4 current transformer(CT), epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body.

The product has the feature of light weight, omnidirectional installation, withstanding nastiness and dampness.

It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV, IEC68869-1&2.

Specification

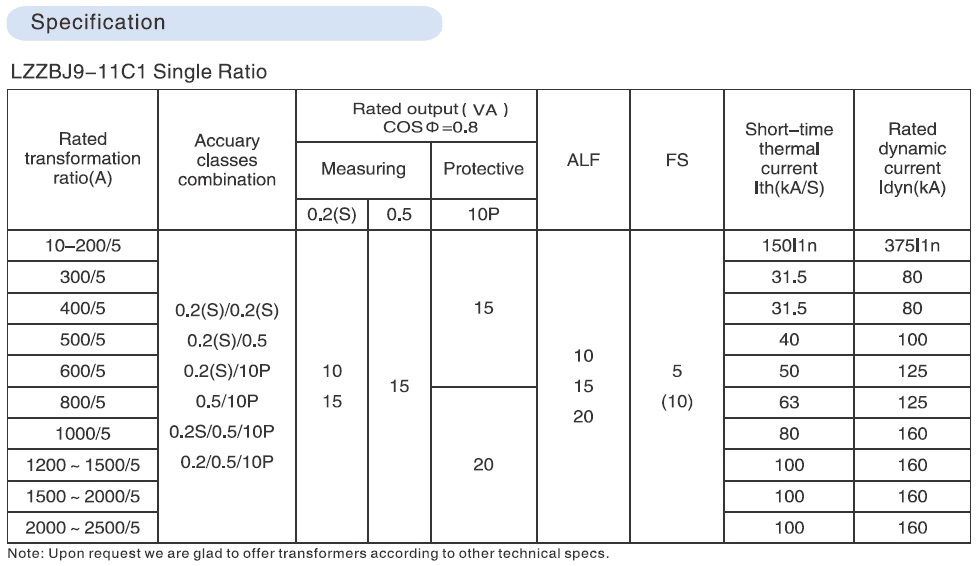

1) lzzbj9-11c1 Single Ratio

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-200/5	0.2 (s)/0.2 (s) 0.2 (s)/0.5 0.2 (s)/10p 0.5/10p 0.2s/0.5/10p 0.2/0.5/10p	10 15	15	15 20	10 15 20	5 (10)	150I1N	375I1N
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200-1500/5							80	160
1500-2000/5							100	160
2000-3150/5							100	160

Note:Upon request we are glad to offer transformers according to other technical specs.

2) lzzbj9-11c1 Double Ratio

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-20/5	0.2 (s)/0.2 (s) 0.2 (s)/0.5 0.2 (s)/10p 0.5/10p	10 15	15	15 20	10 15 20	5 (10)	1.5	3.75
20-40/5							3	7.5
50-100/5							8	820
100-200/5							15	37.5
200-400/5							30	75
400-800/5							63	130
500-1000/5							80	160

Note:Upon request we are glad to offer transformers according to other technical specs.

3) lzzbj9-11c2 Single Ratio

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-200/5	0.2 (s)/0.2 (s) 0.2 (s)/0.5 0.2 (s)/10p 0.5/10p 0.2s/0.5/10p 0.2/0.5/10p	10 15	15	15 20	10 15 20	5 (10)	150I1N	375I1N
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200-1500/5							80	160
1500-2000/5							100	160
2000-2500/5							100	160
2500-3150/5							100	160

Note:Upon request we are glad to offer transformers according to other technical specs.

4) lzzbj9-11c1 Double Ratio

Rated transformation ratio (A)	Accuary classes combination	Rated output (VA) COS=0.8			ALF	FS	Short-time thermal current Ith (KA/S)	Rated dynamic current Idyn (KA)
		Measuring		Protective
		0.2 (s)	0.5	10p
10-200/5	0.2(s)/10p/10p 0.5/10p/10p 0.2 (s)/0.2 (s)/10p/10p/10p 0.2(s)/0.5/10p/10p	10 15	15	15 20	10 15 20	5 (10)	150I1N	375I1N
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5							63	125
1000/5							80	160
1200-1500/5							80	160
1500-2000/5							100	160
2000-2500/5							100	160
2500-31500							100	160

Note:Upon request we are glad to offer transformers according to other technical specs.

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds split core current transformers, Rogowski coils, energy meter components (CT and relay), medium voltage current transformers, potential transformers, low voltage current transformers and switchgear components.

Passed CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
