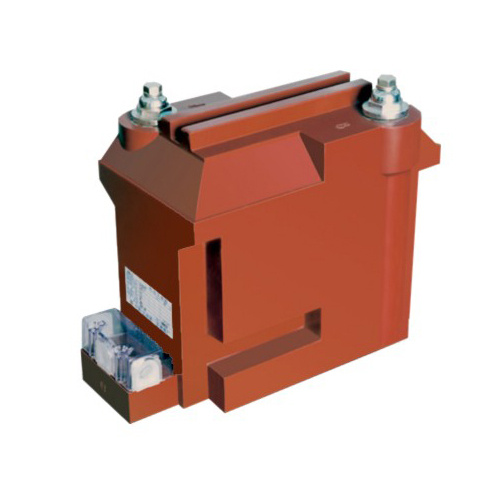

11kv Indoor Double Pole Potential/ Voltage Transformer/PT/Vt (with fuse)
Product Specifications
| Prod Model: |
JDZ10-11R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| Double Pole: |
with Fuse |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description
JDZ10-11R voltage transformer, epoxy resin casting and full-enclosed construction, is widely used for measuring current, electric energy and protective relaying in the single-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipement 12kV.
The core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out from transverse side of the product. The product has the feature of high reliability, low magnetism of core and maintenance free etc.
Technical parameter
1. Rated primary voltage: 11kV
2. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers| Type | Rated primary
voltage (kV) | Rated secondary voltage (kV) | Accuracy classes combination | Rated output
(VA) | Thermal limiting current
(VA) | Rated insulation level(kV) |
| JDZ10-11R | 11 | 0.1
0.11 | 0.2 | 25 | 600 | 12/28/75 |
| 0.5 | 50 |
| 1 | 150 |
0.1/0.1
0.11/0.11 | 0.2/0.2 | 15/15 | 300 |
| 0.2/0.5 | 15/30 |
| 0.5/0.5 | 30/30 |

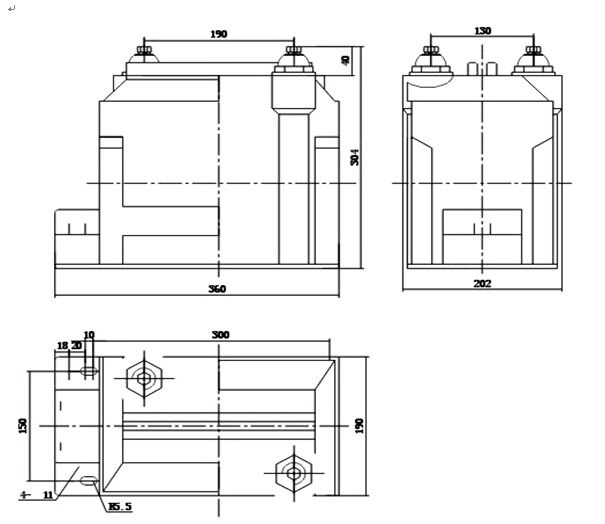

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.Outline drawing
