11kv Indoor Double-Pole Potential/ Voltage Transformer/PT/Vt with Fuse
Product Specifications
| Prod Model: |
JDZ10-11RJC, JDZ10-11RVJC, ZJ10-11RJC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| With Fuse: |
Vt |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description

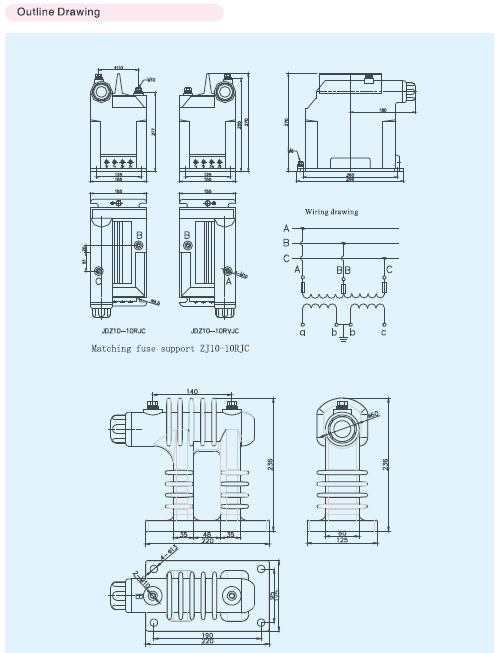

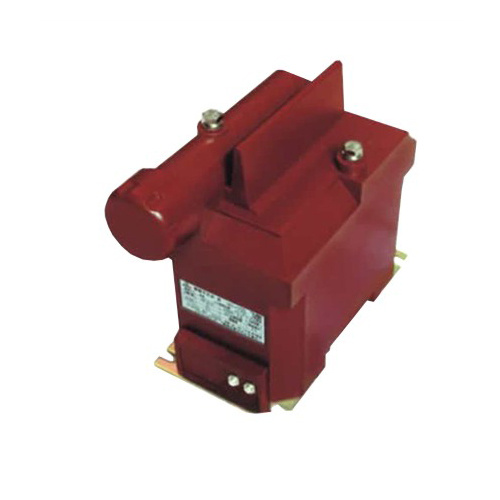

JDZ10-11RJC voltage transformer , epoxy resin casting and fully enclosed construction, is used indoor for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 7.2 /12kV, Be suitable for three phase V connnection matching "RV".
Key Technical Data
1. Rated Frequency : 50/60Hz
2. Load power factor cosΦ=0.8 (lagging)
3. High Voltage Fuse: XRNP1-12/0.5,1A(Optional)
4.Technical standard accords with GB1207-2006,Mod 60044-2:2003
| Type | Rated primary
Voltage
(kV) | Rated secondary
Voltage
(kV) | Accuracy classes
combination | Rated output (VA) | Thermal limiting
Output
(VA) | Rated
Insulation level
(kV) |
| JDZ10-11RJC | 6.6
11 | 0.1
0.11 | 0.2 | 25 | 400 | 7.2/20/60
12/28/75 |
| 0.5 | 50 |
| 1 | 80 |
0.1/0.1
0.11/0.11 | 0.2/0.2 | 15/15 | 250 |
| 0.2/0.5 | 15/25 |
0.1/0.22
0.11/0.22 | 0.2/6P(3P) | 15/400 | 500 |
| 0.5/6P(3P) | 25/400 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
