11kv Indoor Double-Pole Potential/Voltage Transformer/PT/Vt
Product Specifications
| Prod Model: |
JDZ10-11QC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| Voltage Transformer: |
Vt |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description

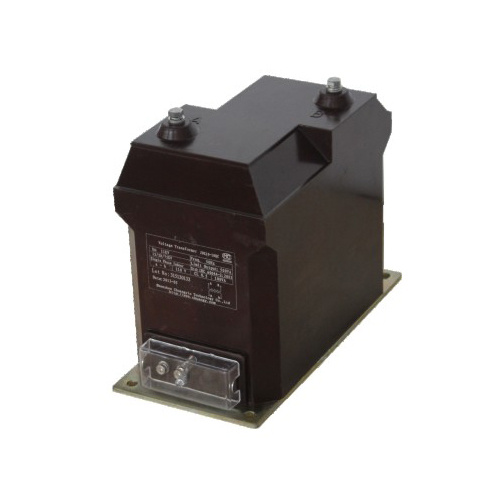

JDZ10-11Q(C) voltage transformer , epoxy resin casting and double pole insulated fully enclosed construction, is used indoor for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 7.2/12kV.
The product has the feature of high reliability, low magnetism of core, large creepage distance of external insulation and maintenance free etc.
Main technical parameter:
1. Rated primary voltage: 6.6/11kV
2. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers| Type | Rated primary
voltage (kV) | Rated secondary voltage (kV) | Accuracy classes combination | Rated output
(VA) | Thermal limiting current
(VA) | Rated insulation level(kV) |
| JDZ10-11Q(C) | 4.16
4.2
6.6
11 | 0.1
0.11 | 0.2 | 25 | 500 | 7.2/20/60
12/28/75 |
| 0.5 | 50 |
| 1 | 100 |
| 0.12 | 6P | 500 |
0.1/0.1
0.11/0.11 | 0.2/0.2 | 15/15 | 300 |
| 0.2/0.5 | 15/30 |
0.1/.022
0.11/0.22 | 0.2/6P(3P) | 15/300 | 500 |
| 0.5/6P(3P) | 30/300 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

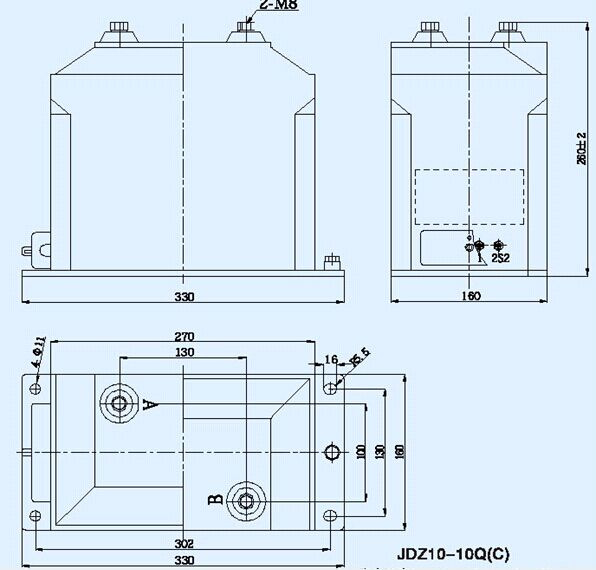

Outline drawing
