11kv Indoor Epoxy Resin Block Type Current Transformer
Product Specifications
| Prod Model: |
LZZBJ15-11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
CT |
| Small Size: |
11kv |
| Current Transformer: |
Epoxy Resin |
| China: |
Factory |
| Application: |
Switchgear |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

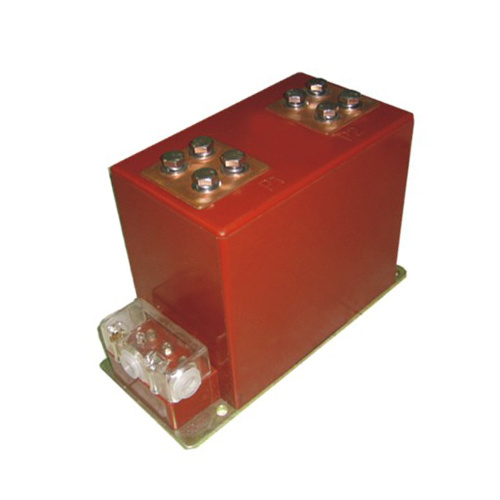

LZZBJ15-11 current transformer, epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has two secondary windings (one measuring winding and one protective winding). It is widely used for measuring current, electric energy and protective relaying in the power system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.Main technical parameter - Rated voltage: 11kV
- Rated secondary current: 5A or 1A
- Rated insulation level: 12/28/75kV
- Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers
- Other technical parameter pls see as follow:
| Rated current ratio (A) | Accuracy classes combination | Rated output
(VA) | FS | ALF | Rated short-time thermal current (kA/S) | Rated dynamic current ( kA) |
| Measuring | Protective |
| 0.2(S) | 0.5 | 10P |
| 10-200/5 | 0.2(S)/0.2(S)
0.2(S)/0.5
0.2(S)/10P
0.5/10P | 10
15 | 15 | 15 | 5
(10) | 10
15
20 | 100I1n | 250I1n |
| 300/5 | 31.5 | 80 |
| 400/5 | 31.5 | 80 |
| 500/5 | 40 | 100 |
| 600/5 | 50 | 125 |
| 800/5 | 20 | 63 | 125 |
| 1000/5 | 80 | 160 |
| 1200~1500/5 | 80 | 160 |
| 1500~2000/5 | 100 | 160 |
| 2000~2500/5 | 100 | 160 |

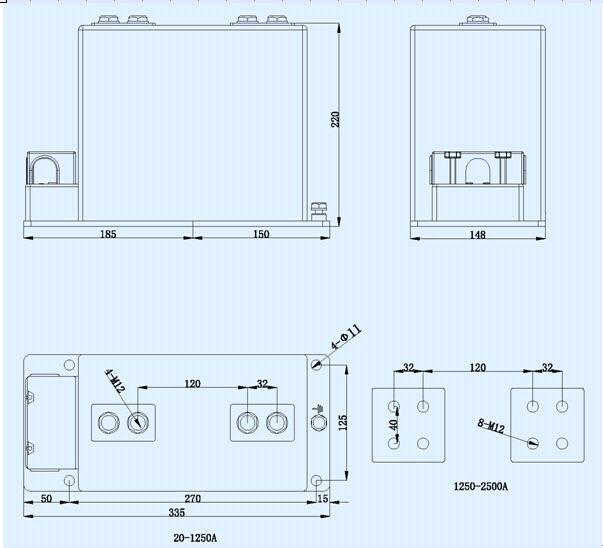

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.Outline drawing
