Product Specifications
| Prod Model: |
JDZX10-11RJC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| 11kv: |
Single Pole |
| Potential Transformer: |
Voltage Transformer |
| Vt: |
0.2/6p |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description

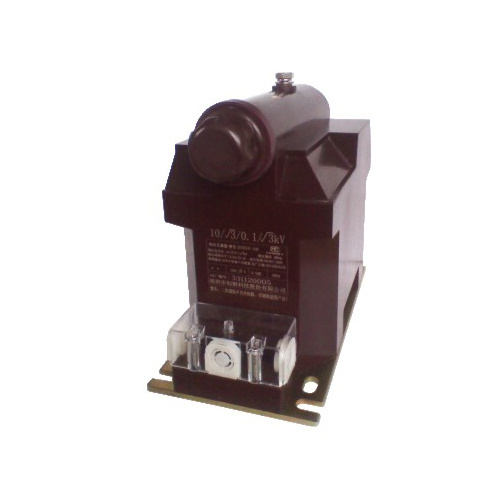

DZX10-11RJC voltage transformer with inbulit fuse , epoxy resin casting, half insulation and fully enclosed construction, is used indoor for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 7.2 /12kV, Be suitable for mataching with three phase V connnection.
Key Technical Data
1. Rated Frequency : 50/60Hz
2. Load power factor cosΦ=0.8 (lagging)
3. High Voltage Fuse: XRNP1-12/0.5,1A(Optional)
4.Technical standard accords with GB1207-2006,Mod 60044-2:2003
| Type | Rated primary
Voltage
(kV) | Rated secondary
Voltage
(kV) | Accuracy classes
combination | Rated output
(VA) | Thermal limiting
Output
(VA) | Rated
Insulation level
(kV) |
| JDZX10-11RJC | 6.6/
11/ | 0.1/
0.11/ | 0.2 | 20 | 400 | 7.2/20/60
12/28/75 |
| 0.5 | 50 |
| 1 | 80 |
0.1/ /0.1/3
0.11/ /0.11/3 | 0.2/6P(3P) | 15/50 | 200 |
| 0.5/6P(3P) | 25/50 |
| 1/6P(3P) | 60/50 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.
Qualification:CE-,TüV- and RoHS-marked,ISO 9001:2008-certified,KEMA
