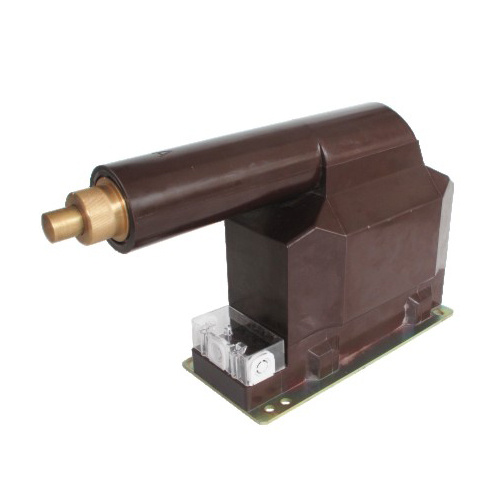

11kv Indoor Single Pole Potential/Voltage Transformer/PT/Vt with Fuse
Product Specifications
| Prod Model: |
JDZXR-11C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| With Fuse: |
Sing Pole |
| China: |
Factory |
| Voltage Transformer: |
Vt |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description
JDZXR-12C Voltage Transformer12Kv Indoor Single-Phanse Epoxy Resin Type DescriptionJDZXR-12C voltage transformer, epoxy resin casting and full enclosed construction, is used indoor switch cabinet to measure the current, electric energy and protective relaying in single phase or three phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV. The iron core adopts advanced cold-rolled silicon steel sheet. High voltage outgoing line of primary winding was fetched out from top of the product; outgoing line of secondary winding was fetched out from transverse side of the product. Technical Data< >
Installation Site indoorRated Frequency: 50/60HzLoad power factor cosΦ=0.8 (lagging)Technical standard accords with GB1207-2006 / IEC 60044-2:2003Technical parameter1. Rated primary voltage: 6/or 11/ etc.2. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers ( or new version IEC61869-1&3)| Type | Rated primary
voltage (kV) | Rated secondary voltage (kV) | Accuracy classes combination | Rated output
(VA) | Thermal limiting current
(VA) | Rated insulation level(kV) |
| JDZXR-12C | 6/
11/ | 0.1/
0.11/ | 0.2 | 15 | 400 | 12/28/75 |
| 0.5 | 30 |
| 1 | 80 |
0.1//0.1/3
0.11//0.11/3 | 0.2/6P(3P) | 15/50 | 300 |
| 0.5/6P(3P) | 30/50 |

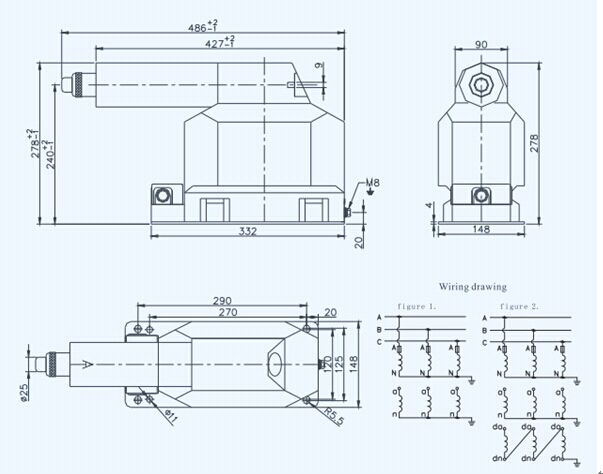

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs. Outline drawing
