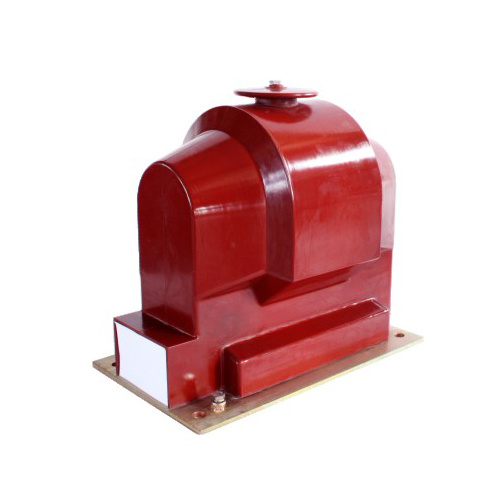

11kv Indoor Single Pole Potential/ Voltage Transformer/PT/Vt
Product Specifications
| Prod Model: |
JDZXF14-11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description
JDZXF14-11 single phase, four-winding earthed voltage transformer, adopts indoor epoxy resin material casting and half enclosed construction, is used for measuring current, electric energy and protective relaying in the electric system with the frequency 50Hz or 60Hz and highest voltage for equipment 17.5kV.
The product has three secondary windings used for measuring, supervising and protection. Secondary windings and primary windings are winded one concentric circle, the iron core is winded core with small no-load current and no-load loss.
Technical parameter
1.. Rated primary voltage: 11/ kV etc.
2. Rated voltage of metering windings and supervising windings: 100/ V or 110/ V
3. Rated voltage of residual voltage windings: 100/ 3 V or 110/ 3 V| Type | Rated transformation
ratio(kV) | Accuracy classes combination | Rated output
(VA) | Thermal limiting current
(VA) | Rated insulation level(kV) |
| JDZXF14-11 | 13..8/ /0.1/ /0.1/3
13.8/ /0.11/ /0.11/3 | 0.2/6P(3P) | 40/120 | 600 | 12/28/75 |
| 0.5/6P(3P) | 80/120 |
| 1/6P | 120/120 |
13..8/ /0.1/ /0.1/ /0.1/3
13..8/ /0.11/ /0.11/ /0.11/3 | 0.2/0.2/6P(3P) | 15/15/120 | 300 |
| 0.2/0.5/6P(3P) | 20/30/120 |
| 0.5/0.5/6P(3P) | 50/50/120 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

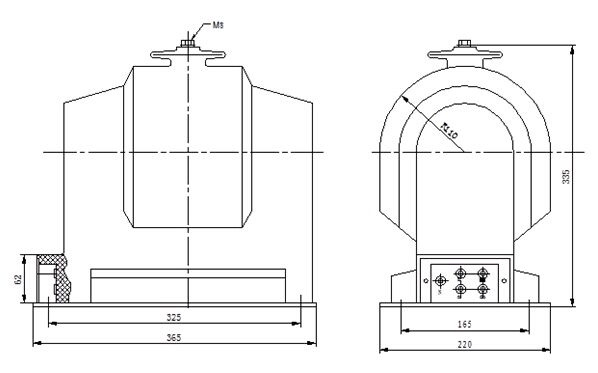

Outline drawing
