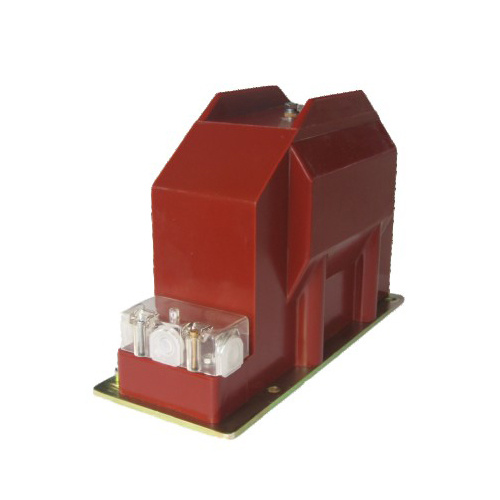

11kv Indoor Single Pole Potential/ Voltage Transformer/PT/Vt
Product Specifications
| Prod Model: |
JDZX15-11 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| Single Pole: |
Small Size |
| Application: |
Switchgear |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description
JDZX15-3,6,11 voltage transformer, is used indoor single phase or three phase AC circuit for measuring electric capacity, voltage and protective relaying with the frequency of 50Hz or 60Hz and rated voltage 11kV.
The product adopts epoxy resin casing full-closed structure with low magnetism density and large creepage distance of external insulation The product has high reliability and maintenance free .
Main technical parameter
1. Rated primary voltage: 11kV
2. Technical standard accords with IEC 60044-2:2003 Part2 Instrument transformers-Part2: inductive voltage transformers| Type | Rated primary
voltage (kV) | Rated secondary voltage (kV) | Accuracy classes combination | Rated output
(VA) | Thermal limiting current
(VA) | Rated insulation level(kV) |
JDZX15-3
JDZX15-6
JDZX15-11 | 3/
6/
11/ | 0.1/
0.11/ | 0.2 | 25 | 300 | 3.6/10/40
7.2/20/60
12/28/75 |
| 0.5 | 50 |
| 1 | 80 |
0.1/ /0.1/3
0.11/ /0.11/3 | 0.2/6P(3P) | 15/100 | 200 |
| 0.5/6P(3P) | 30/100 |
| 1/6P | 60/100 |
Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

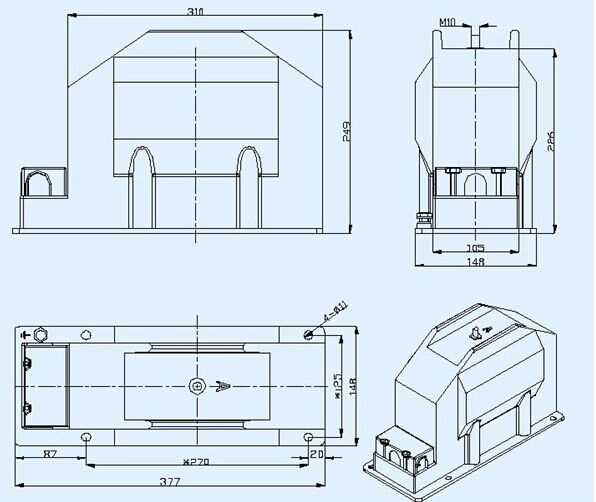

Outline drawing
