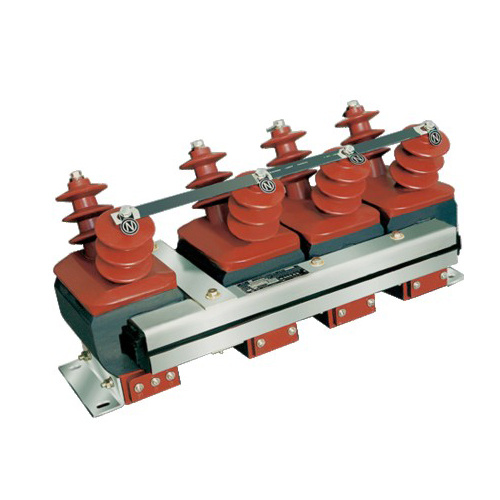

JSZF-11G three phase voltage transformer(PT) adopts indoor epoxy resin material casting and fully enclosed construction
Used for measuring current, electric energy and protective relaying in the electric system,
With the frequency 50Hz or 60Hz and highest voltage for equipment 12kV,IEC68869-1&3.
Commpany Information:
Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D,
production and sales of kinds split core current transformers, Rogowski coils,
energy meter components (CT and relay), medium voltage current transformers,
potential transformers, low voltage current transformers and switchgear components.
Work with us, a CT and relay assembly solutions provider that GE and Itron trust
Qualification:CE-,TüV- and RoHS-marked,ISO 9001:2008-certified,KEMA
Specification
| Type | Rated
Primary Voltage
(kV) | Rated
Secondary
Voltage
(kV) | Acuracy
Classes
Combination | Rated
Output(VA)
COS0=0.8 | Thermal
Limiting
Output
(VA) | Rated
Insulation
Level
(kV) |
| Threeo-phase | Zero sequence |
| JSZF-12G | 11/√3 | 0.11/√3 | 0.11 | 0.2/6P | 70/150 | 1000 | 12/28/75 |
| 0.5/6P | 150/150 |
| 1/6P | 300/150 |
0.11/√3
0.11/√3 | 0.11 | 0.2/0.2/6P | 45/45/150 | 600 |
| 0.2/0.5/6P | 45/75/150 |
| 0.5/0.5/6P | 90/90/150 |
Note:Upon request we are glad to offer transformers according to other technical specs.
