Product Specifications
| Prod Model: |
LMZC-11 Current Transformer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ring: |
Window |
| LV: |
Indoor |
| Different Size: |
Large Ratio |
| Power Frequency Withstand Voltage: |
3kv |
| Rated Frequency: |
50/60Hz |
| Application: |
Switchgear |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

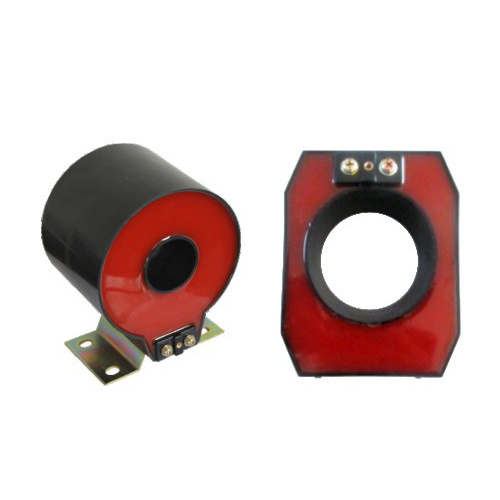

LMZC-11 Current Transformer
The secondary windings are full-enclosed in the flame retardant plastic shells, primary bushing or cable can pass through the inner hole, bottom has installation inserts for fixation. It is simple and shortcut, is suitable for measuring current, signal collection and protective relaying in the power system with the rated voltage 11kV of bushing or cable ect.
Technical Data
1. Rated secondary current 5A or 1A
2. Power frequency withstand voltage: 3kV
3. Rated frequency 50/60Hz
4. Installation site: Indoor
Specification
1. LMZC1-11H40
| Model | LMZC1-11H40C | LMZC1-11H40P | LMZC1-11H40CP |
| Purpose | Measuring current transformer | Protective current transformer | Double winding current transformer |
| Rated Primary current | Accuracy class and rated burden (VA) | Accuracy class and rated burden (VA) | Double winding accuracy class and rated burden (VA) |
| 0.2 | 0.5 | 1 | 10P10 | 10P5 | 0.2 | 0.5 | 10P10 | 10P5 |
| 30 |
|
|
|
|
|
|
|
|
|
| 50 |
|
| 1 |
|
|
|
|
|
|
| 75 |
| 1 | 1.5 |
|
|
|
|
|
|
| 100 |
| 2.5 | 5 |
| 2 |
|
|
|
|
| 200 |
| 3.75 | 5 |
| 2.5 |
|
|
|
|
| 300 |
| 5 |
|
| 3.75 |
|
|
|
|
| 400 | 5 | 7.5 |
| 2.5 |
|
|
|
|
|
| 500 | 5 | 10 |
| 2.5 |
|
|
|
|
|
| 600 | 5 | 10 |
| 2.5 |
|
|
|
|
|
2. LMZC1-11H70
| Model | LMZC1-11H70C | LMZC1-11H70P | LMZC1-11H70CP |
| Purpose | Measuring current transformer | Protective current transformer | Double winding current transformer |
| Rated Primary current | Accuracy class and rated burden (VA) | Accuracy class and rated burden (VA) | Double winding accuracy class and rated burden (VA) |
| 0.2 | 0.5 | 1 | 10P10 | 10P5 | 0.2 | 0.5 | 10P10 | 10P5 |
| 30 |
|
|
|
|
|
|
|
|
|
| 50 |
|
| 1.5 |
| 1.5 |
|
|
|
|
| 75 |
|
| 2.5 |
| 2.5 |
| 1.5 |
|
|
| 100 |
|
| 5 |
| 3.75 |
| 2.5 |
| 2 |
| 200 |
| 5 |
| 2.5 | 5 |
| 3.75 | 1.5 | 2.5 |
| 300 | 2.5 | 5 |
| 3.75 |
| 2.5 | 2.5 | 2.5 |
|
| 400 | 5 | 10 |
| 5 |
| 5 | 7.5 | 3.75 |
|
| 500 | 10 | 15 |
| 10 |
| 5 | 10 | 5 |
|
| 600 | 10 | 15 |
| 10 |
| 5 | 10 | 5 |
|
3. LMZC2-11
| Model | LMZC2-11C | LMZC2-11P | LMZC2-11CP |
| Purpose | Measuring current transformer | Protective current transformer | Double winding current transformer |
| Rated Primary current | Accuracy class and rated burden (VA) | Accuracy class and rated burden (VA) | Double winding accuracy class and rated burden (VA) |
| 0.2 | 0.5 | 1 | 10P10 | 10P5 | 0.2 | 0.5 | 10P10 | 10P5 |
| 30 |
|
|
|
|
|
|
|
|
|
| 50 |
|
| 1.5 |
|
|
|
|
|
|
| 75 |
|
| 2.5 |
| 1.5 |
| 1.5 |
|
|
| 100 |
|
| 5 |
| 2.5 |
| 2.5 |
| 2 |
| 200 |
| 5 |
| 2.5 |
|
| 3.75 | 1.5 | 2.5 |
| 300 | 2.5 | 5 |
| 2.5 |
| 2.5 | 2.5 | 2.5 |
|
| 400 | 5 | 10 |
| 3.75 |
| 5 | 7.5 | 3.75 |
|
| 500 | 5 | 10 |
| 5 |
| 5 | 10 | 5 |
|
| 600 | 5 | 10 |
| 5 |
| 5 | 10 | 5 |
|
Note: Upon requset we are glad to offer transformers according to other technical specs.
