Product Specifications
| Prod Model: |
MK3P-1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Terminal Layout: |
3z |
Product Description
PRODUCT DESCRIPTION:

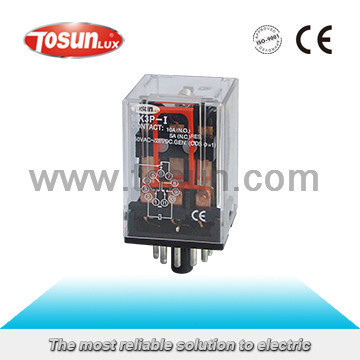

MK2P 3P general relay is widely suitable for DC or AC circuit switching in various automation devices process control and communication devices, process control and communication equipment.
FEATURES:
1. Stable performance,
2. High reliability,
3. Capable of making and breaking relatively large load current
4. Easy in maintenance and inspection
5. Long service life
SPECIFICATION:
| Terminal Layout | 2Z |
| Contact Capacity | AC | 10A 250V |
| DC | 10A 30V |
| Contact Resistance | <=50m |
| Insulation Resistance | >=500m |
| Dielectric Strength | BOC | 1500VAC |
| BCC | 1500VAC |
| Coil Nominal Voltage | AC | 6 to 380 V |
| DC | 6 to 220 V |
| Coil Nominal Power | AC | <=2.8VA |
| DC | <=1.6W |
| Electrical Life(OPS) | 10^5 |
| Mechanical Life(OPS) | 10^7 |
| Operating Temperature | -40~+60 |
| Weight(g) | <=80 |
| Mounting Methods | Outlet |
