Product Specifications
| Prod Model: |
P121-3HSD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
12.1 Inch |
| Resolution: |
800x600 |
| Aspect Ratio: |
4:3 |
| Contrast Ratio: |
900:1 |
| Brightness: |
330CD/M2 |
| Backlight: |
LED |
| Input Signals: |
3G/HD/SD-Sdi, HDMI, Component, Composite |
| Outputs: |
3G/HD/SD-Sdi, Component, Composite, Speaker |
| Input Voltage: |
DC6-14V |
| Type: |
Camera LCD Screen |
| Compatible Brand: |
All |
| Tripods Type: |
Mini Tripod / Lightweight |
| Lens Focus Type: |
Normal Lens |
| Lens Type: |
Zoom Lens |
| Tripods Use: |
Video Camera |
| Tripods Material: |
Aluminum |
Product Description

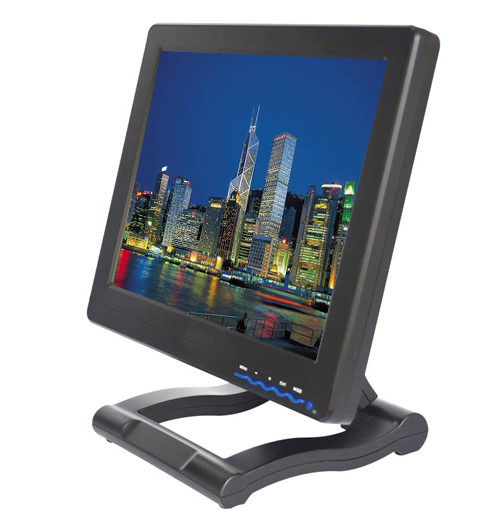

12.1" Director LCD Monitor with YPbPr, 3G HD-SDI, AV Input for Broadcasting & Movie Making
Advanced Features:
* Peaking Filter (Focus Assist)
* Pixel-to-Pixel Mode
* Image Multiplication, Image Freeze
* Picuture in Picture
* Image Flip
* Under Scan
* H/V Delay
* Screen Markers 80%, 85%, 90%, 93%, 96%
* Tally Red/Green Color
* Check Field(Red\Green\Blue\Black and White or Color)
* 3G/HD/SD-SDI Input, HDMI input, Component input, Composite Input
* 3G/HD/SD-SDI Output, YPbPr output, Video Output,
* 1 Earphone jack in the front panel in addition to a built-in speaker.
Specifications:
Model Number: P121-3HSD
Screen Size: 12.1 inch
Resolution: 800x600
Aspect Ratio: 4: 3
Contrast Ratio: 900: 1
Brightness: 330CD/m2
Backlight: LED
Input Signals: 3G/HD/SD-SDI, HDMI, Component, Composite
Outputs: 3G/HD/SD-SDI, Component, Composite, speaker
Viewing Angle: 40° /40° (L/R), 10° /30° (U/D)
Power Consumption: Less than 23W
Input Voltage: DC6-14V
Working Temperature: -20 º C to 60 º C
Storage Temperature: -30 º C to 70 º C
Unit Size: 344.8(L)x 228.2(W)x43(H)mm
Unit Weight: 2.5KG
| SDI Support Mode |
| NO. | Resolution | Catalogue |
| 1 | 1080P@60HZ/59.94HZ | 3G-SDI |
| 2 | 1080P@50HZ | 3G-SDI |
| 3 | 1080I@60HZ/59.94HZ | HD-SDI |
| 4 | 1080I@50HZ | HD-SDI |
| 5 | 1080P@30HZ/29.97HZ | HD-SDI |
| 6 | 1080P@25HZ | HD-SDI |
| 7 | 1080P@24HZ | HD-SDI |
| 8 | 720P@60HZ/59.94HZ | HD-SDI |
| 9 | 720P@50HZ | HD-SDI |
| 10 | 720P@30HZ/29.97HZ | HD-SDI |
| 11 | 720P@25HZ | HD-SDI |
| 12 | 720I@24HZ/23.97HZ | HD-SDI |
| 13 | 480I@60HZ/59.94HZ | SD-SDI |
| 14 | 576I@50HZ | SD-SDI |
| 15 | PAL | SD-SDI |
| 16 | NTSC | SD-SDI |
