Product Specifications
| Prod Model: |
LPS-12E300C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output: |
300W |
| Input Voltage: |
220V |
| Output Voltage: |
12V/24V |
| Efficiency: |
90% |
| IP Rating: |
IP 67 |
| Certificates/Standards: |
CE |
| Weight(Kg): |
0.9500 |
| Packing Information: |
10 PCS/ Carton, G.W 9.5 Kg |
| Power Factor: |
Low |
| Dimensions(L*W*H): |
307*85*35mm |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Regulator Voltage |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
220V |
| Brand: |
Neonpro |
Product Description
12/24V 300W IP67 Slim Efficient Waterproof LED Power Supply with CE BISFeature for BIS Waterproof Power Supply:*External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
*Slim body, special design for application with narrow space, such as ceiling LED Strip back light, LED light box...
*Fully sealed & waterproof, IP67
*Constant Voltage output
*100% burn-in test
*Efficiency>0.9, CE TUV BIS

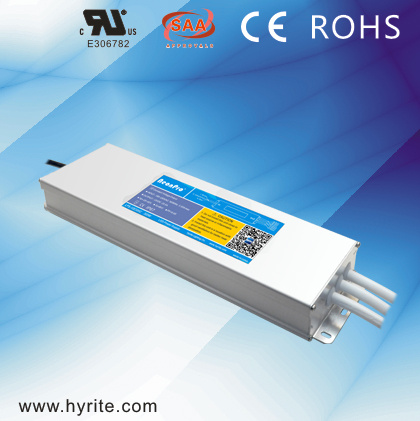

Product Pictures for BIS Waterproof Power Supply:
![]()
![]()
![]()
![]()
![]()
Note for BIS Waterproof Power Supply:Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc
Shipping for BIS Waterproof Power Supply:* DHL FedEx TNT UPS EMS
* By Sea
* By Air
Technical Specification for BIS Waterproof Power Supply:| Model no. | LPS-12E300C |
|---|
| Input voltage | 220 VAC 50/60 Hz |
|---|
| Max. power | 300 W max |
|---|
| Output type | Constant voltage |
|---|
| Dimming | No |
|---|
| Built-in active PFC | No |
|---|
| Power factor | Low |
|---|
| Efficiency | 90% |
|---|
| AC inrush current(max.) | Cold start, 40A@230VAC |
|---|
| Output voltage | 12VDC ± 5% |
|---|
| Output current | 25A max |
|---|
| Overload protection | 105% hiccup mode, auto-recovery |
|---|
| Over voltage protection | 120% rated output voltage |
|---|
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
|---|
| Operating temperature | -25~40 ºC |
|---|
| Installation | Outdoor waterproof |
|---|
| IP rating | IP 67 |
|---|
| Cooling | Free air convection |
|---|
| Certificates/standards | CE |
|---|
| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm) |
|---|
| Dimensions(L*W*H) | 307*85*35mm |
|---|
| Weight(kg) | 0.9500 |
|---|
| Packing information | 10 Pcs/ Carton, G.W 9.5 KG |
|---|
Application for BIS Waterproof Power Supply:![]()
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
