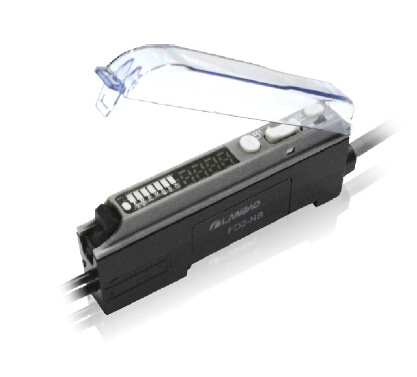

FD2 series Specification:
------------------------------------------------------------------------
Specification |
| Unit type | Main unit | Expasion unit | Expasion unit |
| Model | NPN NO/NC | FD2-NB11R | FD2-NB12R | FD2-NB10R |
| | PNP NO/NC | FD2-PB11R | FD2-NP12R | / |
| Power supply | 12~24VDC |
| Current consumption | <60mA |
| Voltage drop | <1V | / |
| Response time | <200us(FINE)\<400us(TURBO) <800us(SUPER) | 410us-1.7ms |
| Load current | ≤100mA | / |
| Detection accuracy | > 0.01mm (Depends on specific) |
| Light source | 660nm red visible light |
| Ambient light | Incandescent lamp 3000lux, sunlight 10000lux |
| Circuit protection | Reverse polarity and overload protection |
| Output indicate | 4 LED digital display\LED bar display |
| Function | Emitter power optional, output time delay optional |
| Ambient temp. | -10~+55°C (No freeze) |
| High voltage resistance | 1000V AC, 50/60HZ, 60s |
| Insulation resistance | ≥50MΩ(500VDC) |
| Anti-vibration | Amplitude 0.75mm, frequency 10~50Hz |
| Anti-shock | 500m/s2 (50G)for 3 times of X,Y,Z direction |
| Protection degree | IP54 |
| Housing material | PC+ABS |
| Connection | 2m PVC Cable |
Product datasheet link:
http://www.shlanbao.cn/en/product/show.aspx?classid=136&id=1389 |
Shanghai Lanbao Sensing Technology Co.,Ltd.
|
FD2 Series Feature :
------------------------------------------------------------------------
With NPN/PNP, NO/NC output method at the same time.
Adjust function with time delay control.
Sensitivity adjust function allowed the user adjust base on the different object.
Quickly responses, high frequency,
Anti-electromagnetic and anti-interference of other lights
Optic Fiber Sensors Application
------------------------------------------------------------------------
Optical fiber sensors are widely used in food, packaging, electronics and other automation Industry.
Usually used for mechanical engineering and product manufacturing process a small position in space and high precision of the occasion, from the detection, counting, position control and so on.
About Lanbao:
------------------------------------------------------------------------
Established in 1998, Shanghai Lanbao Sensing Technology Co., Ltd. is a leading industrial automation products supplier in China.
Our main businesses are industrial sensors R&D, production, sales and application, providing customers with standard and individual products and systems.
Lanbao has got ISO9001:2008 quality management system,ISO14001:2004 environment management certificate and applied RoHS Environmental directives.
Our series products are with UL, CCC, CE certificates.
Including inductive sensors, capacitive sensors, photoelectric sensors, pressure/tension/flow sensors and encoders, totally over 30 main series / 4000 specifications. Many of which reach international leading level.
Focus on quality first, reasonable price, timely delivery, and thoughtful service, Lanbao is always insisting on creating maximal value for customers.
Based on comprehensive and efficient service, Lanbao's products have extended to over 50 countries in the world.
