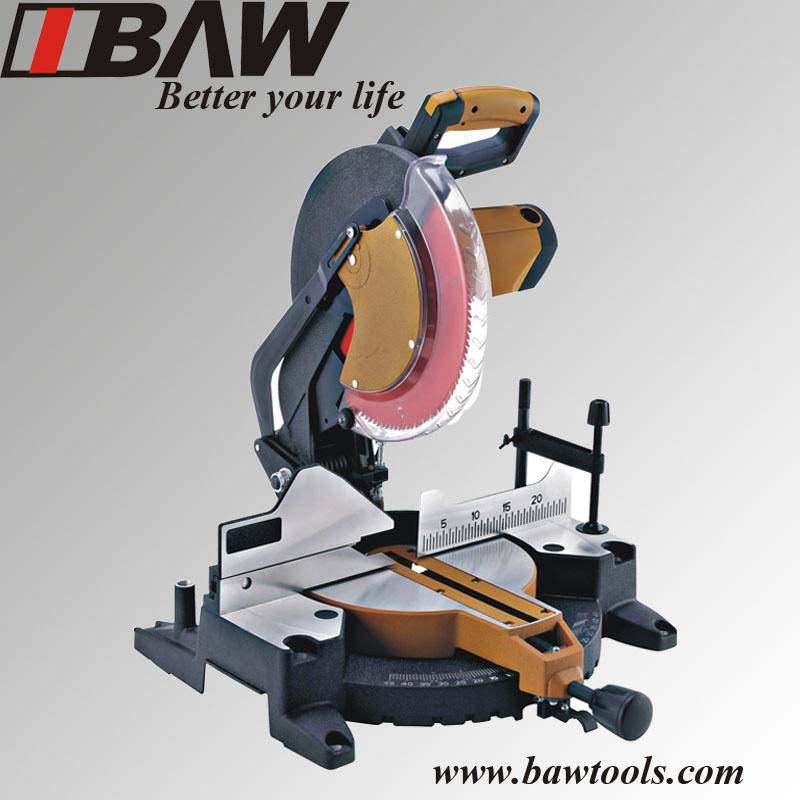

12'' 305mm 1800W Miter Saw (MOD 89005)
Features:
1). Large cutting capacity for crown molding (nested), baseboard (vertical), and crosscut at 90° ;
2). Exclusive tall dual sliding fence system features versatile upper and lower fence adjustments for
More precise miter and bevel cuts;
3). Miters 0° -52° Left and 0° -60° Right, with positive stops at 0° , 15° , 22.5° , 31.6° And 45° (left and right)
4). Bevels 0° -45° (left and right) with positive stops at 0° , 22.5° , 33.9° And 45° (left and right) Head tilting angle adjustment enforce various miter cutting;
5). See-through blade guard system for greater visibility of the line of cut
6). Large adjustable levers for fast and easy fence adjustments
Technical Parameters:
Rated Voltage220V
Rated Frequency50Hz
No-load Speed5000 r/min
Rated In-put Power1800W
Blade Dia205mm
Blade Bore25.4mm
Max Cutting Capacity(90° )65*195mm (H× W)
Max Cutting Capacity(45° )45*195mm (H× W)
Head Tilting(0° )65*140mm (H× W)
Head Tilting(45° )45*135mm (H× W)
Packing Information:
Packing WayColor Box
Quantity1 PCS / carton
Carton Size65*51*45 cm
Gross Weight17.50 kg / PCS
Net Weight14.50 kg / PCS
STD 20187 PCS
STD 40422 PCS
STD 40HQ455 PCS
Accessories:
Dust bag 1 PCS
Horizontal Clamp 1 PCS
Vertical clamp 1 PCS
Triangular ruler 1 PCS
Wrench 1 PCS
Carbon brush 1couple
User manual 1PCS
|
Technical Paremeter |
|
Rated Voltage |
220V |
|
Rated Frequency |
50Hz |
|
No-load Speed |
5000 r/m |
|
Rated In-put Power |
1800W |
|
Blade Diameter |
305mm |
|
Blade Bore |
25.4mm |
|
Max Cutting Capacity (90°) |
65*195mm (H*W) |
|
Max Cutting Capacity (45°) |
45*195mm (H*W) |
|
Head Tilting (0°) |
65*140mm (H*W) |
|
Head Tilting (45°) |
45*135mm (H*W) |
|
|
|
Packing Information |
|
Packing Way |
Color Box |
|
Quantity in each Carton |
1 pcs/Carton |
|
Carton Size |
65*51*45 cm |
|
Gross Weight |
17.5 kgs/pcs |
|
Net Weight |
14.5 kgs/pcs |
|
STD 20 |
187 pcs |
|
STD 40 |
422 pcs |
|
STD 40HQ |
455 pcs |

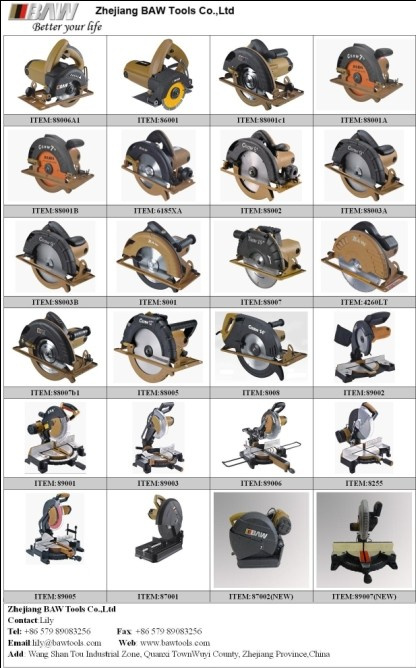

BAW Tools is one of the top professional power tools manufacturers in China with more than 5 years' manufacturing and R&D experience. BAW Tools is especially in manufacturing circular saw, miter saw and cut-off machine. We can offer our customer full range of saws from 5 inch to 14 inches with best quality.

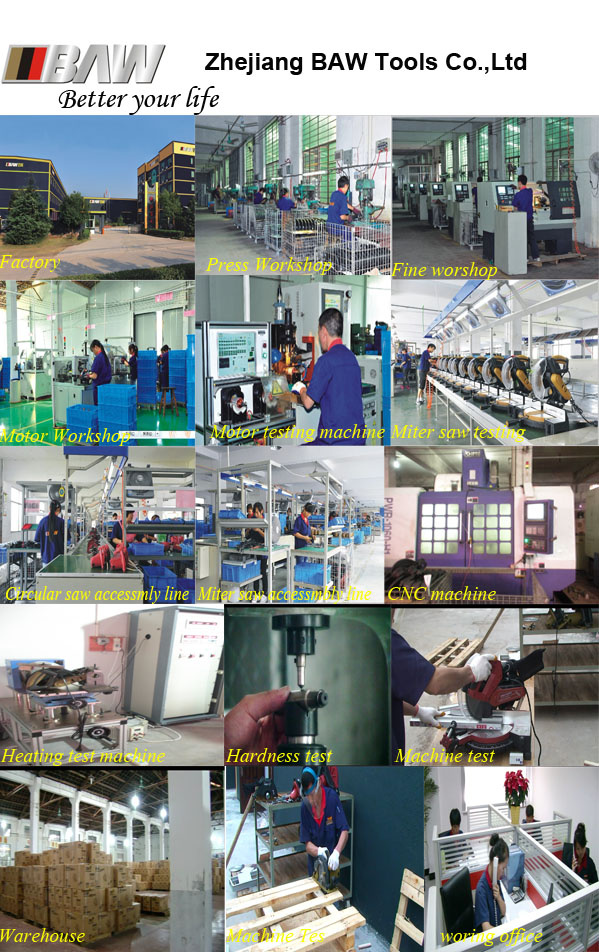

BAW factory covers an area of 10, 000 square meters with more than 300 staffs including 10 technical engineers and 20 QC personal. In this case, BAW Tools can offer our customer with newest products every year with professional quality.
Our company has advanced production equipment, modern management, professional technicians and a strict quality control system, and our main production department includes a motor manufacturing workshop, an Iron stamping workshop, an aluminum casting workshop, a painting workshop and an assembly workshop. All the main parts of products are made by ourselves to be cost-effective, and we strive to offer the best quality and the lowest price to reward our customers.
BAW Tools warmly welcomes all the friends to visit our company for more information, and we would like to establish a permanent relationship with customers based on mutual benefit.
