Yueqing City Jinwanli Electronic Component Factory >> 12 Pin Way Pitch 10.0mm Terminal Block Connector Feed Through Type

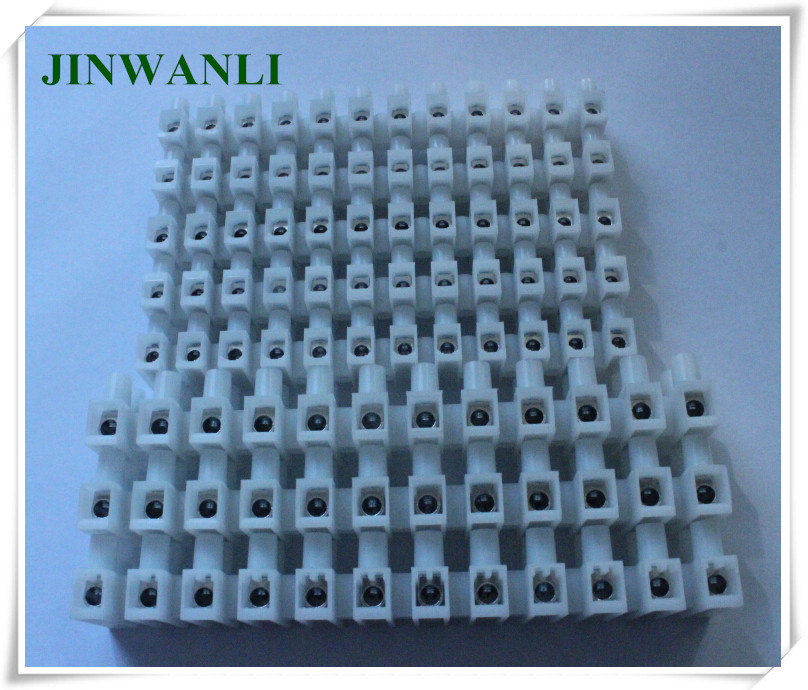

12 Pin Way Pitch 10.0mm Terminal Block Connector Feed Through Type

Name: 12 Pin Way Pitch 10.0mm Terminal Block Connector Feed Through Type
Brand: china-manufacturer-directory.com
SKU: 675580205
Availability: InStock
Rating: 4.9 (119 reviews)

Supplier:	Yueqing City Jinwanli Electronic Component Factory
Price:	US $ 0.14-0.145/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Wer Supply
Environmental Protection:	Resistance to Environmental
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Screws Fixed

Product Description

Model Number: 3AMP, 6AMP, 10AMP, 15AMP, 30AMP, 60AMP, 80AMP, 100AMP, 150AMP

Material: PE /PP/PA Brass insert /Steel screw
Voltage: 250 - 450V
Cable Range: 2.5MM - 40MM

Current: 3AMP - 150AMP
Cable wire: 2.5mm2 - 40mm2
Working Temperature: - 40oC to 180oC
Color: Natural color and black color

Spec.	Length	Width	High	Brass Hole Dia	Pole Middle Length	Screw Size	Plastic
Spec.	mm					Screw Size	Plastic
3AMP 4mm2	92.3	16.8	12.3	3	7.8	M2.5 x 4	PE PP PA
6AMP 6mm2	115.4	18.8	15.4	3.3	9.6	M3.0 x 5	PE PP PA
10AMP 10mm2	129.3	20.7	16.5	4.2	11	M3.0 x 6	PE PP PA
15AMP 12mm2	137.8	22.5	18.6	4.5	11.7	M3.5 x 7	PE PP PA
20AMP 14mm2	138	22.5	19	4.7	12	M4.0 x 6.5	PE PP PA
30AMP 16mm2	164	25.5	20	5.6	13.7	M4.0 x 7	PE PP PA
60AMP 25mm2	186	29.2	25.3	6.6	15.7	M4.0 x 9	PE PP PA
80AMP 35mm2	226.8	36.1	29	7.8	19.2	M5.0 x 11	PE PP PA
100AMP 40mm2	254.6	45	34.7	9	20.5	M6.0 x 12	PE PP PA

Our company is a key electrical accessories manufacturer of terminal blocks and other cable accessories in China.

Our company is located in Yueqing, Wenzhou City, Zhejiang Province. It is a manufacturing and export company, specialized in producing components for kinds of lights, automobile and so on. They have gone through many authentications such as CQC, CE, RoHS. The main products are terminal blocks and wires, cable ties, cable clips, cable glands and copper inserts. They have entered the mafket of most parts in the world including Europe, the Middle East and Latin America. They are of good quality and sell well in many countries.

Our company manufactures products strictly according to IEC and national GB standards, and we have established a complete and improved quality management system according with ISO9002 standard system, We guarantee the products with competitive price, high quality and timely delivery. Besides, we can supply a complete set of after-sales service to our customers and help term expand their local market share.

We welcome you to contact us for more information and we are looking forward to chances of creating a long and mutually beneficial partnership with you. We do hope to cooperate very very well and develop rapidly with our joint efforts for mutual benefits.
