Product Specifications
| Prod Model: |
SDC-3000IP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TV Front-end Equipment |
Product Description

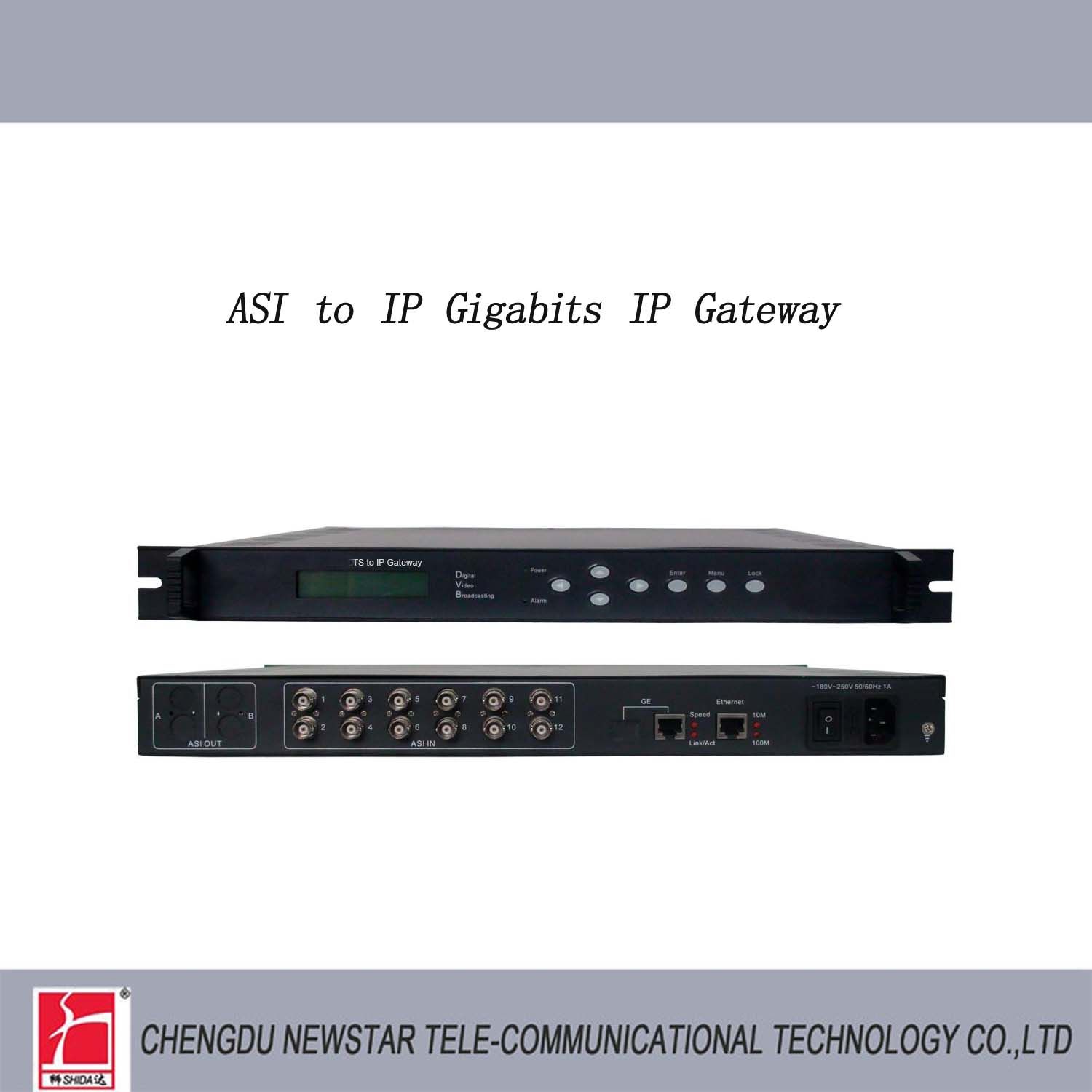

SDC-3000IP ASI to IP Gigabits IP gateway (TS stream to IP stream), is an head-end interface conversion device which is used for DVB ASI and Ethernet. This device can package the TS stream from ASI input IP pack and output them through different IP address. It supports UDP protocol, can simultaneously convert the 12 channel TS stream into 12 channel IP stream at most.
1.2Features
Supporting ASI to IP unidirectional conversion
Supporting 12 channels ASI input.
1 GE port, which supports parallel 1Gbps data output channel
Supporting UDP protocol, uni-cast and multi-cast
Supporting at most12 ASI to IP converting channels. Each channel supports 108Mbps at most, and the maximum total input stream can be 800Mbps.
Supporting LCD * keyboard operation.
Supporting NMS
1.3 Specifications
Interface Input 12 channels ASI input
Output One GE port, RJ45 interface
Transmitting protocol Input DVB-ASI
Output TS over UDP, uni-cast and multi-cast
Transmitting bitrate Max 108Mbps each channel
Max 800Mbps all channels
Miscellaneous Dimension(width*length*height) 482mm/times, 410mm/times, 44mm
Weight 4kg
Temperature 0-45(operation), -20-80(storage)
Power 100-240VAC, 50/60Hz
Consumption 20W
