| Supplier: | Shenzhen Arronna Telecom Co., Ltd. |
|---|---|
| Price: | Negotiable/Piece |
| Min Order: | 10/Piece |
| Quantity:: | |
| Trade Terms: | FOB,others |
|
|
| Prod Model: | ARW-DF(698-2700)-8/10 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: | Lte Antenna |
| Frequency: | 698-2700 |
| Gain: | 8/10 |
| Connector: | Sma |
| Polarization: | Vertical |
| Package: | One Antenna for One Box |
| Delivery Time: | 7days |
| Guarantee Time: | 3years |
| Company: | OEM,ODM Factory |
| Service: | 24 Hours on Line |
| Usage: | Communication Antenna |
| Directionality: | Directional Antenna |
| Operating Wavelength: | Medium Wave |
| VSWR: | 1.5~2 |
| Material: | UV Protected ABS |

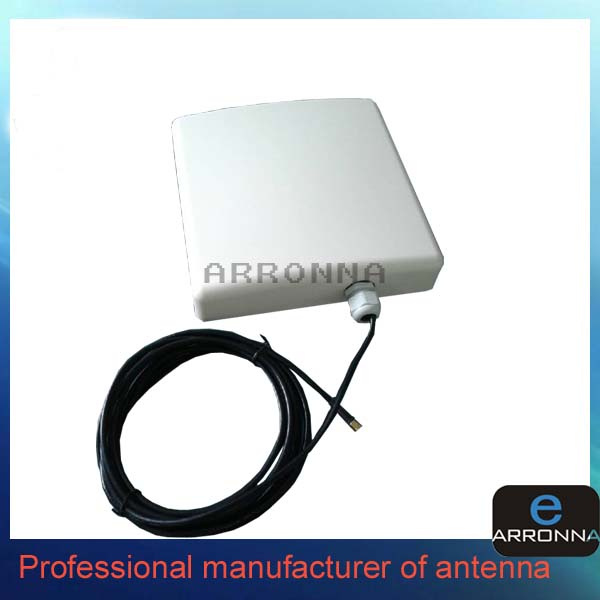

| Product Name | 698-2700MHz single polarization LTE panel antenna |
| Description | ARW-DF(698-2700)-8/10: The panel antenna is designed for point-to-point sent and receive signal. Which through optimization design and careful debugging with follow qualities: good standing wave performance, high gain, broad band, big F/B ratio, strong structure, own the good ability of antihunting, waterproof and anticorrosion; Small size, easy installation, the directional diagram will be unacted whether installate on iron tower or roof. |
| Electric Specification | |
| Model NO | ARW-DF(698-2700)-8/10 |
| Frequency Range-MHz | 698-960/1710-2700 |
| Bandwidth-MHz | 262/990 |
| Gain-dBi | 8/10 |
| Horizontal Bear width-° | 65/50 |
| Vertical Bear width -° | 55/30 |
| F/B Ratio | 15 |
| VSWR | ≤ 1.8 |
| Input Impedance -Ω | 50 |
| Polarization | Vertical |
| Maximum Power -W | 50 |
| Connector | SMA |
| Mechanical Specifications | |
| Dimensions-mm | 238*230*50 |
