Product Specifications
| Prod Model: |
TYA-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Tya-50 |
| Flow Rate: |
3000 Liters/Hr |
| Filter Element: |
Stainless Steel and Washable |
| Filter Size: |
80 Micron, 20 Micron, 5 Micron |
| Warranty: |
2 Years |
Product Description

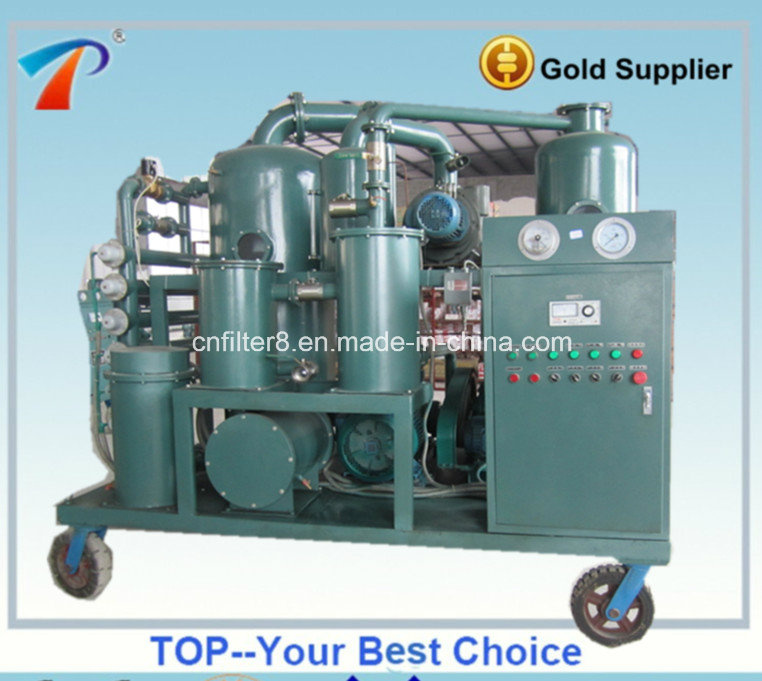

12000 LPH Gear oil purifier for Degassing, dehydration and filtering of oil with variable oil through put in one or several passes(TYA-200)
Product Description
Widely used in metallurgy, machinery, oil field, chemistry, mine, electric power generation plant, transportation and manufacturing enterprises.
Purifying hydraulic oil, gear oil, engine oil, compression oil, freezer oil, coolant oil, heat treatment oil, compressor oil, refrigeration oil, HTO heat transfer oil and other industrial oils.
Features:
For most economical conditioning and drying of all kinds of contaminated oils.
1.Degassing, dehydration and filtering of oil with variable oil through put in one or several passes
2.Adopt back flushing system, which can clear impurities automatically.
3.Double primary filter structure, large capacity for holding particles, multi-stage filtration system to ensure high filtration precision
4. We uses stainless steel filter element which has a good function in anti-corrosive. Especially, the precision of eliminates impurity is high and the service life is long. Also, it has a large volume for storing the impurities.
6. The unique degas and dewater system: Using the 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gas from the oil quickly by the Multi-level water-oil separation technology.
7.Adopts interlocked protective system, which connected oil pump, heater, and oil level sensor, avoiding blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
8.High quality and low noise oil pump
9. Hi-automatization operation, convenience, reliable, and safety
Expectations on an effective oil plant for treating insulating oil:
Low moisture content at plant outlet.
Low gas/air content at plant outlet.
Elimination of residual gas from the insulation.
Drying of transformer insulation.
Easy and failsafe operation.
On-line measuring and recording of process parameters.
Flexibility in application (various oil types and oil volumes)
Choose the most suitable model for your required capacity.
Parameters | Unit | TYA-30 | TYA-50 | TYA-100 | TYA-150 | TYA-200 | TYA-250 | TYA-300 |
Flow Rate | L/h | 1800 | 3000 | 6000 | 9000 | 12000 | 15000 | 18000 |
Working vacuum | MPa | -0.08 ~ -0.099 |
Working Pressure | MPa | ≤0.3 |
Temperature Range | °C | 20 ~ 80 |
Power | | Three Phase 50Hz,380V (can be customized regarding your power condition) |
Working Noise | dB(A) | 70 | 70 | 70 | 75 | 75 | 75 | 75 |
Heating Power | KW | 28 | 30 | 45 | 60 | 75 | 90 | 120 |
Total Power | KW | 35.5 | 37.5 | 52.5 | 71.4 | 86.5 | 102.5 | 135 |
Inlet/Outlet | mm | φ25 | φ32 | φ42 | φ50 | φ50 | φ60 | φ60 |
Weight | Kg | 600 | 800 | 1050 | 1400 | 1800 | 2000 | 2200 |
Overall | Length | mm | 1050 | 1100 | 1200 | 1450 | 1600 | 1800 | 1900 |
Width | mm | 750 | 800 | 950 | 950 | 1100 | 1200 | 1200 |
Height | mm | 1350 | 1400 | 1500 | 1650 | 1800 | 1900 | 1900 |
Guarantee Value of Treated Oils
Item | Unit | After treatment |
Clean | NAS | 6 |
Moisture content | PPM | ≤100 |
Gas content | % | ≤0.1 |
Impurity size | micron | ≤0.5 (no free carbon) |
Packaging & Shipping
Reliable packing & Prompt delivery
Our Services
Trustable technical and after sale service
1. Long-term warranty of 2 years.
2. Provide best necessary spare parts at low price (some for free).
3. Provide timely reply and technical support within 24 hours.
4. OEM is available for TOP Products.
5. Protect your sales area, ideas of design and all your private information.
Company Information
About us:
Chongqing TOP Group, located at Chongqing city-a southwest electromechanical manufacturing center as well as national municipality,owns Chongqing TOP Oil Purifier Co.,LTD and Chongqing TOP Tester Co.,LTD. TOP is a professional leading manufacturer and supplier of oil purifiers and various testers for petrochemical products and power equipment.
TOP Oil Purifiers provide you with reliable insulting oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, transformer oil filtering machine, fuel oil restoration, steam-turbine oil reconditioner,dielectric fluid regeneration system, circuit-breaker oil recovering system, compressor oil recovering machine, gear oil renewal machine, coolant oil treatment, quenching oil reclaiming machine, oil and water separator, steel-rolling oil regeneration equipment, waste automobile oil recycling equipment etc.
TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers,transformer substation electrical testing equipment and circuit detecting equipment. Main products are trace water content testers, fully auto surface/interfacial tension testers, open/closed cup flash point testers, kinematic viscosity testers, oil acidity testers, air release value testers, multifunctional degassing oscillation instruments, dielectric loss testers, insulation oil dielectric strength testers, transformer characteristics comprehensive testers, relay protection testers, cable testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.

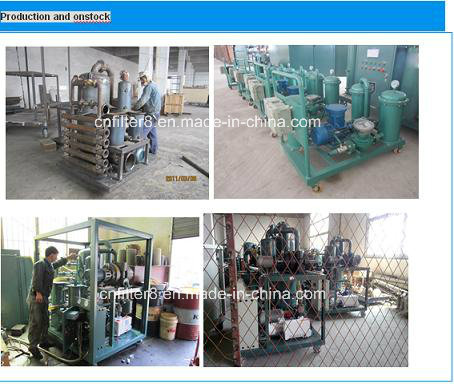

Production and onstock
Oil purifiers:

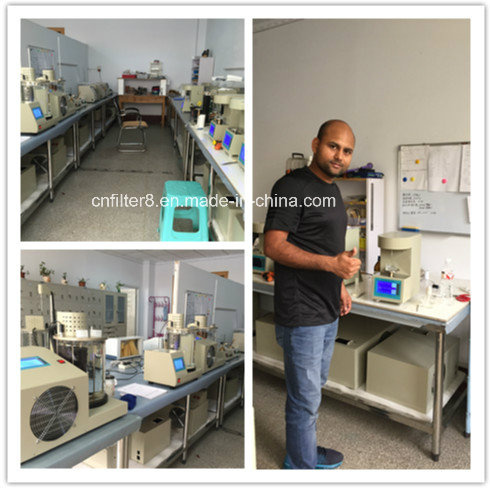

Testers:
