Product Specifications
| Prod Model: |
HQ-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type Of Output: |
Quad Output(AC/DC to DC),Constant Voltage |
| Type Of Power Supply: |
Metal Case Power Supply |
| Application: |
Use for LED Light or Resistance Type of Load |
| Output Type: |
Quad |
| Warranty: |
2 Years |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Output Power: |
120~124W |
| Input Voltage: |
85~264 VAC |
| Energy Transmission: |
Quad Output |
| Brand: |
Dhecn |
Product Description
Features:
· High efficiency, high reliability
· AC input range selected by switch
· Protections: Short circuit / Over load / Over voltage
· Fixed switching frequency at 25KHz
· 100% full load burn-in-test
· 2 years warranty
· Dimension: 199*110*50mm (L*W*H)
Specification:
1) INPUT
· Voltage Range: 88-132VAC / 176-264VAC selected by switch, 240-370VDC 47-63Hz;
· AC Current: 2.8A/115VAC 1.6A/230VAC
· Inrush Current: Cold start 35A
· Leakage Current: <3.5mA/240VAC
2) PROTECTION
· Over Load: 105%-135%; Shut down o/p voltage, re-power on to recover.
· Over Voltage: CH1: 115%-135%; Shut down o/p voltage, re-power on to recover.
3) ENVIRONMENT
· Working Temp. & Humidity: -10º C~+60º C; 20%~90% RH.
· Storage Temp. & Humidity: -20º C~+85º C; 10%~95% RH.
· Vibration: 10~500Hz, 2G 10min. /1 cycle, period for 60min, each along X, Y, Z axes.

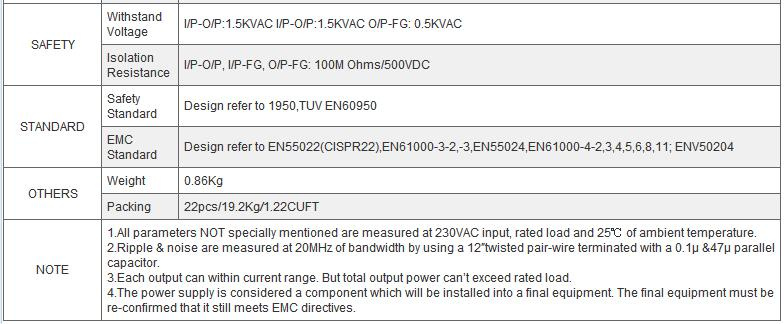

4) SAFETY STANDARDS
· Withstand Voltage; I/P-O/P: 3KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC
· Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100MΩ /500VDC
· Safety Standards: Design refer to UL1950, TUV, EN60950
· EMC Standards: Design refer to EN55022(CISPR22), EN61000-3-2, -3, EN55024, EN61000-4-2, 3, 4, 5, 6, 8, 11; ENV50204

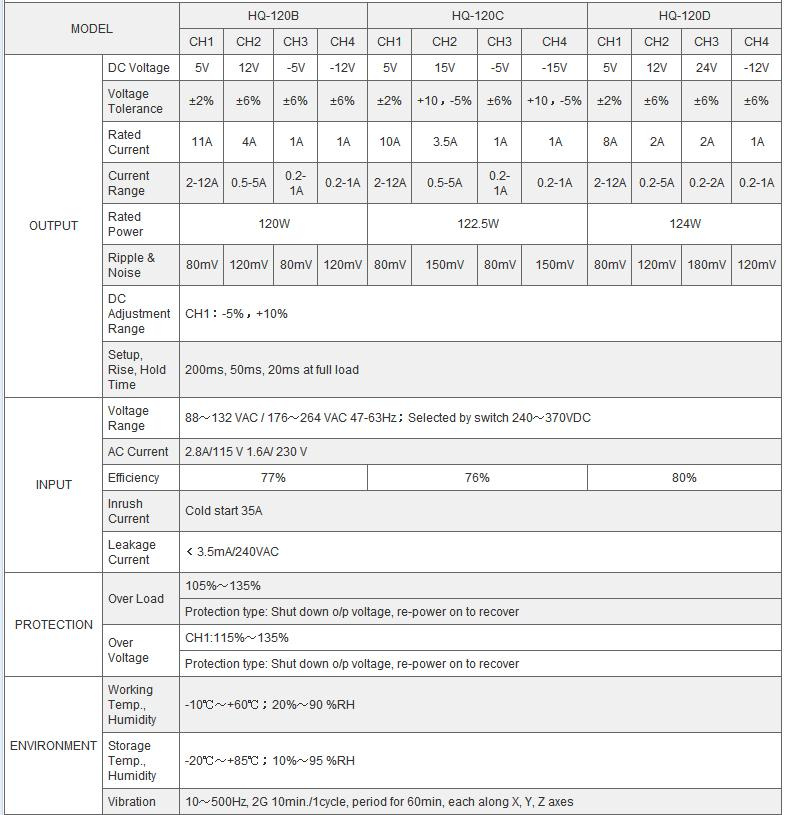

5) Type No Output Tol. R&N Eff.
HQ-120B 5V, 2-12A ± 2% 80mV 77%
HQ-120B 12V, 0.5-5A ± 6% 120mV 77%
HQ-120B -5V, 0.2-1A ± 6% 80mV 77%
HQ-120B -12V, 0.2-1A ± 6% 120mV 77%
HQ-120C 5V, 2-12A ± 2% 80mV 76%
HQ-120C 15V, 0.5-5A -5, +10% 150mV 76%
HQ-120C -5V, 0.2-1A ± 6% 80mV 76%
HQ-120C -15V, 0.2-1A -5, +10% 150mV 76%
HQ-120D 5V, 2-12A ± 2% 80mV 80%
HQ-120D 12V, 0.2-5A ± 6% 120mV 80%
HQ-120D 24V, 0.2-2A ± 6% 180mV 80%
HQ-120D -12V, 0.2-1A ± 6% 120mV 80%
