Product Specifications
| Prod Model: |
PIRSD-HD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Video Resolution: |
1280*720 |
| Pixels: |
1.0 Megapixels |
| WiFi: |
Enable, 802.11 B/G/N |
| Image Sensor: |
CMOS |
| Night Version: |
8m |
| Frame: |
25fps |
| Micro SD Slot: |
Yes |
| Lens: |
4.3mm |
| IR-Cut: |
Support |
| Motion Detect: |
Support |
| Type: |
IP Camera |
| Sensor: |
CMOS |
| Feature: |
Wireless |
| Technology: |
Wireless |
| Kind: |
Autofocus Lens |
| Style: |
PIR IP Camera |
| Horizontal Resolution: |
HD 720p |
Product Description

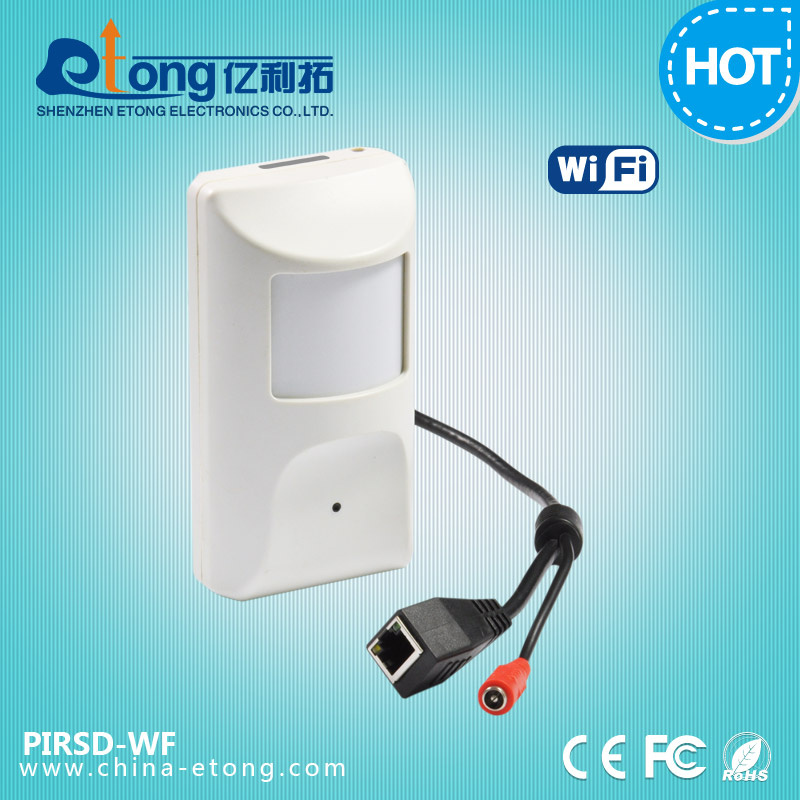

Ipcamera Model: PIRSD-HD
1280*720p H. 264 codec video PIR WIF ipcamera
Introductions:
1. Our True IP Wi-Fi Wireless IP (Internet Protocol) camera systems are skillfully disguised in the form of a normal, everyday product but offer an interference-free, secure, strong, and stable pure digital wi-fi connection to your home or office network via your wireless access point/router.
2. You can also hardwire into your network using a standard ethernet cable. The unit comes standard with a high quality 4.3mm 600TVL CMOS color video camera and an 802.11b/g transmitter.
3. Our wireless IP camera systems are an excellent solution for keeping a watchful eye on your nanny, your home, your business, your warehouse, or your office while you're away.
4. This PIR motion sensor (PIR not functional) blends in perfectly with any environment and nobody will be any the wiser that their every move is being captured.
5. Place it anywhere you need high quality covert video. It came with 940nm invisible night vision lights for up to 8m in total darkness!
Features:
>1. Easy to setup IP cameras with QR code scan supported
>2. Advanced H. 264 video compression technology
>3. Allow user configure Wi-Fi network, video setting, alarm setting.
>4. Supports remote PC recording
>5. Supports 2-way audio communication between local and remote sites
>6. P2P (point-to-point) for easy remote access without networking knowledge need
>7. Wireless Wi-Fi or Wired Ethernet network connection
>8. Invisible night vision LED for night vision covers up to 10m area, to realize 24 hours monitoring.
>9. Motion detection recording, manual recording or schedule recording
>10. Alarming record can be stored by email, FTP server.
>11. It built-in inner web server. Users can browse video through IE, Firefox, chrome and Mac (Safari).
>12. Support mobile Smartphone view remotely (iPhone/Android's smartphone).
>13. CMS client software for remote access/control, record/playback, and monitor up to 64 IP cameras
>14. Supports up to 10 login users at the same time
|
Video |
Image Sensor |
1/4" Megapixel CMOS, color |
|
Video compression |
H.264 high profile, JPEG/BMP snapshot |
|
Signal system |
NTSC/Pal selectable |
|
Lens |
3.7/4.3mm pinhole optional |
|
Min. Illumination |
0.1 Lux (IR OFF), 0 LUX (IR ON) |
|
Frame rate |
30fps NTSC, 25fps Pal |
|
Resolution |
HD (1280x720P), VGA (640x480) |
|
Video adjustment |
Brightness, contrast, & saturation |
|
Video bit rate |
32 Kbps ~ 2.5 Mbps |
|
Pan & Tilt |
No |
|
Zoom |
Digital zoom |
|
IR cut filter |
Yes |
|
Night vision |
Up to 8m in total darkness |
|
Recording & Playback |
Recording mode |
Motion detection, manual, and schedule |
|
Storage |
record to remote PC; video or snapshot |
|
Backup |
Remote back up to PC |
|
Playback |
Playback via real time remote playback; remotely download and playback |
|
Alarm |
Motion detection |
VMD (video motion detection) |
|
Alarm reactions |
Alarm photo email; record photo to FTP |
|
Network |
Network interface |
10/100 Base Ethernet (for wired network connection) |
|
Wireless network |
Wi-Fi 802.11 b/g/n |
|
IP mode |
Dynamic IP address; static IP address |
|
Protocol |
TCP/IP, HTTP, TCP, ICMP, UDP, ARP, IGMP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNT, & RTSP. |
|
Online users |
10 users at the same time |
|
Mobile surveillance |
iPhone, Android |
|
Internet viewing |
Supports browsers: IE, Firefox, Chrome and Safari |
|
Remote access |
Yes |
|
Software |
CMS software |
Central management software for recording, remote monitoring, remote access and control, search and playback, and up to 64 multiple cameras surveillance |
|
User levels for CMS |
Administrator, Normal, & Guest (viewing only) |
|
Camera naming |
Supports camera labeling for distinguishing cameras |
|
Password protection |
Yes |
|
CPU & System |
Operating system |
Embedded Linux OS |
|
Micro processor |
32Bit RISC embedded processor |
|
System requirement |
Microsoft Win98 SE, ME, 2000, XP, Vista, or Windows 7 |
|
Others |
Indoor/outdoor usage |
Indoor |
|
Operating temperature |
-10 ~ 50 °C (+14 ~ 122 °F) |
|
Humidity |
95% RH |
|
Power |
DC12V 1A
|
