Shenzhen Chuangyin Technology Co., Ltd. >> 12kv Indoor Double-Pole Potential/ Voltage Transformer/PT/Vt

12kv Indoor Double-Pole Potential/ Voltage Transformer/PT/Vt

12kv Indoor Double-Pole Potential/ Voltage Transformer/PT/Vt
Price: US $ 230-240/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union

Product Specifications

Prod Model: JDZ18-11RJC; JDZ18-11RVJC; ZJ18-11RJC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Indoor: PT
Application: Switchgear
Type: Voltage Transformer
Phase: Single

Product Description

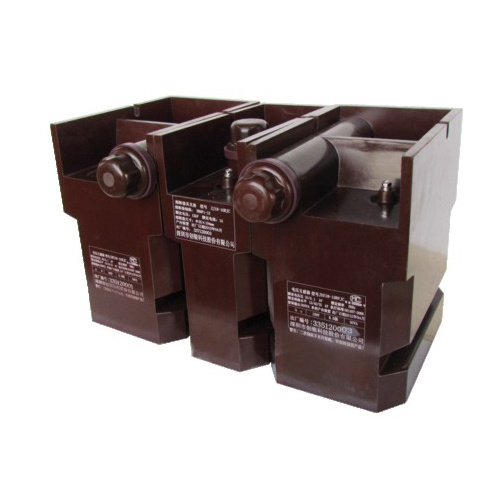

JDZ18-11RJC, JDZ18-11RVJC, ZJ18-11RJC voltage transformer, epoxy resin casting and full enclosed construction, is used indoor switch cabinet to measure the current, electric energy and protective relaying in single phase or three phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV

The iron core adopts advanced cold-rolled silicon steel sheet
High voltage outgoing line of primary winding was fetched out from top of the product, outgoing line of secondary winding was fetched out from transverse side of the product, IEC61869-1&3



Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds split core current transformers, Rogowski coils, energy meter components (CT and relay), medium voltage current transformers, potential transformers, low voltage current transformers and switchgear components.

Passed CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.

Contact us today to know more.

Thank you for your attention and support. Chuang Yin will stay with you to create a better future.
