Product Specifications
| Prod Model: |
LP0111-3400-L(18650-2A) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Date: |
15days |
| Wrranty: |
12months |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
Product Description
12V 3400mah Lithium Battery for Power Tool, Li-ion Rechargeable Batteries
Specifications1. Solar LED lights, digital products
2. Consumer electronics, portable camera, DC LED lamps.

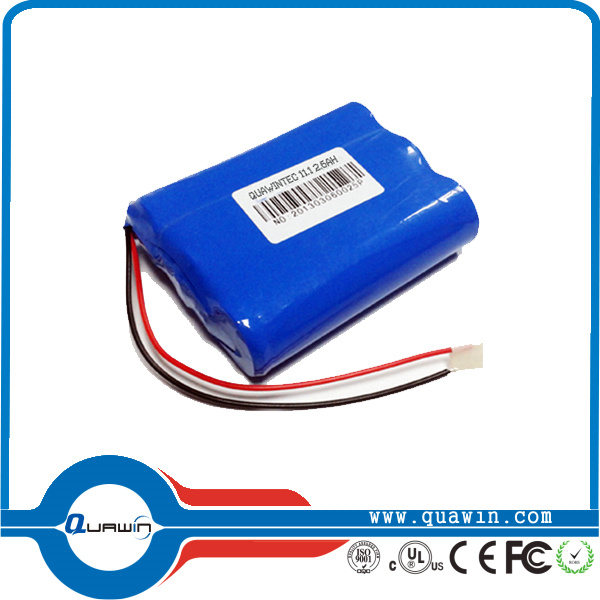

Product DescriptionHigh quality 11.1V 3.4Ah Li-ion rechargeable battery pack which made of 3PCS of 3400mAh cylindrical 18650 cells with a PCB on end.
Description:Cell: 18650 (High quality Panasonic/SANYO/Samsung/LG/Chinese A Grade or as per special requirement )
Capacity: 3400mAh
Voltage: 11.1V
Battery Pack: 3S1P 11.1V 3.4AH
Pack: PVC Shrink tube
Rewired: 18 AWG wire with connector(as per customer's requirement)
Dimensions: H19*W56mm*L67mm
Weight: 180g (About)
Voltage: 11.1V (working) 12.6V ( peak) 7.5V ( cut-off)
Protection: One PCB (8A) installed with the battery pack and protects the battery from
Overcharge (>12.6V)
Overdischarge ( < 7.5 V)
Over drain ( > 2 AMP)
Protection circuit provide such protection as follow:Over charger protection
Over discharge protection
Over Current protection
Short circuit protection (Exterior Short Circuit and can be automatic recovery)
Low resistance
Temperature:Charging temperature: 0 - 45 C degrees
Discharging temperature: -20 - 60 C degrees
Storage temperature: -20 - 45 C degrees
Remark: The cell can be replaced by other available models such as 14430 14500 18490 18500 and so on, we can make all kinds of customized battery packs.
If you have different requirement on technique, shape and so on for the battery pack, we can made-to-order as per your request.
If you have any other needs of our battery pack, please no hesitate to let me know the
Messages below
1. What's the voltage and capacity you want?
2. How about the operating current and peaking current of your machine?
3. The battery will be used for what?
4. How about your quantity?
Attention: If I am not online, please kindly leave a message. I am here waiting for you. Thanks!
Item
| Specification
|
| Nominal Voltage | 7.4V |
| Nominal Capacity | 4000mah(0.2C discharge) |
| Size | customize |
| Weight | approx.230g |
| Composed Type | 2S2P |
| Max Charge Protetion Voltage | 8.5V-8.6V |
| Cut-off Discharge Voltage | 5V-5.6v |
| Charging Current | 0.5C |
| Charging Time | 4-5H |
Charge Method
| CC-CV
(constant current and contant voltage ) |
| Max Discharge Current | 2C |
| Recharge Cycle Life | 800 times |
Working Temperature
| Charge | 0~45°C,45~85%RH |
| Dis-charge | -20~60°C,45~85%RH |
| StorageTemperature | One month | -20~60°C,45~85%RH |
| and Humidity | Three months | -20~45°C,45~85%RH |
| | One year | -20~25°C,45~85%RH |
Protection Fuctions
| Over charge, Over discharge,
Over load, Short Circuit |
| Warranty | full 12 months |
Quality is our priority, win by quality" which is the origin of the our company name --Quawin.
We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.
As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.
We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.
We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.
To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
