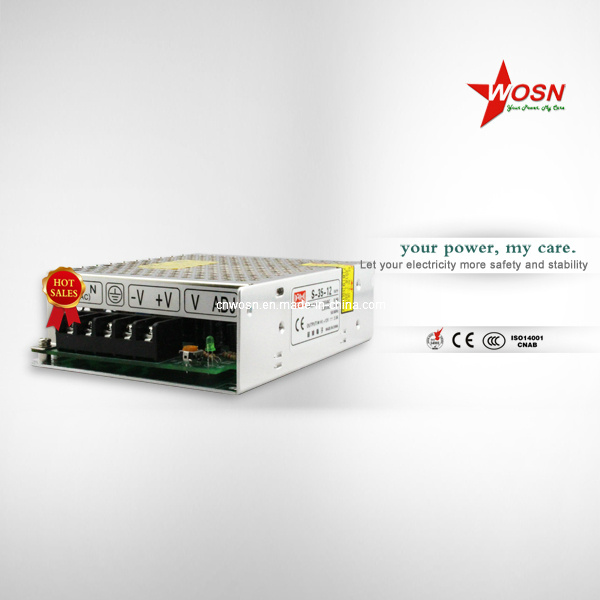

Product Specifications
| Prod Model: |
S-35-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Voltage: |
12V |
| Output Frequency: |
47~63Hz |
| Output Current: |
0~3A |
| Color: |
Metal |
| Power Supply Type: |
Compact Single |
| Protection: |
Short Circuit/Over Load/Over Voltage |
| OEM: |
Accept |
| Keywords: |
Switching Power Supply |
| Efficiency: |
76% |
| Port: |
Ningbo Port |
| Output Type: |
Single |
| Output Power: |
1 - 50W |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Warranty: |
2 Years |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
| Input Voltage: |
85-132VAC/170-264vacselected by Switch47-63Hz,240- |
Product Description
Product Description
-AC input voltage range selected by switch
-Small volume,low weight,high efficiency
-Protections:short circuit/over load/over voltage/over temp
-Built-in cooling DC fan
-Cooling fan ON-OFF auto control
-LED indicator for power on
-100% full load burn-in test
-2 Years warranty
|
Model Specification |
S-35-5 |
S-35-12 |
S-35-15 |
S-35-24 |
|
DC output voltage |
5V |
12V |
15V |
24V |
|
Output voltage error(Note,2) |
±2%
|
±1% |
±1% |
±1% |
|
Rated output current |
7A
|
3A |
2.4A |
1.5A |
|
Output current rage |
0-7A
|
0-3A |
0-2.4A |
0-1.5A |
|
Wave and noise(Note ,3) |
75mVp-p |
100mVp-p |
100mVp-p |
100mVp-p |
|
Inlet stability(Note ,4) |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
Load stablity (Note ,5) |
±1% |
±0.5% |
±0.5% |
±0.5% |
|
DC output power |
35W |
36W |
36W |
36W |
|
Efficiency |
70% |
76% |
78% |
78% |
|
Adjustable range for DC voltage |
+10,-5% |
+10% |
+10% |
+10% |
|
AC input voltage range |
85-132VAC/170-264VACSelected by switch47-63Hz,240-370VDC |
|
Input current |
0.5A/115V 0.25A/230A |
|
AC INnrush current |
Cold-start current15A/115V 30A/230V
|
|
Leakage current |
<0.5mA/240VAC |
|
Overload proctection |
105%-150%Type:Foldback:current limiting reset:auto recovery |
|
Over-voltage protection |
^^^^ |
|
High-temperature protection |
^^^^ |
|
Temperature coefficient |
±0.03%/°C(0-50°C) |
|
Setup rise hold up time |
200ms,100ms,30ms |
|
Vibration |
10-500HZ,2G 10min,/1cycle,Period for60min,Each axes |
|
Withstand voltage |
Input and output internal,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure0.5KVAC |
|
Isolation resistance |
Input and output internal:Input and enclosure,Output and enclosure,500VDC/100MΩ |
|
Working temperature and humidity |
-10°C~+60°C(Refer to output derating curve),20%~90%RH |
|
Store temperature and humidity |
-20°C~+85°C.10%~95%RH |
|
Overall dimension |
129×98×38mm |
|
Weight |
0.4Kgs |
|
Safety standards |
Meet UL 1012 requirement(Not apply for the mark) |
|
EMC standards |
Meet FCC part15J Conduction classB |
|
Note 1.The testing condition for the paramenter above is ,230VAC input,rated load,25°C70% RH.Humidity. 2.Error.include the setting error,line stability and load stability.(Note:5). 3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting. 4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage. 5.Load stability test:the load is from 0% to 100%. |
