Product Specifications
| Prod Model: |
NPFG80-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Red |
| Type: |
Lead-Acid Batteries |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
Low Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
12V |
| Usage: |
Telecom |
Product Description

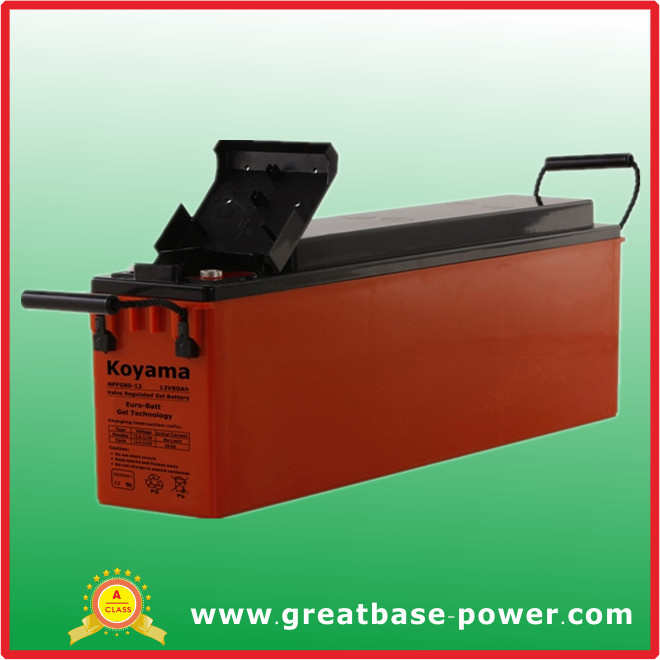

NPFG80-12---80ah 12V front terminal Gel battery
Euro-battery gel battery
-Excellent deep discharge recovery capability
-much better thermal stability
Front access Terminal battery
Sealed lead acid battery
Eurobatt batteries
Lead acid battery
UPS Battery
Stand by battery
NPF SERIES Front Access Terminal Batteries for Telecom/IT Applications
Gel battery
Telecommunications battery
Specification
-Battery Type: Eurobatt Batteries-Front Access Terminal Gel batteries
-Standard: JIS, DIN, IEC & BS6290-4
-Model No.: NPFG80-12
-Nominal Voltage: 12V
-Nominal capacity: 80 Ah
-Dimension: L562*W114*H188*TH188MM
-Weight: 25.2kgs
-Terminal: Threaded post -T3
Koyama NPFG SERIES Front Access Terminal Gel Batteries for Telecom/IT Applications
Description
NPFG (Front Access Gel) Series is especially designed for telecommunication use with 10+ years design life in float service. By combining the newly developed paste formula with up-to-date AGM structures and gel technology, this range features 12 years design life and Front Access connection for fast, easy installation and maintenance. This series is highly suited for telecom applications, UPS systems and other back up applications.
Features
-12 years design life at floating condition
- Easy installing & saving Space
With front access terminals, it's easy to install and take voltage readings during service.
-High Energy Density
It offers high reliability and delivers superior performance while occupying less space and increasing energy density.
- Electrolyte Uniform Distribution
Gel series battery is manufactured with high-quality gaseous silica to make the electrolyte in uniform Distribution.
-No Leakage
Curdled gaseous silica used in Gel batteries can immobilize the electrolyte and make the plates react evenly.
- Excellent Discharging Ability
Radial grid design & tight assembly technology ensures an excellent high-rate discharge performance
-Low Self Discharge
Using high purity raw materials and gel electrolyte ensures MCA batteries have less self-discharge.
-Environmental & Non-polluting
Gas Recombination technology ensures the battery high seal reacting rate, which can prevent the acid fog from separating out.
- Safe & Reliable
Efficient venting system automatically releases excess gas when the pressure rises above the normal level & reseals the valves when it returns to the normal rate, which can protect the battery from bursting.
Applications:
-19-inch/23-inch standard power supply cabinets
-Communication Systems: Switch, Microwave Stations, Mobile Base Stations, Data Centers, Radio and
Broadcasting Stations
-Power Supply System used for Special or Local Area Network(LAN)
- Signal System & Emergency Lighting Systems
- EPS & UPS Systems
-Broadband
-Fire Alarm and Security System
-Replacement Open-type Stationary
Certificates: ISO9001&14001, CE, UL
Standard: JIS, DIN, IEC & BS6290-4
We are one of the leading manufacturers of Deep Cycle batteries for more than 20 years in Guangdong, China. All batteries are excellent quality, well recognizing worldwide and with reasonable Prices. Any inquiries or query would be replied at the earliest date.
|
Model NO. |
Nominal |
Rated |
Dimensions(±2mm) |
Weight (Kg) ±5% |
Terminal Type |
|
Voltage |
Capactiy |
|
(V) |
(Ah) |
Length |
Width |
Height |
Total |
|
|
|
Height |
|
NPFG55-12 |
12 |
55 |
277 |
106 |
223 |
223 |
16.1 |
T2 |
|
NPFG80-12 |
12 |
80 |
562 |
114 |
188 |
188 |
25.2 |
T3 |
|
NPFG100-12 |
12 |
100 |
507 |
110 |
223 |
223 |
30.7 |
T5 |
|
NPFG105-12 |
12 |
105 |
394 |
110 |
286 |
286 |
31.2 |
T5 |
|
NPFG125-12 |
12 |
125 |
552 |
110 |
239 |
239 |
38.2 |
T5 |
|
NPFG150-12 |
12 |
150 |
551 |
110 |
288 |
288 |
44.8 |
T5 |
|
NPFG160-12 |
12 |
160 |
551 |
110 |
288 |
288 |
45.3 |
T5 |
|
NPFG175-12 |
12 |
175 |
546 |
125 |
316 |
324 |
54.1 |
T5 |
|
NPFG180-12 |
12 |
180 |
561 |
125 |
316 |
316 |
54.6 |
T5 |
