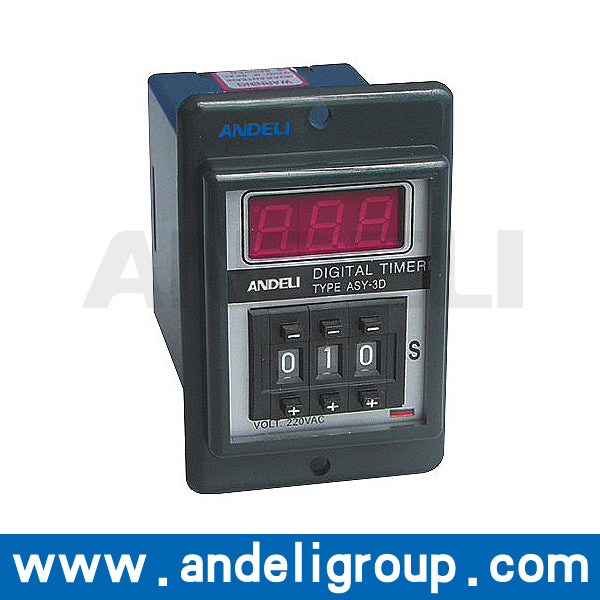

Specification Model: ASY-2D ASY-3D H3Y-(ST6P)
Reset Time: 0.3 sec max 0.3 sec max 0.2 sec max
Consumed Power: 5VA 5VA 3VA
Ambient temperature: -10oC~+55oC
Ambient Huminity: 48~85% RH
|
Classification |
Digital Timer |
Digital Timer |
Timer |
|
Specification Model |
ASY-2D |
ASY-3D |
H3Y-(ST6P) |
|
Dimension |
88H × 58W × 68D |
88H × 58W × 68D |
28H × 21W × 52.6D |
|
Mounting & Socket |
Surface(-N) |
PF083A |
PF083A |
PYF08A(E) |
PYF14A(E) |
|
Flush(-Y) |
US-08 P3G-08 |
US-08 P3G-08 |
With Y-20 adapter |
|
Full Timing Range |
SEC: 9.9,99
MIN: 9.9,99
HR: 9.9,99 |
SEC: 9.99,99.9,999
MIN: 99.9,999
HR: 99.9,999 |
SEC: 1,3,5,10,30,60,120
MIN: 3,5,10,30,60
HR: 3 |
|
Rated Voltage (V) |
AC: 12,24,110,220,240
50/60Hz
DC: 12,24 |
AC: 12,24,110,220,240
50/60Hz
DC: 12,24 |
AC: 12,24,110,220,240
50/60Hz
DC: 12,24 |
|
Indicator Operating |
After contact transfer |
After contact transfer |
Power, up Operating |
|
O/P Contact |
Model |
ASY-2D |
ASY-3D |
|
|
Time Limit 1C |
|
|
|
|
Time Limit 2C |
5A |
5A |
|
|
Instantaneous 1C |
|
|
|
|
Life |
Mechanical |
5 × 106 Times |
5 × 106 Times |
5 × 106 Times |
|
Electrical |
105 Times |
105 Times |
105 Times |
|
Accuracy |
Repeat Error |
±0.05% max |
±0.05% max |
±3% max |
|
Setting Error |
0 |
0 |
- |
|
Voltage Error |
±0.05 Sec |
±0.05 Sec |
±2% max |
|
Temp Error |
±0.05 Sec |
±0.05 Sec |
±5% max |
|
Reset Time |
0.3 sec max |
0.3 sec max |
0.2 sec max |
|
Consumed Power |
5VA |
5VA |
3VA |
|
Ambient temperature |
-10oC~+55oC |
-10oC~+55oC |
-10oC~+55oC |
|
Ambient Huminity |
48~85% RH |
48~85% RH |
48~85% RH |
|
Weight |
230g |
230g |
45g |
