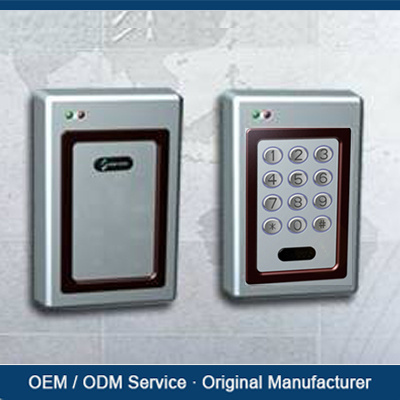

CV9600(S)-X-XX is economic access control terminal. It's a contactless reading Mifare Secure Sector or read only (UID) device that supports ISO14443A Mifare.
CV9600T(S)-X-XX is access control terminal with events recording function. It's a contactless read Mifare Secure Sector or read only (UID) device that supports ISO14443A Mifare.
The terminal features with stand-alone mode, network mode via RS485 or build-in TCP/IP; 512 cardholders can be registered, and event records reach up to 1, 000 [CV9600T(S)-X-XX]; Work modes include Card only, PIN only, or Card + PIN with backlight keypad.
The terminal features toggle function, so the door could be opened for a specific period of time and closed by presenting card, it's suitable for frequent access place such as hotel, classroom, hospital, etc. It also features an external reader for anti-passing back (Wiegand port) for high security.
Several kinds of software platform is available by China-Vision application software or SDK via COM (Component Object Model) interface for customer's further development in short time.
Advantages
Stand-alone mode and network mode
Vandal resistant for harsh environment (0F/1F casing)
Guarantee that the record does not lose
Adjust Controller time
Dual function: Access control with real time clock and 1, 000 events [(CV9600T(S)-X-XX]
Build-in TCP/IP interface optional for networking
Up to 512 user, including one master card
Card, Card + Pin, Pin mode
External reader for anti-passing (Wiegand port)
Housing sabotage alarm
All I/OS and operating times user keypad programmable
Toggle mode of door opening for a specific period of time, suitable for frequently in/out place [CV9600(T)(S)-X-1C]
Self diagnostics
Watch-dog timer & power on reset
Duress alarm in case of emergency
| Model | CV9600(T)-X-XX | CV9600(T)S-X-XX |
| Supporting card | Mifare and other ISO14443A compatible card |
| Read and write | Read data from user defined sector of Mifare card | Read only UID of Mifare and other ISO14443A card |
| Power Supply | 9V DC (9-24V), <150mA |
| Cardholder | 512, including one master card |
| Events | 1,000 records with real time clock (RTC)[CV9600T(S)-X-XX] |
| Stand alone | Yes |
| Network | Yes, via RS485 (up to 98 units) or build-in TCP/IP |
| Communication | 9600-115200 bit/s(default 9600) |
| APB | External Wiegand 26/34 reader |
| Operation Mode | Card, Card + Pin, Pin |
| Memory | 32K Byte EEPROM |
| Alarm | 1) Door non-closed detection | 3) Door broken alarm |
| 2) Housing sabotage alarm | 4) Duress alarm in case of emergency |
| Keypad | 3*4 keypads with backlight |
| Input device | 2 inputs (exit button, door state sensor) |
| Output device | 2 relay outputs |
| Readingdistance | 50mm(depending on transponder) |
| Indicators | Buzzer and LED |
| Housing Material | PC for CV9600(T)(S)-X-0D,Zn-Fe alloy for CV9600(T)(S)-X-0/1F, others ABS |
| Indoor / outdoor | Both, potted version (IP65) available on request |
| Temperature range | -20°C~ +60°C/ -4°F~ +140°F |
| Relative humidity | 10-95% (non condensing) |
