Product Specifications
| Prod Model: |
RYC-RK03-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Part Number: |
Ryc-Rk03-12 |
| Working Voltage: |
DC12V |
| Receiving Frequency: |
315MHz |
| Receiver Sensitivity: |
-95db |
| Maximum Load: |
7A |
| Encoding Type: |
Fixed Code |
| Key Words: |
Wireless Remote |
| Application: |
Audio / Video Players |
| Signal Transmission: |
RF Remote Control |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
50-100m |
| Voltage: |
12V |
Product Description

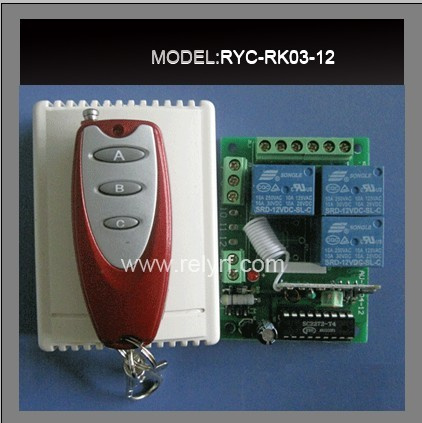

12-volt three-way wireless remote control switch RYC-RK03-12
Model RYC-RK03-12
I. Features:
1. Mainly used: Remote control electric doors, windows, switches, security lighting and other industrial or remote areas.
2. Four outputs, independent output, but also non-lock and interlock output.
3. By way of plug pin jumper easily jog, interlocking, self-locking three operating modes for
Easily switch.
4. Easy to use replacement chip chip holder can be easily replaced jog, interlocking, self-locking all kinds of chips,
In order to meet various needs.
5, receiver sensitivity, remote control distance of up to 50-100 meters or more.
6, using a large-capacity relay, can control the appliances and equipment on the kilowatts.
7. Using wireless coding technology, no direction, switches without disturbing each other;
Second, the main technical indicators:
Working voltage DC12V
Receiving frequency 315MHz
Receiver Sensitivity-95dB
Work jog, interlocking, self-locking
Maximum load 7A
Fixed encoding type
Encoding pad
Third, the wiring instructions
1, 4, 7, 10 is often the beginning
2, 5, 8, 11 for public terminal
3, 6, 9, 12 is normally closed terminal
