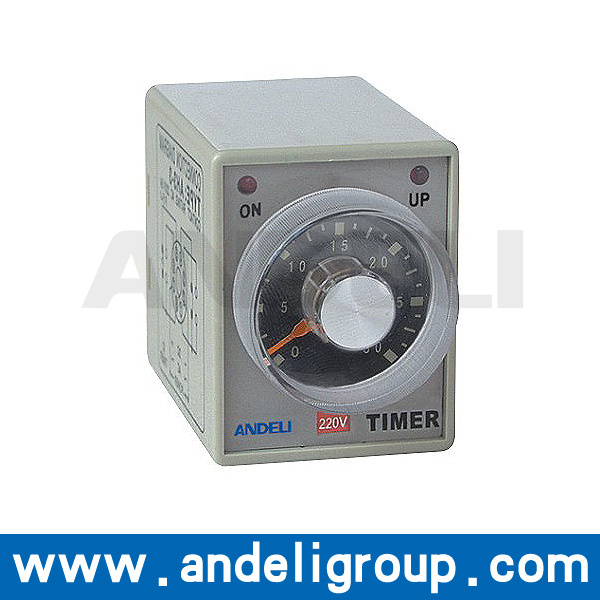

12V Timer Switch Multi Range Timer (AH3)

Name: 12V Timer Switch Multi Range Timer (AH3)
Brand: china-manufacturer-directory.com
SKU: 607134054
Availability: InStock
Rating: 4.9 (123 reviews)

Supplier:	Andeli Group Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	AH3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	AC12, 24, 110, 220, 240 ,380V. DC12, 24V
Theory:	Mechanical
Usage:	Industrial
Type:	Timer
Function:	Addition Counter
Carry Mode:	Synchronous Counter
Carry Base:	Module-n Synchronous Counter
Mechanism:	Electronic

Product Description

Why choose us?

1.20 years - Andeli Group Co., Ltd is founded in 1993.
2.12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3.300 cooperating companies - We have over 300 cooperating companies.
4.3000 workers - We have over 3000 workers.
5. USD150, 000, 000 - The total assets is USD150, 000, 000.
6.235, 000 square meters - The area of Andeli is 235, 000 square meters.
7. Certification - We have passed ISO9001: 2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

Classification			Multi Range Timer			Multi Range Timer			Multi Range Timer
Specification Model			AH3-3			AH3-B			AH3-NB
Dimension			50H × 40W × 57.5D			50H × 40W × 57.5D			50H × 40W × 57.5D
Mounting & Socket		Surface(-N)	PF083A (E)			PF083A (E)			PF083A (E)
		Flush(-Y)	US-08 P3G-08			US-08 P3G-08			US-08 P3G-08
Full Timing Range			SEC:1,3,6,10,12,30,60 MIN:3,6,10,12,30,60 HR:3,6,10,12,30			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H			A:1S,10S,1M,10M B:3S,30S,3M,30M C:6S,60S,6M,60M D:1M,10M,1H,10H E:3M,30M,3H,30H
Rated Voltage (V)			AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24			AC: 24,110,220,240,380,50/60Hz DC: 12,24
Indicator Operating			ON-UP operating			ON-UP operating			Time operating flicker
O/P Contact	Model		AH3-1	AH3-2	AH3-3	AH3-1	AH3-2	AH3-3	Model A/B
	Time Limit 1C		5A		5A			5A		5A
	Time Limit 2C			5A		5A			5A
	Instantaneous 1C				5A		5A	5A		5A
Life	Mechanical		5×106?Times			5×106?Times			5×106?Times
	Electrical		105?Times			105?Times			105?Times
Accuracy	Repeat Error		±1% max			±1% max			±1% max
	Setting Error		±10% max			±10% max			±10% max
	Voltage Error		±1% max			±1% max			±1% max
	Temp Error		±2% max			±2% max			±2% max
Reset Time			0.1 sec max			0.1 sec max			0.1 sec max
Consumed Power			3VAC			3VAC			3VAC
Ambient temperature			-10oC~+55oC			-10oC~+55oC			-10oC~+55oC
Ambient Huminity			48~85% RH			48~85% RH			48~85% RH
Weight			160g			160g			160g

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.

With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.

Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.

Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.

Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
