Product Specifications
| Prod Model: |
HW-212 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Battery: |
Lithium Battery 6ah |
| LED Lamp(with Sensor): |
Epistar From Taiwan with High Brightness |
| Lamps Material Of Main: |
Aluminium Alloy |
| Charge Time: |
6 Hours(by Sun) |
| Discharge Time: |
8 Hours(Full Power) |
| Certificate: |
CE/RoHS/IP65 |
| Warranty Period: |
2 Years |
| Keywords: |
12W Integrated Solar Energy System LED Garden Ligh |
| Light Source: |
LED Lamp |
| Lamp Body Material: |
Aluminum Alloy |
| Light Type: |
Solar |
| Color Temperature: |
Warm White |
| Power: |
11W-15W |
| Illumination Time: |
6h |
| Cell Type: |
Ni-MH Battery |
| Charging Time (',H): |
6 |
| Usage: |
Garden |
| IP Rating: |
IP65 |
| Certification: |
RoHS |
| With Light Source: |
With Light Source |
| Voltage: |
18V |
Product Description

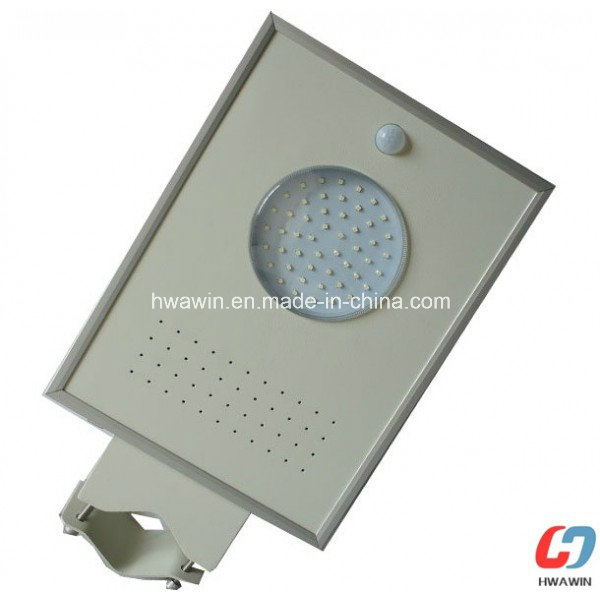

12W Integrated Solar Energy System LED Garden Light
Our integrated solar street light which integrates the green-energy parts solarpanel, LED lamp and the Li-Fe battery into a single product, is with human intelligence induction system to gain the solution of low-energy, long-time, high-luminance and free maintenance. And the same time, it's convenient in the shipment and installation.
Advantages:
- a. All In One Integrated Design(Put Solar Panel, LED Lamp, Battery and Controller in One Box)
- b. Without Any Cable, Easy to Install and Ship
- c. Longer Service Life
- d. Easy to Maintain and Replace Traditional Lights
- e. Save Energy and Eco-friendly
- f. Support Long Working Time Up To 3-4 rainy days Once the Battery Full Charged
- g. Waterproof Grade IP65 for Outdoor Application
- h. Resist any Bad Weather Condition and Working Temperature Range from -20°C to 60°C
Purpose:
To be installed in the garden, residential area, courtyard, road, mine area or
Parking area or provide the light in roads where it's necessary, the battery provide
The energy for lighting, and the solar panel charge for the battery.
Product parts:
The product is made up with the integrated parts (solar panel, Li-Fe battery, LED,
MPPT controller and human intelligence induction system) and the light pole.
Working characters:
The solar panel converts sunlight into electricity and stored in Li-Fe battery via
Controller, the LED light will work in night automatically by light sensor control,
And provide light for the darkness area, the human intelligence induction system can save the energy when the lighting is not necessary
Integrated Solar Garden Light(12W) |
Model: HW-212 |
Solar panel |
Max Power |
18v 20w(high efficiency monocrystalline silicon) |
Life Time |
25 years |
Battery |
Type |
Lithium battery 6AH |
Life Time |
5 years |
Led lamp(with sensor)
|
Max Power |
12v 12w |
Led chip brand |
Epistar from Taiwan with high brightness |
Lumen(LM) |
1200-1280lm |
Life Time |
50000 hours |
Metal spray pain, surface of fluorocarbon spray paint |
Lamps material of main |
aluminium Alloy |
Charge time |
5-6 hours(by sun) |
Discharge time |
8 hours(full power) |
More than 20 hours (half power) |
Certificate |
CE/ROHS/IP65 |
Warranty period |
2 years |
Packing& Weight |
Product/Packing Size |
528.5*325*90mm/560*385*140mm |
Product/Packing Weight |
5.9KG/6.3kg |
Packing Box |
neutral |
Carton Size |
560*600*400mm |
Quantity/Carton |
4 sets/carton |
GW. for Carton |
25kg |
Packs Containers |
20GP |
800pcs |
40GP |
1600pcs |
