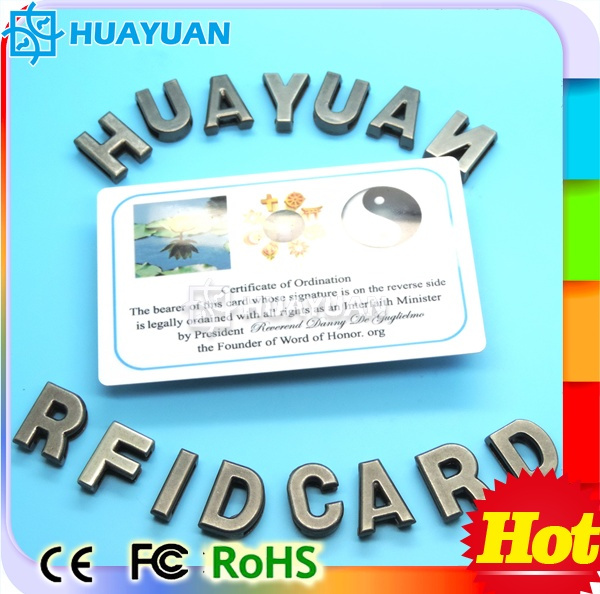

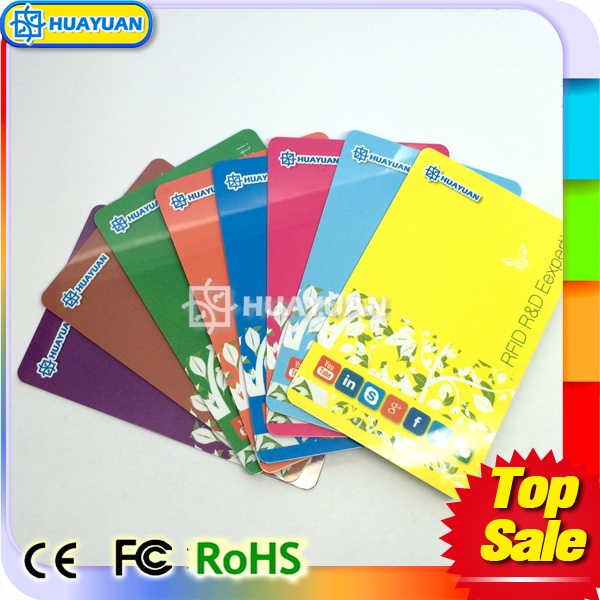

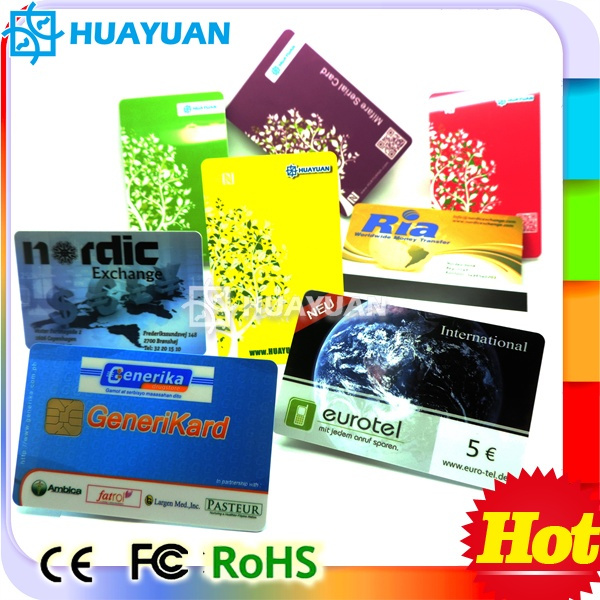

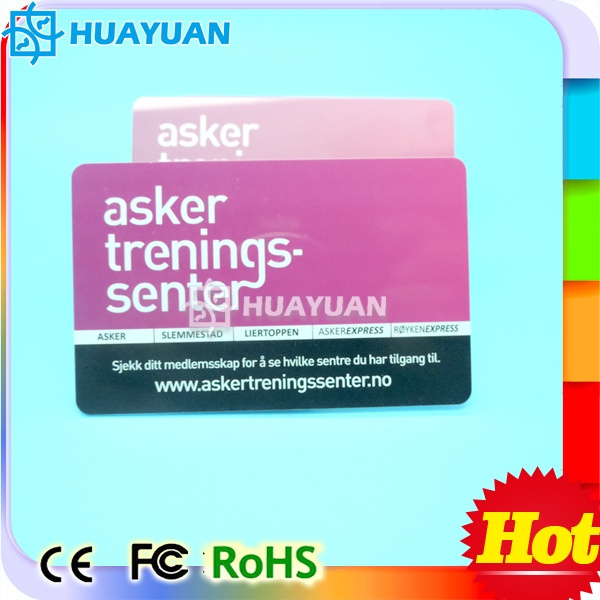

13.56MHz Printed RFID MIFARE 1K S50 RFID Smart Card
| Price: |
US $ 0.3-0.35/Piece |
| Trade Terms: |
FOB,CFR,EXW |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
Free Samples can send for testing!
Application : Hotel lock,membership/vip/loyalty management,access control,time attendance,payment etc
Hico2750oe,4000oe,Loco300oe, 600oe
Material :Plastic
Size: 86*54mm(MIFARE® are registered trademarks of NXP B.V.) MIFARE® Series are available:
NXP MIFARE Ultralight®, MIFARE Classic® Mini, MIFARE Classic® 1K, MIFARE Classic® 4K
NXP MIFARE® DESFire® EV1 2K, MIFARE® DESFire® EV1 4K, MIFARE® DESFire® EV1 8K
NXP MIFARE Plus® 2K, MIFARE Plus® 4K
NXP ICode2, ICODE SLI-S
Advantage:
1. Feature: Good encryption, with higher security
2. Application: E-purse, Cashless payment.access control.
You guys will be more clearly with below form:
13.56mhz MIFARE® card
| The following NXP chip types are also availabe for making smart cards |
| Chip Type | Protocal | Memory | Frequency | Write Endurance (cycles) | Data Retention (yrs) |
|
|
| MIFARE Ultralight® | ISO 14443A | 64byte | 13.56MHz | 10 000 | 10 |
| MIFARE Ultralight® EV1 | ISO 14443A | 80/164byte | 13.56MHz | 10 000 | 10 |
| MIFARE Ultralight® C | ISO 14443A | 192byte | 13.56MHz | 10 000 | 10 |
| MIFARE Classic® 1K | ISO 14443A | 1024byte | 13.56MHz | 200 000 | 10 |
| MIFARE Classic® 4K | ISO 14443A | 4096byte | 13.56MHz | 200 000 | 10 |
| MIFARE Plus® S 2k | ISO 14443A | 2048byte | 13.56MHz | 200 000 | 10 |
| MIFARE Plus® S 4k | ISO 14443A | 4096byte | 13.56MHz | 200 000 | 10 |
| MIFARE Plus® X 2k | ISO 14443A | 2048byte | 13.56MHz | 200 000 | 10 |
| MIFARE Plus® X 4k | ISO 14443A | 4096byte | 13.56MHz | 200 000 | 10 |
| MIFARE® DESFire® EV1 2K | ISO 14443A | 2048byte | 13.56MHz | 500 000 | 10 |
| MIFARE® DESFire® EV1 4K | ISO 14443A | 4096byte | 13.56MHz | 500 000 | 10 |
| MIFARE® DESFire® EV1 8K | ISO 14443A | 8192byte | 13.56MHz | 500 000 | 10 |
Dimension: | CR80 86 x 54mm |
| Thickness: | 0.84mm, 0.8mm, 0.5mm |
| Material: | PVC/PET/Paper |
| Card Surface | Matte/ gloss finish |
| Printing Option | Full color offset printing, Silk-screen printing, Silver/Gold silk-screen printing background |
| Options on standard card: | Magnetic Stripe Option: 300oe, 2750oe, 4000oe
Numbering: Jet dot/ Thermo transfer/ Laser engrave
Barcode printing
Signature panel
Embossing |
| Application | Access control, time attendance, ticketing, access-control, payment and any other application where the integrity and security of the data stored is vital. |
| 125KHz Chips: | EM4100 / H4100 / TK4100 / SMC 4001 |
| EM4102 / H4102, EM4200 |
| EM4205, EM4305, EM4450, EM4550 |
| T5557 / T5567 / ATA5567 |
| Hitag1, Hitag2, HitagS |
| 13.56MHz Chips: | LEGIC MIM 256, LEGIC MIM 1024, LEGAT2048 |
| MIFARE 1K S50 / MF1 S50, MIFARE 4K S70 / MF1 S70 |
| MIFARE PLUS S 2K, MIFARE PLUS S 4K, MIFARE S20 |
| MIFARE ULTRALIGHT, MIFARE ULTRALIGHT C |
| MIFARE DESFire, MIFARE DESFire EV1 8K (MF3 IC D81) |
| MIFARE DESFire EV1 4K (MF3 IC D40) |
| MIFARE DESFire EV1 4K (MF3 IC D41) |
| MIFARE 1K-Compatible / FUDAN 1K / TKS50 |
| I. CODE SLI SI2 / I. CODE 2, I. CODE 1, LRIS2K, LRI64 |
| Tag-IT Ti2048, Tag-IT Ti256 |
| INSIDE Picopass 32KS, INSIDE Picopass 2K |
| ST SR176, SRI512, SRIS4K |
Material: PVC, PET, PETG, ABS, PC Tensile, and special papers.
Dimension: 85.5*54.5*0.76mm (CR80)
Applications:
- Membership Loyalty System
- Promotion
- Hotel locks
- Payment
OPTIONAL PRODUCE
Printing:
- Logo/Graphics/Photo
- Serial Number
- DOD Number
- Barcode printing
- Overlay Foil
- Signature Panel
- Name Personalisation
- Photo Personalisation
Magstripe:
- LoCo300
- HiCo2750
- Magstripe Encoding
Various:
- Hologram
- Security Printing
CHIP AVALIBLE
- Chip include or exclude
Read More
What is a smart card?
A Smart Card is a plastic card with a form of data embedding (Chipsets, Magnetic stripes, printing etc.) that has the ability to store, use, and process information when interacting with its digital counterpart, for example, a Credit Card has information stored on it about one's bank details, and creates an electronic infrastructure when interacting with a card machine, by using a card to initiate a process inter-bank.
| Prod Model: |
RFID card, smart card, MIFARE 1K S50 card |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
RFID Card, Smart Card, MIFARE Card |
| Size: |
86 X54 X0.84mm |
| Chip: |
MIFARE Classic 1K, MIFARE Classic 4K |
| Materials: |
PVC |
| Applications: |
Access Control, Payment, Hotel Door Lock |
| MOQ: |
300PCS |
| Delivery Time: |
5-7 Days |
| Optional: |
Logo, Graphics, Serial Number |
| Magnetic Type: |
Hico 2750, Loco 300 |
| Chip Encoding: |
Yes |
| Function: |
Identification, Payment, Encrypt/Decrypt |
| Material: |
PVC |
| Frequency: |
High Frequency |
| Type: |
RFID Card, Smart Card, MIFARE 1k S50 Card |
| Application Field: |
Hotel Door Lock, Access, Payment |
Shanghai Huayuan Elelctronic Co., Ltd, is the first supplier of magnetic cards as the ticket for AFC (Automatic Fare Collection) system for Shanghai Metro No1 line.
Our products line covered plastic card, Smart cards, Contactless cards and RFID products with growing of technology and applications in this area. Our experience is not only in RFID products R & D, but also system and solution design, and system integration. Our success in oversea market was apparent - from the first client in Spain in Europe in 2005, and expanded to hundreds of clients covering up to 100 countries and regions in several years.
Genuinely in communication and business, professionally in service and technology, HUAYUAN is experts of manufacture in plastic card, contact chip cards, passive RFID, NFC, contactless cards, and various RFID /NFC products with experience in applications and solutions everywhere our products may applied.
Researching and developing especially in passive radio frequency products, HUAYUAN offered UHF/HF RFID label & tag, LF/HF/UHF wristbands, key tags, token, crystal colorful NFC tag, or on metal tags with diverse encapsulations meet whether in harsh industrial environment or a fashionable commercial environment, with our total quality management with RoHS, and CE compliant.
Our History:
1992, Huayuan Elelctronic, stand in the advancing front of magnetic stripe card and smart chip card area.
1995, Shanghai Huayuan Elelctronic Corp. Found by Mr. Tao, main business is smart card and mag. Stripe card solution and applications, for transportation E-ticket, ID smartcard for Chinese organization and residents, payment, education and industrial applications.
1997, Shanghai Huayuan start to get in to developing many management system based on technical of card and RFID, worked as software developer and system integrator in domestic market. Like tolling system, highway appurtenance management system, insurance management information system, , E- voting system for Chinese stock holder.
1996-2002, we had successfully applied in toll management system, highway appurtenance, Social insurance management system., social insurance, E-Voting system for stockholder general meeting, etc.
2003-2004, as a core partner with HP in China, researching in "smart card personalized printing solution", especially preparing for Chines 2ND generation ID (RFID card with individual digital printing ) which has just begun to issue in every Chinese residents.
2005, HUAYUAN had been selected as Chinese RFID supplier in several European big companies which famous in card manufacture and smart card business.
2007, HUAYUAN smart information technical co. Ltd is established as an international agent for card and RFID products exporting business in global market in that years...At the end of 2007, we got about 80 countries client over the world.
2008, we reorganized several manufactories, then Shenzhen Huayuan Smart Tech. Co., Ltd as a smart card and RFID production base station, meanwhile several join venture manufactory for producing tags, readers and relative products in Shanghai, Shenzhen, etc.
2011, HUAYUAN regulated our products and customers from mass production to higher quality, technique and service creative products to innovation and enhance HUAYUAN brand in this business area.
2012, HUAYUAN is preparing obtain international business certificate to directly get into global card and RFID market, and ready for involve expending our business from products manufacturer to solution for specific application in near future by widely cooperate with professional companies to accommodate new economic environment in global market.
