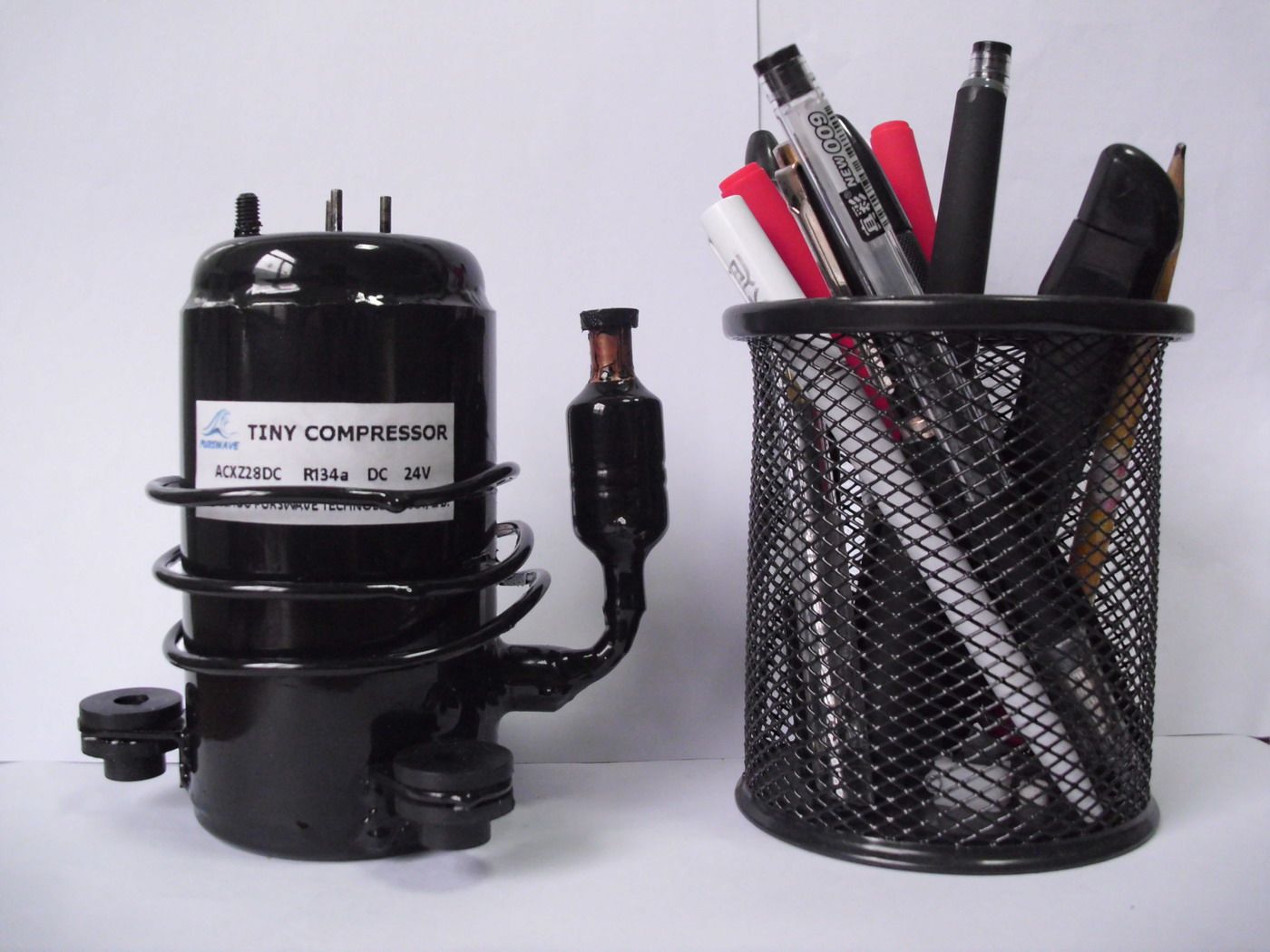

1300g 400W DC Tiny Compressor for Micro Cooling Systems and Micro Refrigeration System (ACXZ28DC)
Product Specifications
Prod Model: |
ACXZ28DC |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Configuration: |
Stationary |
Power Source: |
DC Power |
Type: |
Rotary |
Lubrication Style: |
Lubricated |
Application: |
High Back Pressure Type |
Mute: |
Mute |
Refrigerant: |
R134A |
Operation: |
Rotary |
Cylinder Quantity: |
1PC |
Displacement: |
2.8CC |
Product Description
DC Tiny Refrigeration Compressor 400W R134A for Portable Ice-maker
Model: ACXZ28DC
Power Supply: 24V
Refrigerant: R134A
Cylinder Quantity: 1PC
Displacement: 2.8CC
Rotary Speed: 1700~4000RPM
Cooling Capacity: 175~415W
Input Power: 70~130W
COP: 2.5~4.0W/W
Current: 2.5~5 A
Motor Type: BLDCM
Cooling Type: S
Noise: 37~42dB
Vibration: 0.6m/s2
Class of insulation: E
Accessory 1- Holder 1PC
Accessory 2- Rubber Blanket 1PC
Accessory 3- Controller 1PC
Accessory 4- Holder Screw 1PC
Accessory 5- Damping Spring 3PCS
Evapration Temperature: -23.3 º C
Condensing Temperature: 54.4 º C
Subcooling Temperature: 32.2 º C
Ambient Temperature: 32.2 º C
Dimenssion: 80X80X150MM
Weight: 1300G
Application:
LBP: Low back pressure; Refrigerator, Freezer, Wine cooler
MBP: Medium Back Pressure; Air-conditioner, vending machine
HBP: High Back Pressure: Air-conditioner, ice maker
LBP ASHRAE Test Condition:
Evapration Temperature: -23.3 º C
Condensing Temperature: 54.4 º C
Subcooling Temperature: 32.2 º C
Ambient Temperature: 32.2 º C
MBP ASHRAE Test condition:
Evapration Temperature: -5 º C
Condensing Temperature: 54.4 º C
Ambient Temperature: 35 º C
Subcooling Temperature: 46.1
Suction Temperature: 35 º C
HBP ASHRAETest condition:
Evapration Temperature: 7.2º C
Condensing Temperature: 54.4º C
Ambient Temperature: 35º C
Subcooling Temperature: 46.1º C
Suction Temperature: 35º C
Parameter Variation Range:
Cooling Capacity: ≥ 95%
Inpurt Power: ≤ 115%
Current: ≤ 110%
COP: ≥ 95%
Cooling Type:
S: Natural cooling
F1: Fan cooling, 200mm fan diameter, 1.5m/s air speed
F2: Fan cooling, 200mm fan diameter, 3m/s air speed
Hangzhou Purswave Technology Co., Ltd. adjacent to developed economy and port city of Shanghai, Nanjing, Ningbo, located in high and new technology industrial development zone of Binjiang, Hangzhou, it is a professional technology and service company, who is committed to high-tech research and development and promotion. Take tiny refrigeration system research and development as the guide, we serves the masses of industrial and manufacturing.
We are a supported enterprise by hangzhou municipal government, member of academician enterprise clubs in Binjiang district, member of global website alliance enterprise, exclusive agency of "Ruiyun" DC compressor, export agent of "Wansheng" refrigeration compressor. At the beginning of the company was set up, a high-quality business team was built up. "Scientific and Technological Innovation, Service First" as the core value, we hope to provide quality customer experience, high quality products, the highly effective after-sale service through our professional level and unremitting efforts.
Purswave is committed to research, develop and sell tiny refrigeration system. We wholesale, retail export and import the following high technology products
(1) Refrigeration compressor: DC rotary compressor, DC reciprocating compressor, AC R134A compressor, AC R22 compressor, AC R406A compressor, AC R404A compressor, etc. (2) Refrigeration equipment: Refrigerator, freezer, juice machine, ice machine, vending machine, etc. (3) Refrigeration accessories: Evaporator, condenser, fan, refrigerant, etc. (4) Metal products: Wire mesh, fence mesh, screen mesh, Perforated Metal Mesh, stone cage mesh, Barbed Wire, metal wire, etc. So far, our products have been widely applied in communications equipment, electronic case, water machine, air conditioning machine cabinet, control cabinet, large computing machine cabinet, telecom room cabinet, LED street lamp, mobile refrigerator, heat exchanger, etc. With high quality and good service, our products are used by the well-known enterprise in domestic and overseas, such as National Power Grid, Pepsi cola, Changhong Electric Appliances, Meiling refrigerator, Haier refrigerators, Midea refrigerator, and so on.
Take user needs as the core, Purswave provide quality products and services for customers home and abroad. Domestic sales spread in Beijing, Shanghai, Guangdong, Hebei, Liaoning, Sichuan, Zhejiang, Jiangsu, etc.; Export business spread all over the world, Malaysia, Singapore, Indonesia, Kazakhstan, in Asia, UAE, Kuwait, Iraq, Iran in Middle East, Argentina, Brazil, Chile, Ecuador in South America, South Africa, Uganda, Botswana in Africa, Germany, France, Italy, in Europe, Mexico, USA in North America etc. The high quality products and good service has won a good brand and reputation in trade union.
To provide better service for customers, we established a better after-sale service system. We firmly believe that the social from all walks of life mutually beneficial and win-win through our continuous efforts and pursuit!
