Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Decorative Fluorescent Lighting G13 T8: |
LED Tube Garage Lighting |
| Sensing Distance: |
R=5meters |
| Sensing Angle: |
140 Degree |
| Function: |
Infrared Sensing |
| Type: |
PIR Sensor Light |
| Driver: |
Isolated-Internal |
| Color Temp: |
Warm White, Natural White, Cold White |
| Delivery Time: |
3-7working Day |
| Shape: |
Straight |
| Lamp Holder/Base: |
G13 |
| Shell Type: |
Frosted |
| Certification: |
LVD |
| Color Temperature: |
Nature White |
| Input Voltage: |
100-240V |
| LED Type: |
SMD 2835 |
| Tube Type: |
T8 |
| Lifespan: |
≥50000H |
| Warranty: |
3 Years |
| Length: |
1.2m |
| LED Chips: |
Epistar/CREE/Bridgelux/Samsung |
| Power: |
18 |
Product Description
Specifications
1. Uses SMD LED2835 as light source
2. Longer lifespan
3. Higher brightness and less toxic substance
4. Easy to install.
Factory Wholesale hot sale T8 UL led tube light
1. PIR Sensor LED Tube 19w 4ft tube lights with beveled end caps design
1. Saves more than 70% energy
2. Easy to installation
3.3 years warranty
General Introduction
This PIR Sensor Led Tube uses SMD LED2835 as light source and there are 600mm(2 feet), 900mm(3 feet), 1200mm(4 feet), 1500mm(5 feet) available. With longer lifespan(>50, 000hours), higher brightness and less toxic substance, PIR sensor LED tube can be widely used in underground parking lot, tenement corridor, passageway, etc. This type of PIR Sensor Led Tube adopts the standard G13 socket and works with AC100-240V voltage input and DC48-56V voltage output.
PIR Sensor T8 LED Tube Features
PIR Sensor LED Tube 19w 4ft tube lights with beveled end caps design
Single LEDs of 8-9lumen with 5 years warranty
Isolated power supply of 86% power conversion efficiency
Frosted lenses PC cover of 0.85-0.88 light transmittance
PIR sensor LED tube for 5-7M sensing detection area
PIR Sensor T8 LED Tube Application
Pir Sensor LED Tube can be applied in indoor LED lighting, places as park lot, passageway, tenement corridor, etc.

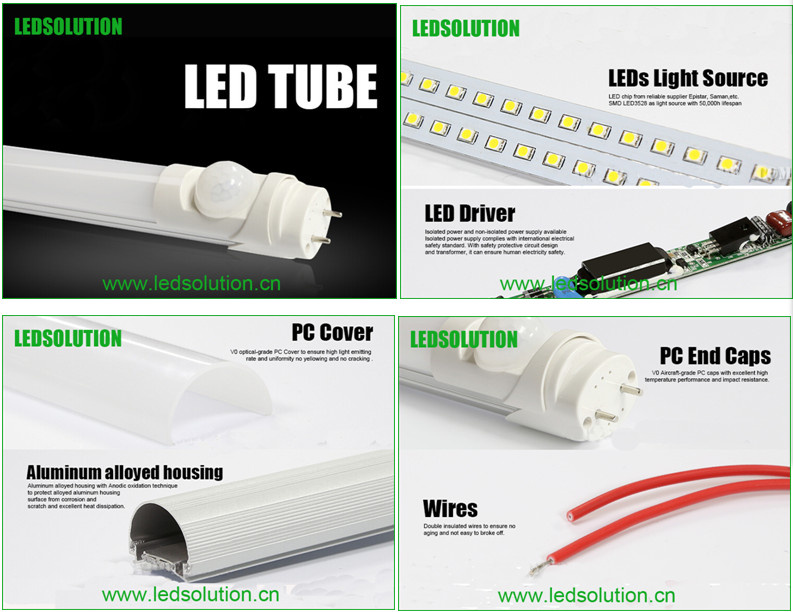

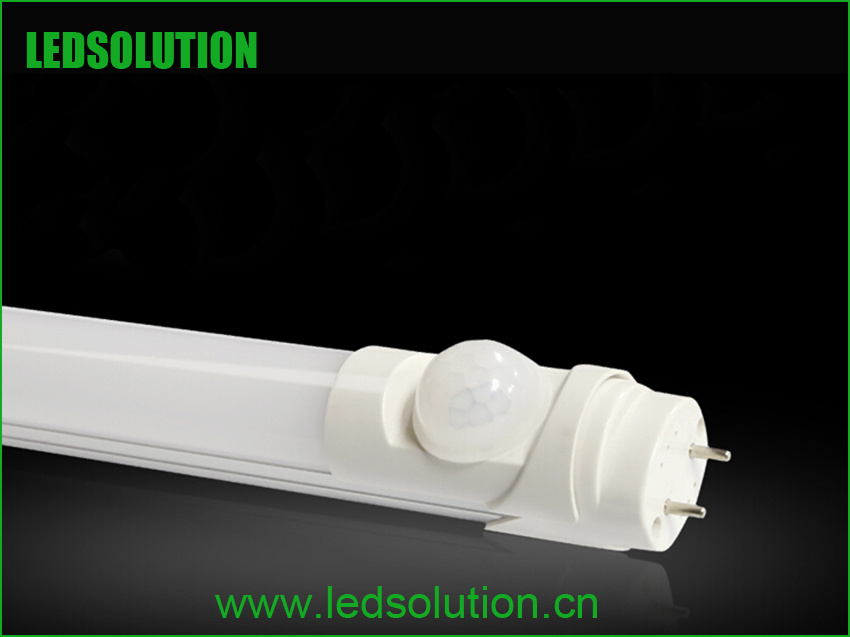

PIR Sensor LED Tube Details Photo

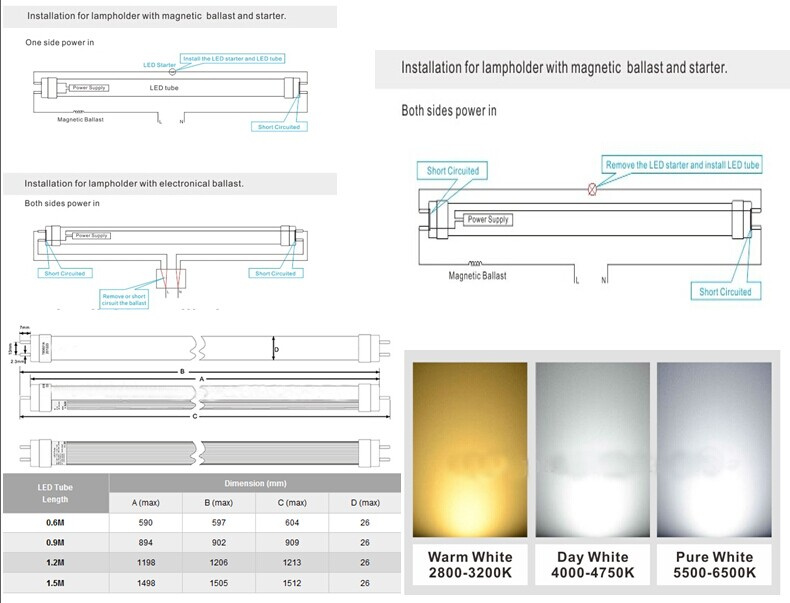

T8 LED Tube install drawing

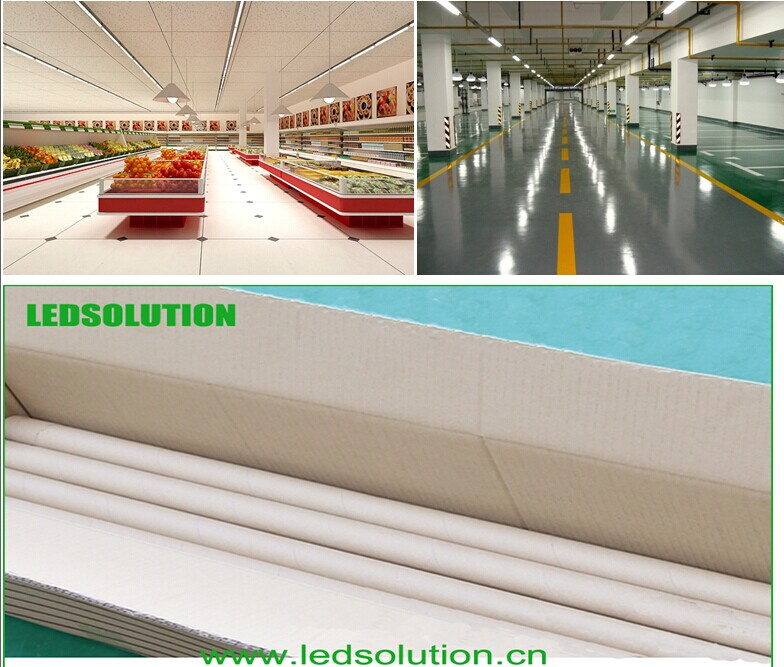

PIR Sensor LED Tube Application and Package
Service and After Sale :
- Your inquiry related to our products or prices will be replied in 24hrs.
- Well-trained and experienced staffs to answer all your inquires
- 2 year warranty for our led products.
- After-sale tracking service for any our client.
- Payment :By T/T;L/C; Western Union;
- Delivery time: 3-4 days for sample,7-10 days for bulk order usually.
- Delivery way: DHL; UPS; TNT; FEDEX; EMS
Thank you for your time and welcome your inquiry!
|
Model NO. |
SL-T08-012 |
|
Optical Parameters |
Light Source |
SMD LED2835 |
|
Luminous Flux(lm) |
1800 |
|
CCT(K) |
5000-5500 |
|
CRI(Ra) |
80 |
|
Beam Angle |
120°-160° |
|
Light Attenuation ratio (%) |
Less than 10% in 3 years |
|
LED Quantity |
288 |
|
Electrical Parameters |
Input Voltage(V) |
AC100-270V |
|
Frequency(Hz) |
50/60HZ |
|
Output Voltage(V) |
DC36-42V |
|
Total Power(W) |
19 |
|
Power Factor |
>0.9 |
|
Lifespan (Hrs) |
>50,000 |
|
Dielectric Voltage Withstand Test |
3750Vac/60s |
|
Structural Parameters |
Material |
Aluminum housing &PC cover |
|
Size(mm) |
Φ26×1200 |
|
Length(mm) |
1200 |
|
Net Weight(g) |
320 |
|
Integrated Parameters |
Operating Temperature |
-10°-40° |
|
Storage Humidity |
-40°-85° |
|
Safety Requirement |
/ |
|
Environmental Directives |
RoHS |
