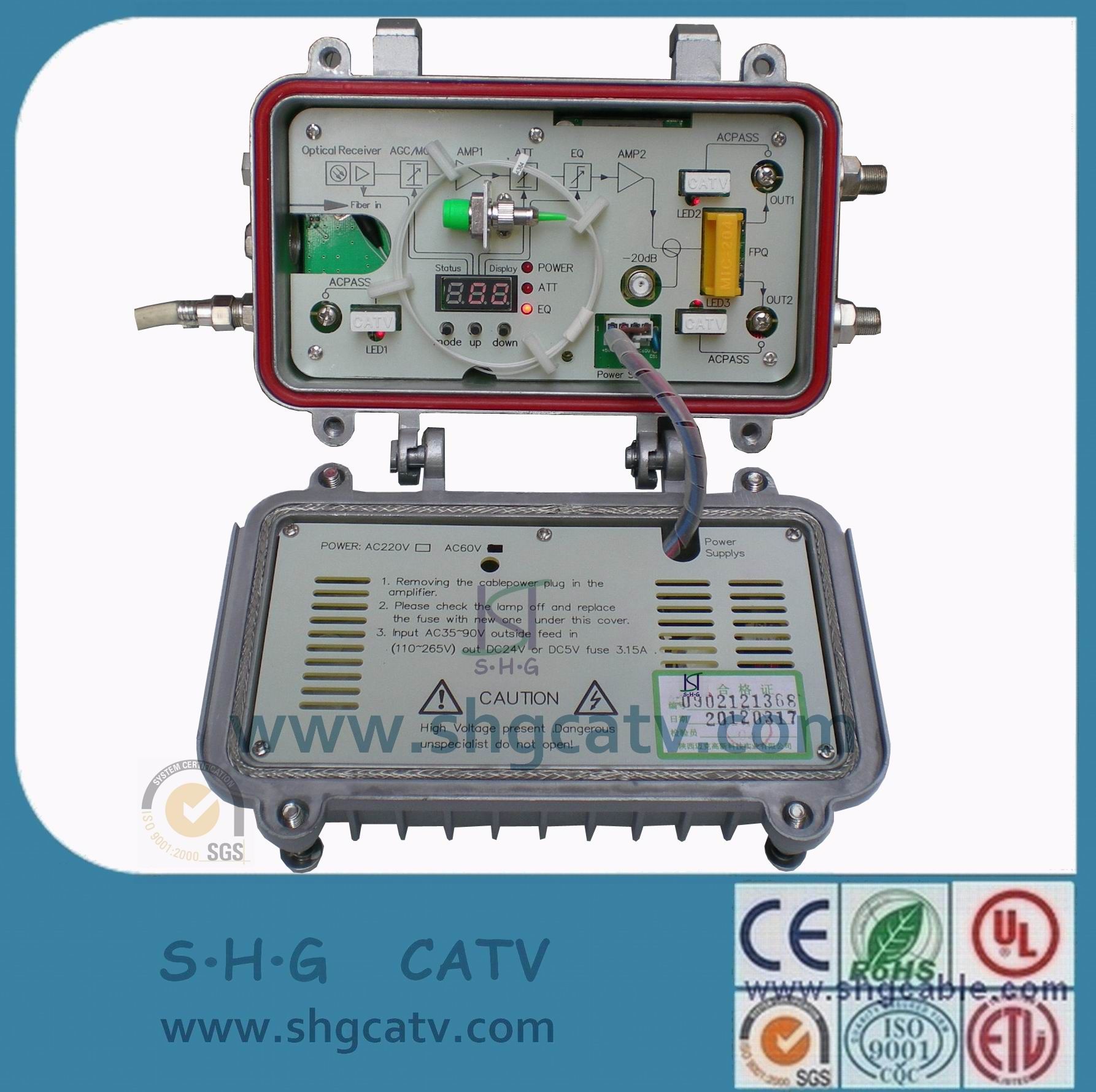

1310nm Field Optical Receiver (HT-OR-860JB)
Product Specifications
| Prod Model: |
HT-OR-860JB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Optical Receiver: |
Ht-or-860jb |
| Type: |
Optical Receiver |
Product Description
HT-OR-860JB is a kind 1310nm field optical receiver, offer stable quality.1. 2-output optical receiver
2. Adopt GaAs amplify module
3. AGG function
4. Input level: -8~0dBm
5. Output level: 108dBuV
HT-OR-860JB field optical receiver is a kind of lately researched high-quality CATV network products. It adopts the reasonable combination of NEC GaAs amplifing module. AGC/MGC function. Digital signal and analogue signal can be transmitted at the same time. This is priority choice in HFC network system construction.
Features
1) 1310nm and 1550nm double windows receiving.
2) LED numberal tube displays each items of operation parameters real-timely(optical power, attenuation, equalization, etc).
3) Key can be optional and adjusts RF output level and slope.
4) Output is equipped plug-in one-way tap or two-way splitter, easy to exchange and operate.
5) AGC/MGC function, it can make output level stable when input optical power is in the range of -8~0 dBm.
6) High-reliability switch power supply, small temperature increasing, high switching power and wide voltage range.
7) Each port sets up AC60V LED display indicator, and operate easily.
8) Perfect surge suppression circuit, it can prevent surge stroke and light stroke efficiently.
9) Built-in AC60V independent power supply port, can be used conveniently.
Certification:
CE, RoHS, CCC, ISO9001
Specifications:
|
Items |
Units |
Parameters |
|
RF output ports |
|
2 |
|
Receiving optical wavelength |
nm |
1290 - 1600 |
|
Optical connector type |
- |
FC/APC or SC/APC |
|
Input optical power range |
dBm |
-8~0 |
|
Optical return loss |
dB |
≥ 50 |
|
In-band flatness |
dB |
± 0.75 |
|
Frequency range |
MHz |
47 ~ 862 |
|
RF output level |
dBµ V |
≥ 108 dBuV |
|
RF output impedance |
Ω |
75 |
|
Attenuation adjusting range |
dB |
0 ~ 14 |
|
Equalization adjusting rage |
dB |
0 ~ 14 |
|
Output return loss |
dB |
≥ 16 |
|
Optical link C/N |
dB |
≥ 51(-1dBm receiving, 59 channels PAL-D) |
|
Optical link C/CTB |
dB |
≥ 67(-1dBm receiving, 59 channels PAL-D) |
|
Optical link C/CSO |
dB |
≥ 62(-1dBm receiving, 59 channels PAL-D) |
|
Power supply |
V |
AC35~90 or AC110~265 |
|
Power consumption |
W |
13.0Max |
|
Operation temperature |
|
-40~+55 |
|
Dimension |
mm |
230× 155 × 98 |
|
Net weight |
Kg |
2.2 |
