1350~2000kg Gearless Traction Machine for Passenger Elevator\Freight Elevator

$1350~2000kg Gearless Traction Machine for Passenger Elevator\Freight Elevator$

Price:	US $ 35500-56000/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Passenger Lift\Freight Elevator Machine

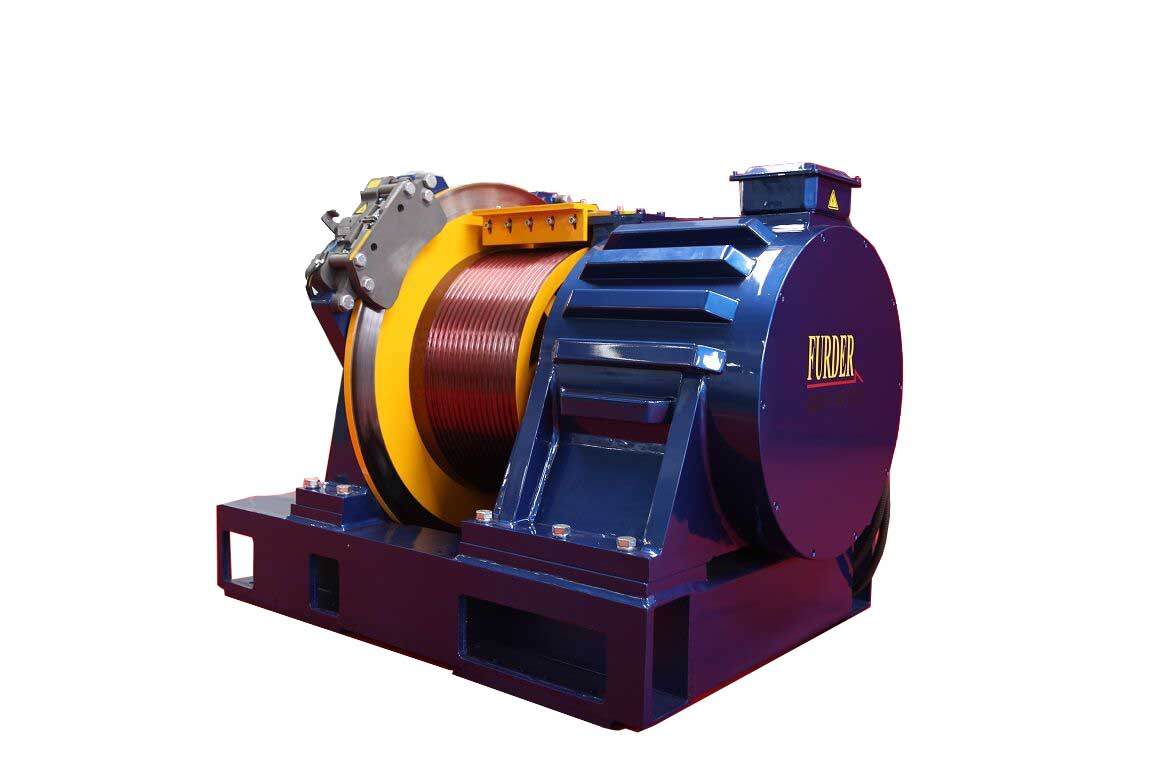

Gearless Permanent Magnet Synchronous Traction Machine
Series: FRD71-2000-900
Traction ratio : 1:1
Rated capacity : 1350~2000kg
Rated speed : 6m/s~9m/s
Rated voltage : AC380V
Brake voltage : AC220V

Model
	Load (kg)	Speed (m/s)	Toque (Nm)	Sheave Dia. (mm)	Rope Dia.(mm)	Groove(pcs)	Distance Between Grooves	Power (kW)	Rated Voltage (V)	Current(A)	Frequency (Hz)	Rated Speed (rpm)	Pole Pairs	Rated Voltage (V)	Current(A)	Toque (Nm)
	Load (kg)	Speed (m/s)	Toque (Nm)	Sheave Dia. (mm)	Rope Dia.(mm)	Groove(pcs)	Distance Between Grooves	Power (kW)	Rated Voltage (V)	Current(A)	Frequency (Hz)	Rated Speed (rpm)	Pole Pairs	Rated Voltage (V)	Current(A)	Toque (Nm)
FRD70-1350-500	1350	5.00	3158	710	16			45.2	380		35.7	134	16
FRD70-1350-600		6.00						54.2			42.9	161	16
FRD70-1350-700		7.00						63.2			50.13	188	16
FRD70-1350-800		8.00						72.2			57.33	215	16
FRD70-1600-500	1600	5.00	3743	710	16			53.5	380		35.7	134	16	2*AC220V	2*3A	5406N.mx2
FRD70-1600-600		6.00						64.2			42.9	161	16	2*AC220V	2*3A	5406N.mx2
FRD70-1600-700		7.00						74.8			50.13	188	16	2*AC220V	2*3A	5406N.mx2
FRD70-1600-800		8.00						85.6			57.33	215	16	2*AC220V	2*3A	5406N.mx2
FRD70-2000-500	2000	5.00	4680	710	16	16	20	66.8	380		35.7	134	16	2*AC220V	2*3A	5406N.mx2
FRD70-2000-600	2000	6.00	4680	710	16	16	20	80.2	380		42.9	161	16	2*AC220V	2*3A	5406N.mx2
FRD70-2000-700	2000	7.00	4680	710	16	16	20	93.6	380	200	50.13	188	16	2*AC220V	2*3A	5406N.mx2
FRD71-2000-800	2000	8.00	4680	710	16	16	20	106.8	380	237	57.33	215	16	2*AC220V	2*3A	5406N.mx2

Prod Model:	FRD71-2000-900
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Traction Sheaves Size:	710mm
Traction Ration:	1:1
Encoder:	Heidenhain 1387
Type:	Driving System
Speed:	6m/S~9m/S

Zhejiang Furder Drive Technology Co., Ltd. Specializes in designing and manufacturing traction machine for elevator. It was established in 2014, located in Xunbei Road, Nanxun Town, Nanxun District, Huzhou City, Zhejiang province. The company occupy an area of more than 12000 spuare meters. They have advanced production and test equipment, such as CNC lathe, flame cutting machine, automatic welding machine and traction machine test system. The company have passed ISO9001: 2008 certification. Products have passed CE certificate and type tests. Professional and experienced spares no effort to manufacture safe, flexible, energy-saving and environment friendly permanent magnet synchronous gearless traction machine
