Product Specifications
Prod Model: |
XE135B |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Bucket Capacity: |
0.4-0.52m3 |
Operating Weight: |
13800kg |
Type: |
Crawler Excavator |
Size: |
Medium-Sized |
Condition: |
New |
Certification: |
ISO9001: 2000 |
Product Description

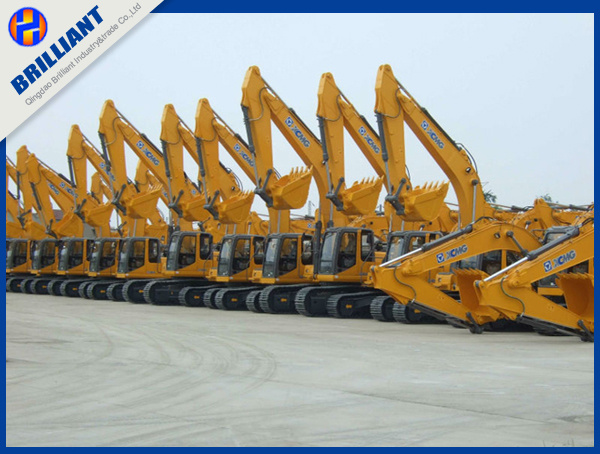

14 ton High Quality XCMG Crawler Excavator(XE135B)
>> Products Description And Features:
1. ISUZU 69.6kw/2200rpm
2. Operating weight: 14T
3. Bucket Capacity: 0.4m3
4. Digging depth: 5538mm
5. Dumping height: 6181mm
1. Imported engine of environment friendly and efficient low-consumptions for excavator
2. Complete set of imported hydraulic components, excellent control, smooth operation
3. Imported radiator, adapt super load and continuous operation
4. Excavator with High quality key parts, the chassis configuration of international quality
5. Powerful digging force, slew force and traction force
6. Completed closed PROS / FOPS cab, good vision and protection structure, import luxury seats, safe and comfortable
7. Fast full-open style hood, easy maintenance excavator
8. Anti-collision structure of cast iron weight, the effective protection of turntable and hood
9. Optional hydraulic breaker piping, to facilitate the crushing operation
10. GPS satellite positioning and remote monitoring system.
MODEL |
Unit |
XE135B |
Operating weight |
kg |
13800 |
Standard bucket capacity |
m³ |
0.4-0.52 |
Engine |
Engine Model |
/ |
ISUZU BB-4BG1TRP |
Direct injection |
/ |
√ |
Four strokes |
/ |
√ |
Water cooling |
/ |
√ |
Turbo charged |
/ |
√ |
Air to air intercooler |
/ |
× |
No. of cylinders |
/ |
4 |
Rated power/speed |
kw/rpm |
69.6/2200 |
Max. torque/speed |
N.m |
337.6 |
Displacement |
L |
4.329 |
Main. Performance |
Travel speed |
km/h |
5.16/3.03 |
Swing speed |
r/min |
12.3 |
Max. gradeability |
/ |
≥35 |
Ground pressure |
kPa |
42 |
Max.Bucket digging force |
kN |
85 |
Max.arm crowd force |
kN |
65 |
Max.traction force |
kN |
134 |
Hyd r aulic System |
Main pump |
/ |
2pcs |
Rate flow of main pump |
L/min |
2×123 |
Max pressure of prime relief valve |
MPa |
31.4/34.3 |
Max pressure of travel system |
MPa |
34.3 |
Max pressure of swing system |
MPa |
25 |
Max pressure of pilot system |
MPa |
3.9 |
Fuel |
Fuel tank capacity |
L |
250 |
Hydraulic tank capacity |
L |
130 |
Engine lubrication |
L |
14 |
