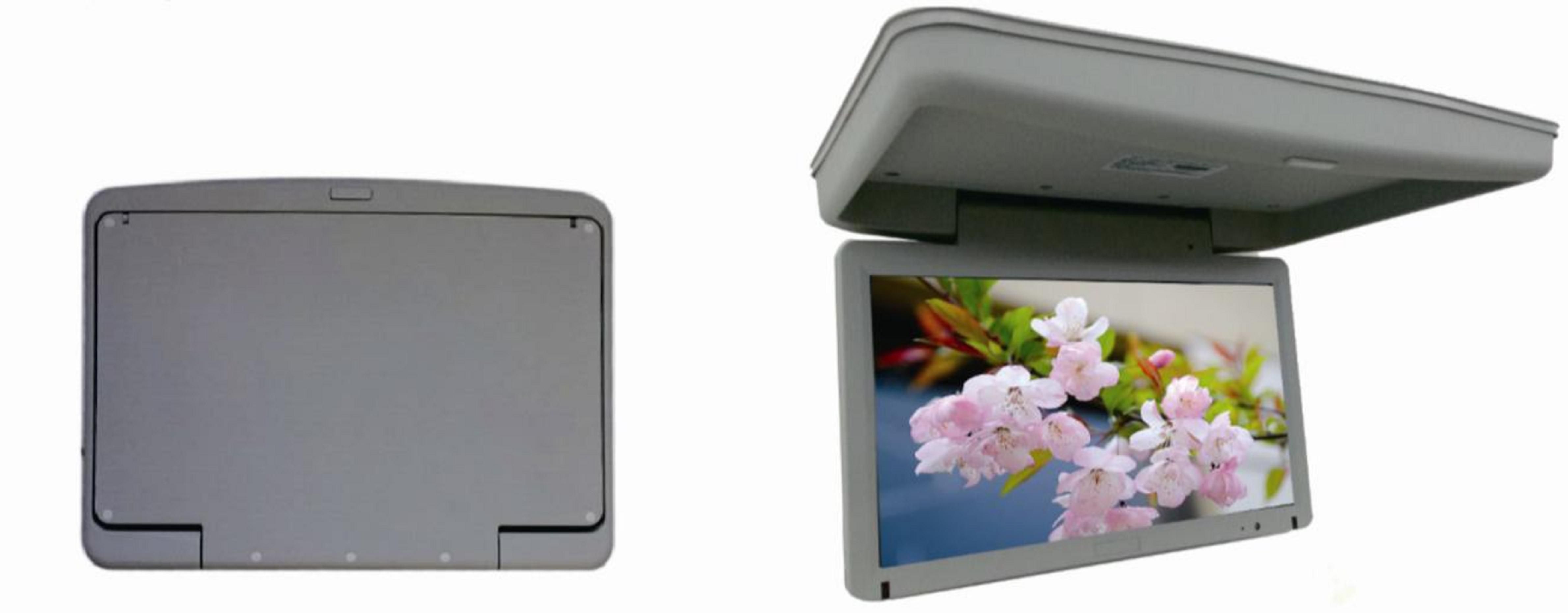

15.6 Inch Fixed LCD Display Panel Car LCD TV

Product Specifications

Prod Model:	CM1568
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Contrast Ratio:	600:1
View Angle:	U:40/D:40 L/R: 45
Power Consumption:	30W,Less Than 30 W
Power Supply:	DC 24V±20%
LCD Screen:	TFT LCD Screen
Brightness:	250CD/M2
Image Display(Two):	16:9
Analog Adjustments:	Brightness, Contrast, Chroma(0~100)
Light Source:	LED
Combination:	TV
Placement:	Roof
Certification:	FCC
Voltage:	12/24V
Audio Output:	Digital Optical Output
Video Output:	HDMI
Screen Size:	15.6 Inch
Resolution:	1366(H)×3(RGB)×768(V)

Product Description

Products Discription:
15.6 inches bus/taxi/metro/subway LCD player/monitor, AV(standard)/VGA(Optional)/HDMI(Optional) input with CE and FCC certificated.


Specification:

Detail	Specifications	Standard Fitting
Screen Size	15.6 Inch	1.Fixed Screws 2.TV signal cable 3.User manual
LCD Screen	TFT LCD Screen
Aspect Ratio	16:9
Resolution	1366(H)×3(RGB)×768(V)
Contrast Ratio	600:1
Brightness	250cd/m2
Response Period	5ms
View Angle	U:40/D:40   L/R: 45	Optional Fitting
Light Source	LED	1, Remote controller
OSD Language	OSD Multilingual optional
Analog Adjustments	Brightness, Contrast, Chroma(0~100)
Color System	PAL/NTSC optional
Video Input	1VP-P   75Ω   VGA signal input (optional)
Image Display(two)	16:9
Interface	RCA input or VGA input (optional)
Power Supply	DC 24V±20%
Product Dimension
Net Weight	≤6KG
Operating Temperature	-10~60ºC
Storage Temperature	-20~70ºC
Power  Consumption	Less than 30 W
Description:                                                                                                   1. Wide range of supply voltage. 2. Low carbon consumption. 3. RCA, VGA and YPBPR Options. 4. Wide view angle, high brightness and resolution.

Our company information :

Founded in 2007 ,Xiamen Harine Electronics Co.,Ltd has become a professional designer and manufacturer of vehicular electronics products . Harine has passed the ISO9001- 2008 quality system certification and product certification and has been assessed as a national Hi-tech enterprise which specialized in design , production and sales of vehicular LCD&LED monitor , vehicular audio& video system, rear view system and so on .

With advantage of long-period experience in vehicular products, powerful R&D team, good team sense and efficient and effective production, Harine selles the products to all over the world and has been approved to be the first choice in the field.

Presently, our factory covers an area of 3.000 square meters, has about 200 employees and 50 million RMB turnover in 2012.

We firmly believe that quality comes the first. Most of our products has been CE, FCC, Certificated or E-mark  approved.
