Product Specifications
| Prod Model: |
OMY-PH1500-3630 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
1500W |
| Input Voltage Range (VAC): |
90-264V |
| Output Voltage (VDC): |
36V |
| Output Current (a): |
30A |
| L*W*H(Mm): |
285*150*110 |
| Usage: |

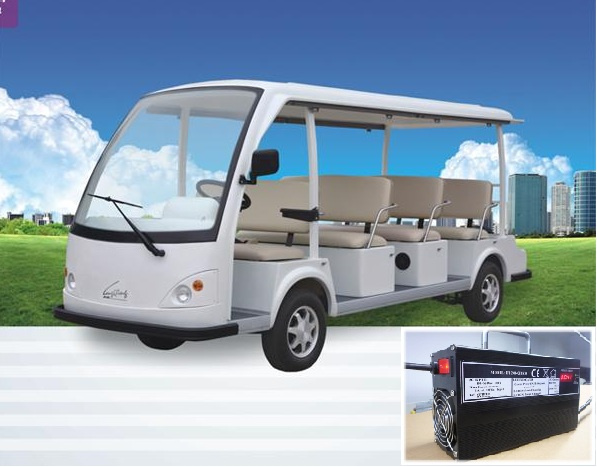

Tour Bus |
| Output Type: |
DC |
| Connection: |
Plug In |
Product Description
1.1 Product Description
| Model No. | Description | Output Voltage(Vdc) | Output Current (A) | Power (W) |
| OMY-PH0500-1225 | 500W battery intelligent charger for electric vehicle | 12 | 25 | 500 |
| OMY-PH0500-2415 | 500W battery intelligent charger for electric vehicle | 24 | 15 | 500 |
| OMY-PH0500-3610 | 500W battery intelligent charger for electric vehicle | 36 | 10 | 500 |
| OMY-PH0500-4808 | 500W battery intelligent charger for electric vehicle | 48 | 8 | 500 |
| OMY-PH0500-6006 | 500W battery intelligent charger for electric vehicle | 60 | 6 | 500 |
| OMY-PH0500-7205 | 500W battery intelligent charger for electric vehicle | 72 | 5 | 500 |
| OMY-PH1000-1240 | 1000W battery intelligent charger for electric vehicle | 12 | 40 | 1000 |
| OMY-PH1000-2425 | 1000W battery intelligent charger for electric vehicle | 24 | 25 | 1000 |
| OMY-PH1000-3618 | 1000W battery intelligent charger for electric vehicle | 36 | 18 | 1000 |
| OMY-PH1000-4815 | 1000W battery intelligent charger for electric vehicle | 48 | 15 | 1000 |
| OMY-PH1000-6010 | 1000W battery intelligent charger for electric vehicle | 60 | 10 | 1000 |
| OMY-PH1000-7208 | 1000W battery intelligent charger for electric vehicle | 72 | 8 | 1000 |
| OMY-PH1500-2450 | 1500W battery intelligent charger for electric vehicle | 24 | 50 | 1500 |
| OMY-PH1500-3630 | 1500W battery intelligent charger for electric vehicle | 36 | 30 | 1500 |
| OMY-PH1500-4825 | 1500W battery intelligent charger for electric vehicle | 48 | 25 | 1500 |
| OMY-PH1500-6020 | 1500W battery intelligent charger for electric vehicle | 60 | 20 | 1500 |
| OMY-PH1500-7218 | 1500W battery intelligent charger for electric vehicle | 72 | 18 | 1500 |
| OMY-PH1500-9610 | 1500W battery intelligent charger for electric vehicle | 96 | 10 | 1500 |
| OMY-PH2000-2460 | 2000W battery intelligent charger for electric vehicle | 24 | 60 | 2000 |
| OMY-PH2000-3650 | 2000W battery intelligent charger for electric vehicle | 36 | 50 | 2000 |
| OMY-PH2000-4830 | 2000W battery intelligent charger for electric vehicle | 48 | 30 | 2000 |
| OMY-PH2000-6028 | 2000W battery intelligent charger for electric vehicle | 60 | 28 | 2000 |
| OMY-PH2000-7225 | 2000W battery intelligent charger for electric vehicle | 72 | 25 | 2000 |
| OMY-PH2000-9615 | 2000W battery intelligent charger for electric vehicle | 96 | 15 | 2000 |
| OMY-PH2500-2470 | 2500W battery intelligent charger for electric vehicle | 24 | 70 | 2500 |
| OMY-PH2500-3660 | 2500W battery intelligent charger for electric vehicle | 36 | 60 | 2500 |
| OMY-PH2500-4840 | 2500W battery intelligent charger for electric vehicle | 48 | 40 | 2500 |
| OMY-PH2500-6035 | 2500W battery intelligent charger for electric vehicle | 60 | 35 | 2500 |
| OMY-PH2500-7230 | 2500W battery intelligent charger for electric vehicle | 72 | 30 | 2500 |
| OMY-PH2500-9620 | 2500W battery intelligent charger for electric vehicle | 96 | 20 | 2500 |
Since a smart battery charger is intended to be connected to a battery, it may not have voltage regulation or filtering of the DC voltage output. Battery chargers equipped with both voltage regulation and filtering may be identified as battery eliminators.
OMY designs and manufactures a range of smart battery chargers and accessories to suit all types of lead-acid batteries and therefore Electric vehicles including Electro mobiles, Parked Vehicle, Garden Tractors, Ship/boat, Sweeper, Tricycle, Fork-lift Truck, Tour/Sightseeing Bus, Patrol Cars, Golf Cars, Cleaning Trolley, Pallet trucks, Bikes, agricultural vehicles, Lawn mowers and Electric and communication system.
All of the smart battery chargers are fully automatic and fashionable design in Y2014, it not only has the advantages of light weight, small size, charge stability, high efficiency, safety and reliable but also can intelligent switch between floating and equalizing charge, spark proof and reverse polarity protected, short circuit protected, over voltage and overload protected and require no specialist knowledge to use. Furthermore, due to the patented pulse maintenance technology, the range of chargers can be connected to the battery for months at a time meaning users can simply connect and forget.
A OMY smart battery charger will undergo a series of stages during the charging process to bisulphate, revive, charge, condition and maintain all types of lead-acid batteries, prolong their life and saving the user time and money in the future.
Furthermore, a smart battery charger will stay in constant communication with the battery throughout the procedure, charging only to meet the needs of the battery and therefore eradicating the possibility of over-charging or under-charging the battery and reducing its lifespan as a result.
Moreover, each OMY smart battery charger regulates mains voltage to protect any sensitive electrical and Hi-Fi equipment
We have 500W-2500W series products for option
1.3---Features
1. Battery adopt MCU identification and management, the battery recharging curve setup based on different type of battery recharging characteristic.
2. Safety and reliable recharging application, high recharging efficiency
3. LED to display the recharging current and voltage
4. Lead-acid battery, Lithium battery, Ni-MH battery (Nickel-metal Hydride battery), Ni-Cd battery (Nickel - Cadmium battery) and all the battery to be applied for EV are well feasible.
5. Recharging application: Electric Parked Vehicle, Electric Garden Tractors, Electric Ship/boat, Electric Sweeper, Electric Tricycle, Electric Fork-lift Truck, Electric Tour/Sightseeing Bus, Electric Patrol Car, Electric Golf Car, Electric Cleaning Trolley and Electromobile.
6. Mobile or vehicular installation
7. Widely input AC voltage (90~265Vac), single output recharging available
8. Over 80% recharging efficiency
9. Battery recharging protection: Short circuit protection, over voltage protection, overload protection, Battery wiring reversed protection.
2. Specifications
2.1. Main model and specifications
2.1.1. 500W Series
| Model No. | Input Voltage Range (Vac) | Output Voltage (Vdc) | Output Current (A) | L*W*H(mm) | Weight (kg) |
| OMY-PH0500-1225 | 90-264 | 12 | 25 | 200*100*55 | 1.8 |
| OMY-PH0500-2415 | 90-264 | 24 | 15 |
| OMY-PH0500-3610 | 90-264 | 36 | 10 |
| OMY-PH0500-4808 | 90-264 | 48 | 8 |
| OMY-PH0500-6006 | 90-264 | 60 | 6 |
| OMY-PH0500-7205 | 90-264 | 72 | 5 |
2.1.2. 1000W Series
| Model No. | Input Voltage Range (Vac) | Output Voltage (Vdc) | Output Current (A) | L*W*H(mm) | Weight (kg) |
| OMY-PH1000-1240 | 90-264 | 12 | 40 | 175*150*110 | 2.5 |
| OMY-PH1000-2425 | 90-264 | 24 | 25 |
| OMY-PH1000-3618 | 90-264 | 36 | 18 |
| OMY-PH1000-4815 | 90-264 | 48 | 15 |
| OMY-PH1000-6010 | 90-264 | 60 | 10 |
| OMY-PH1000-7208 | 90-264 | 72 | 8 |
2.1.3. 1500W Series
| Model No. | Input Voltage Range (Vac) | Output Voltage (Vdc) | Output Current (A) | L*W*H(mm) | Weight (kg) |
| OMY-PH1500-2450 | 90-264 | 24 | 50 | 285*150*110 | 4.3 |
| OMY-PH1500-3630 | 90-264 | 36 | 30 |
| OMY-PH1500-4825 | 90-264 | 48 | 25 |
| OMY-PH1500-6020 | 90-264 | 60 | 20 |
| OMY-PH1500-7218 | 90-264 | 72 | 18 |
| OMY-PH1500-9610 | 90-264 | 96 | 10 |
2.1.4. 2000W Series
| Model No. | Input Voltage Range (Vac) | Output Voltage (Vdc) | Output Current (A) | L*W*H(mm) | Weight (kg) |
| OMY-PH2000-2460 | 90-264 | 24 | 60 | 285*150*110 | 4.3 |
| OMY-PH2000-3650 | 90-264 | 36 | 50 |
| OMY-PH2000-4830 | 90-264 | 48 | 30 |
| OMY-PH2000-6028 | 90-264 | 60 | 28 |
| OMY-PH2000-7225 | 90-264 | 72 | 25 |
| OMY-PH2000-9615 | 90-264 | 96 | 15 |
2.1.5. 2500W Series
| Model No. | Input Voltage Range (Vac) | Output Voltage (Vdc) | Output Current (A) | L*W*H(mm) | Weight (kg) |
| OMY-PH2500-2470 | 90-264 | 24 | 70 | 285*150*110 | 4.3 |
| OMY-PH2500-3660 | 90-264 | 36 | 60 |
| OMY-PH2500-4840 | 90-264 | 48 | 40 |
| OMY-PH2500-6035 | 90-264 | 60 | 35 |
| OMY-PH2500-7230 | 90-264 | 72 | 30 |
| OMY-PH2500-9620 | 90-264 | 96 | 20 |
2.2. Main Characteristics
2.2.1. Input & Output characteristics
| No. | Items | Technical Specifications | Unit | Remarks |
| 1.1 | Rated input voltage | 110-220 | Vac |
|
| 1.2 | Input voltage range | 90-264 | Vac |
|
| 1.3 | Input frequency range | 47-63 | Hz |
|
| 1.4 | Power factor | >=0.96 |
|
|
| 1.5 | Efficiency | >=90 | % | Rated input, full load output |
| 1.6 | Load regulation | <=±1.5 | % |
|
| 1.7 | Voltage regulation | <=±1 | % |
|
2.2.2. Protection Characteristics
| No. | Items | Technical Specifications | Unit | Remarks |
| 2.1 | Output overvoltage protection
| Yes |
| Locked |
| 2.2 | Over temp protection
| 85-105 | ºC |
|
| 2.3 | Current-limiting protection | Yes | A |
|
| 2.4 | Short circuit protection | Yes |
| Auto-recovery |
| 2.5 | Prevent flow backward | Yes |
|
|
| 2.6 | Reverse polarity protection | Yes |
| Reversed polarity without output |
| 2.7 | Input Undervoltage protection | Yes |
|
|
| 2.8 | Input Overvoltage protection | Yes |
|
|
2.2.3. Battery Management Characteristics
| No. | Items | Technical Specifications | Unit | Remarks |
| 3.1 | Equalizing charge voltage | Settable
| Vdc | Depend to the characteristics of battery set |
| 3.2 | Floating-charge voltage | Vdc |
| 3.3 | Charge current limiting | A |
| 3.4 | Undervoltage | Vdc |
| 3.5 | No-load mode | Orange LED lights out, Green LED Lights |
|
|
| 3.6 | Prepare charging mode | Orange LED lights, Green LED flashing |
|
|
| 3.7 | Constant current mode
| Orange LED lights, Green LED lights |
|
|
| 3.8 | Full charge mode | Orange LED lights,Green LED lights out |
|
|
| 3.9 | Fault model | Orange LED flashing,Green LED flashing |
|
|
2.2.4. Environmental Conditions
| No. | Items | Technical Specifications | Unit | Remarks |
| 4.1 | Operation temperature | -40~+55 | ºC |
|
| 4.2 | Storage temperature | -50~+70 | ºC |
|
| 4.3 | Relative humidity | ≤90% |
| No condensing |
| 4.4 | Cooling | Forced cooling |
|
|
| 4.5 | Barometric | 70~106 | Kpa |
|
| 4.6 | Altitude | ≤3500 | m |
|
| 4.7 | Vibration | Product can endure random vibration of 5~500HZ from three vertical directions, the acceleration spectral density of 5~10Hz is 10/s3, 10~200Hz is 3/s3,200~500Hz is 1/s3,for 20 minutes per direction. |
|
|
| 4.8 | Shock | Half-sine wave,acceleration is 20G,pulse width is 11mS, in X, Y, Z three directions for three times respectively |
|
|
2.2.5. Safety & EMC
| No. | Items | Technical Specifications | Remarks |
| 5.1 | Electric Strength
Test | Input-Output | 3000Vac/10mA/1min | No breakdown |
| Input-Ground | 1500Vac/10mA/1min |
| Output--Ground | 500Vac/10mA/1min |
| 5.2 | Isolation Resistance | Input-Output | ≥10MΩ@ 500Vdc | Under normal atmospheric pressure, relative humidity is 90% |
| Input-Ground | ≥10MΩ@ 500Vdc |
| Output--Ground | ≥10MΩ@ 500Vdc |
| 5.3 | Ground fault current | <3.5mA |
|
| 5.4 | EMC | CE | CLASS A | EN55014 |
| RE | CLASS A | EN55014 |
| 5.5 | Safety | TBD | Design meets UL60950 and EN60950 |
|
|
|
|
|
|
2.3. Battery Recharging characteristic
Different battery has different kind of recharging characteristic, here attached 3 kind of battery recharging characteristic which from FULLRIVER, CHILWEE and CELLNIKE
A. for FULLRIVER battery recharging characteristic
IUIU-Characteristic DC Series(AGM Technology)-referred to 25ºC
B. CHILWEE Battery recharging characteristic
C. CELLNIKE battery recharging characteristic
2.4 --- Warning
1. Please don't charge in high temperature > 55 ºC (or under Sunshine)
2. Please don't charge immediately as soon as your car or vehicle shut down, please ensure the battery and engine of car cool down then start charging.
3. Please don't long time charge (please keep the charging time less than 8 Hrs)
4. Please stop charging if the battery box become very hot or the charging LED without illumination, in this case, please go to repair station to diagnose.
5. Please don't charge in too low temperature <-40 ºC environment, if the temperature under -20ºC~-40ºC,the charging efficiency is very low.
6. Please charge your vehicle full before you place in garage a long time.
7. Please don't exhaust your battery capacity, this will cause the battery life shorten sonly.
8. Please choose the EV power charge according the total voltage of your vehicle battery or battery brand, please inform us if you don't know more about it.
2.5 --- Extensive knowledge
Electric vehicle batteries
Electric vehicle battery chargers come in a variety of brands and characteristics. Zivan, Manzanita Micro, Elcon, Quick Charge, Rossco, Brusa, Delta-Q, Kelly, Lester and Soneil are the top 10 EV chargers in 2011 according to EVAlbum.com. These chargers vary from 1 KW to 7.5 KW maximum charge rate. Some use algorithm charge curves, others use constant voltage, constant current. Some are programmable by the end user through a CAN port, some have dials for maximum voltage and amperage, some are preset to specified battery pack voltage, amp-hour and chemistry. Prices range from $400 to $4500
A 10 amp-hour battery could take 15 hours to reach a fully charged state from a fully discharged condition with a 1 amp charger as it would require roughly 1.5 times the battery's capacity.
Public EV charging stations provide 6 kW (host power of 208 to 240 VAC off a 40 amp circuit). 6 kW will recharge an EV roughly 6 times faster than 1 kW overnight charging.
Rapid charging results in even faster recharge times and is limited only by available AC power and the type of charging system.
Onboard EV chargers (change AC power to DC power to recharge the EV's pack) can be:
Isolated: they make no physical connection between the A/C electrical mains and the batteries being charged. These typically employ some form of Inductive charging. Some isolated chargers may be used in parallel. This allows for an increased charge current and reduced charging times. The battery has a maximum current rating that cannot be exceeded
Non-isolated: the battery charger has a direct electrical connection to the A/C outlet's wiring. Non-isolated chargers cannot be used in parallel.
Power Factor Correction (PFC) chargers can more closely approach the maximum current the plug can deliver, shortening charging time.
Charge stations
There is a list of public EV charging stations in the U.S.A. and worldwide.
Project Better Place is deploying a network of charging stations and subsidizing vehicle battery costs through leases and credits.
Auxiliary charger designed to fit a variety of proprietary devices
Non-contact magnetic charging
Researchers at the Korea Advanced Institute of Science and Technology (KAIST) have developed an electric transport system (called Online Electric Vehicle, OLEV) where the vehicles get their power needs from cables underneath the surface of the road via non-contact magnetic charging, (where a power source is placed underneath the road surface and power is wirelessly picked up on the vehicle itself
