Product Specifications
| Prod Model: |
EP-9505N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ports: |
≤4 |
| Firewall: |
Firewall |
| Application: |
SOHO |
| Type: |
Wireless |
| Transfer Rate: |
150 |
Product Description

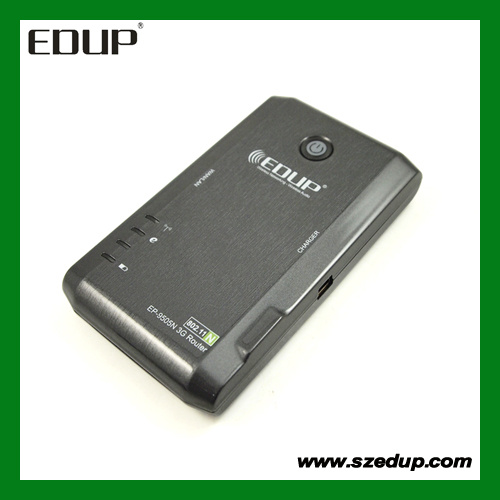

Share the freedom of 3G! The EP-9505N Wireless N Router allows users to share 3G mobile broadband connection with family and friends on the train, while camping, at the hotel, nearly anywhere with 3G coverage. By plugging a UMTS/HSPA SIM Card to the router, a Wi-Fi hotspot is instantly established.
Comprehensive 3G/ WAN Back-up Strategy
The EP-9505N stands out with its 3G/ WAN connection back-up, which keeps users online when one connection fails. 3G Router provides users with both 3G Preferred and WAN Preferred back-up modems, while other brands provide one or the other. This brings users a high degree of flexibility when setting up their networks considering connection costs and length of downtime.
Wireless N Speed & Range
Complying with the IEEE 802.11n standard, the EP-9505N can establish a wireless network with transmission speeds of up to 150Mbps, while mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, users can easily pick up their wireless network's signal at longer distances from the router, where with legacy 11g products they would have to be much closer.
WPA / WPA2 Encryptions -Advanced Security
In order to safeguard user Wi-Fi networks, WEP encryption is no longer strong enough. EP-9505N provides WPA/WPA2 encryptions (Both Personal and Enterprise), created by the WI-FI Alliance, promoting interpretabilities and security for WLAN, to protect against almost any threat that the Internet or intruders may harbor
Package
1)Normal packages
*Inner packing: Bubble package, color boxes.
*Outer packing: Kraft carton, skinpacking (color boxes )
2)According to your requirements
Our professional service
1)One -year guarantee.
2)One stop service
3)OEM & ODM are welcome
***We have professional strict quality control department whoes aim is to make sure none of the products from our factory has quality problem. All of our products have CE approved, FCC &RoHS certificate.
with the strong belief and continuous efforts and the past many years'experience in manufacturing wireless router, wireless adapter Wireless LAN, Wireless Card and Home Plug.
EDUP will create every product with heart, and provide excellent service for our customers. Welcome your inquiry!
|
Modem |
WCDMA |
|
Standards |
IEEE 802.11b/g/n
IEEE 802.3
IEEE 802.3u |
|
Security |
WEP (64/128 bit)
WPA-PSK/WPA2-PSK
WPS(PIN/PBC)
WIFI ACL(Access Control List) Support |
|
FrequencyRange |
2.412GHz to 2.472GHz |
|
Transmitter Output Power |
802.11b (17-18dBm)
802.11g(14-15dBm)
802.11n (13-14dBm) |
|
WIFI Performance |
Over 30 WIFI Client access
Theoretical Maximum bandwidth: 150Mbps
Furthest transmission distance: 50 meter |
|
Network Application |
SPI (Stateful Packet Inspection) support
IP/MAC/port/URL/Dos attack filter
DMZ Host/NAT/NAPT support
FTP/PPTP/IPSEC/SIP/H. 323 pass-through
ALG(Application Layer Gateway) support
FTP/PPTP/IPSEC/SIP/H. 325 pass-through
DSCP/Priority queue/Bandwidth Control/WMM (Wi-Fi MultiMedia)
UPNP/IGMP Proxy/WDS(WIFI distributing system) |
|
LEDs |
Power
Wifi
Wan/Lan
Battery/Charge
Intenet |
|
Button |
POWER
WPS/Reset |
|
Power Adapter |
Mini USB 5V/1.5A |
|
Battery |
3.7V, 1500mAh |
|
Operating Temperature |
0-50 |
|
Operating Humidity |
10%-90% non-condensing |
|
Dimensions |
65.3*113.3*16.5mm |
|
Weight |
101g |
