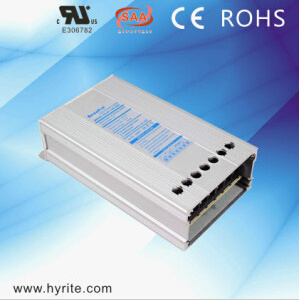

150W 12V Constant Voltage Rainproof Switching Power Supply with BISFeature of 150W Rainproof Switching Power Supply with BIS1. High transfer efficiency.
2. Compact size, easy for installation.
3. Special heat dissipation design with aluminium housing and hot start ventilating fan.
4. Safety design with separated line input power cord and low voltage output terminals, preventing electrical shock.
Application of 150W Rainproof Switching Power Supply with BISLED Signage
LED Architectural Lighting
LED Industrial Lighting
LED Sports Lighting
LED Cobra Head Lighting
Specification of 150W Rainproof Switching Power Supply with BISModel no. | RLDV-24E150C |
---|
Model series | RLDV |
---|
Input voltage | 180-250 VAC 50/60 Hz |
---|
Power | 150 W max |
---|
Output type | Constant voltage |
---|
Power factor | Low |
---|
Efficiency | >78% |
---|
AC inrush current(max.) | Cold start, 40A@230VAC |
---|
Output voltage | 24 VDC ± 5% |
---|
Output current | 6.25A Max |
---|
Withstand voltage | I/P~O/P:3kVAC, 1 minute |
---|
Operating temperature | -25~40ºC |
---|
Installation | Outdoor rainproof |
---|
IP rating | IP 44 |
---|
Cooling | Free air convection |
---|
Connection input/output | Input:terminal Output: terminal(Four) |
---|
Dimensions(L*W*H) | 182*90*52 mm |
---|
Weight(kg) | 0.6000 |
---|
Packing information | 40 Pcs/ Carton, G.W 24 KG |
---|
Pictures of Rainproof Switching Power Supply with BISProject application/ Production/ Exhibition show of Rainproof Switching Power Supply with BIS
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
